Adventure – HONDA ADV-inspired Scooter
Gasoline scooter Adventure, with 2 engine sizes (150cc & 180cc) available. LED headlights, digital meter, 14-inch alloy wheel rims, studless Tire, disc/disc brakes, double rear shock absorbers, rear handrail, Large capacity storage box. Optional features: single rear shock, rear carrier, hand protectors, windshield, mechanic meter, tope box, remote control, burglar alarm, MP3 & radio, USB, etc.
Technical specifications：
| TECHNICAL SPECS SHEET OF ADVENTURE 150/ 180 | |
| ITEMS | SPECS |
| L×W×H (mm): | 1950*755*1250 |
| Wheelbase (mm): | 1350 |
| Seat height (mm): | 800 |
| Ground clearance (mm): | 140 |
| Dry Weight(kg): | 133 |
| Max loading capacity (kg): | 150 |
| Displacement (cm3): | 149; 181 |
| Fuel tank capacity (L): | 9 L |
| Fuel consumption (L/ 100km) | 3 L/ 100km |
| Tyres: | FR: 100/80-14; RR: 120/70-14 |
| Wheel rims: | Alloy |
| Engine type | 4-stroke, air-cooled, single-cylinder |
| Compression ratio: | 9.5:1 |
| Max power (kw/rpm): | 5.8Kw/ 7000rpm; 10.4kW/ 7500rpm |
| Max torque (N.m/rpm): | 9.3N.m/ 7000rpm; 17.7N.m/ 6000rpm |
| Max speed: | 80km/h; 100 km/h |
| Ignition: | C.D.I |
| Brake (Front/Rear): | Disc/ Disc |
| Starting System: | Electric start/Kick start |
| Gasoline (#): | 90#UP |
| Container Loading Quantity: | SKD packing: 50 units/40’HQ |
Product advantages:

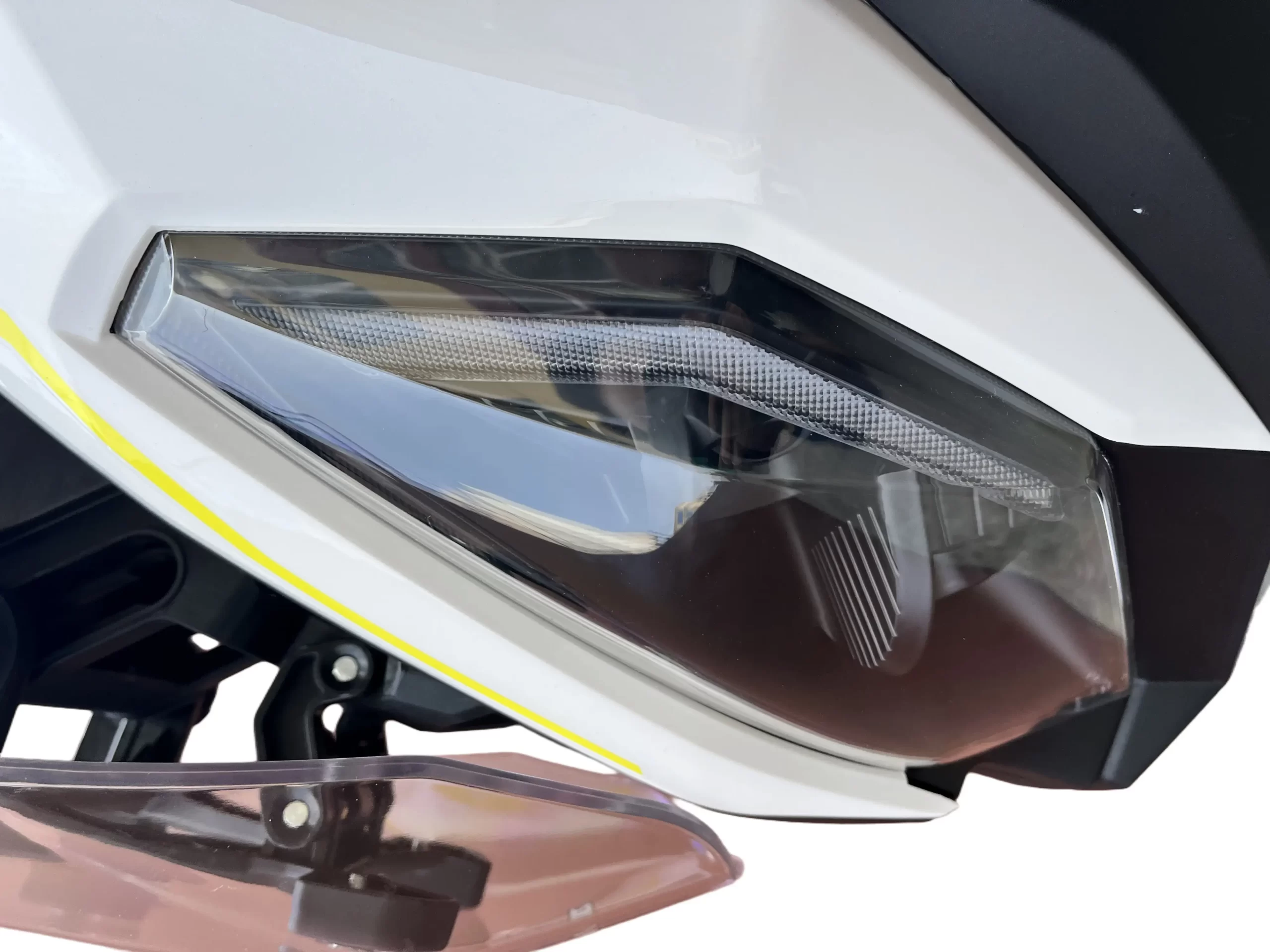

- LED headlights: Lens LED headlights is with high brightness and far projection.The illumination is more centralized, ensures the safety of riding.

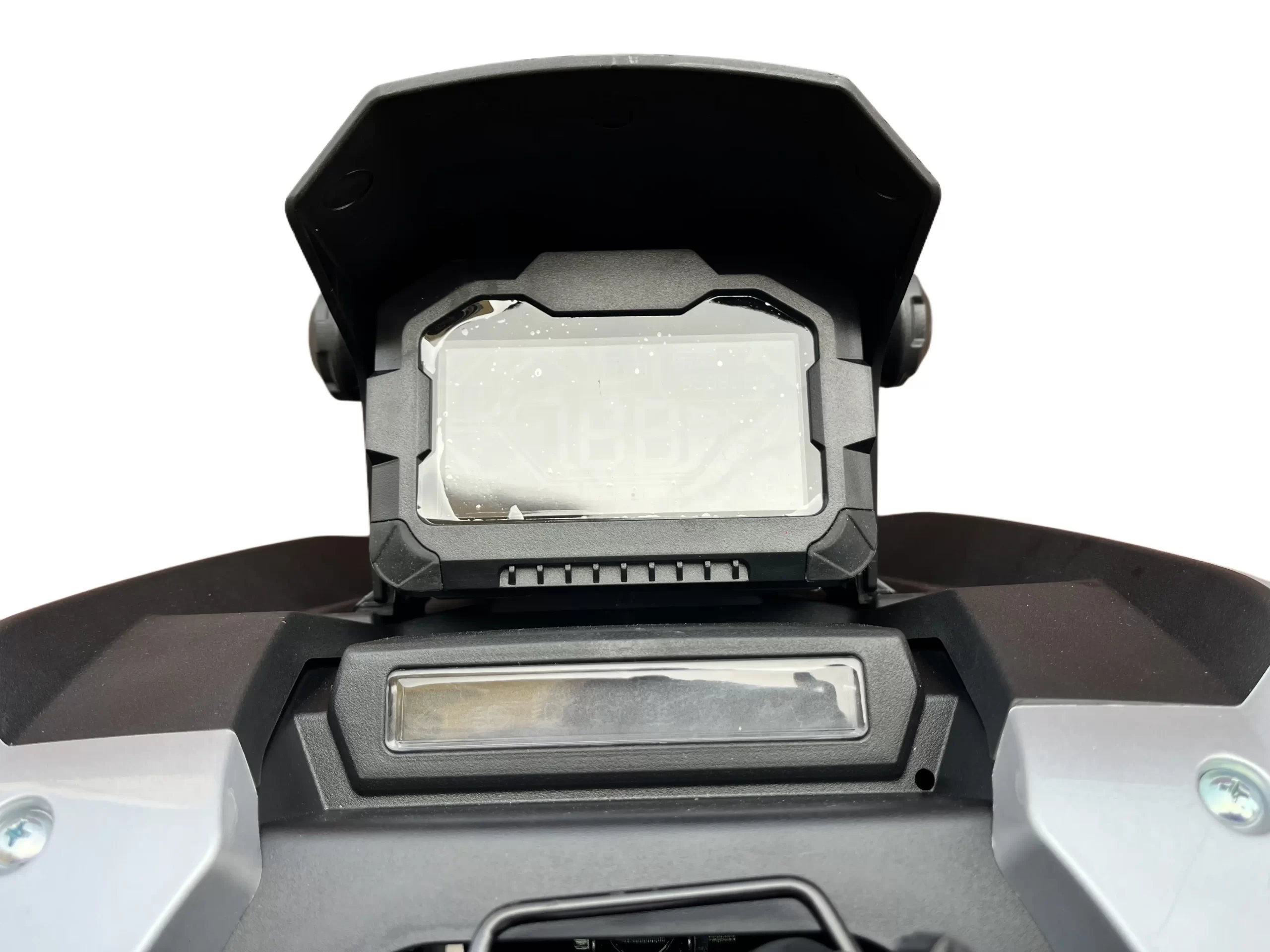

- Mechanical-digital combined speedometer: Delicate mechanical-digital combined meter shows the rider accurate riding data, the LCD dashboard displays clearly even under the strong sunshine.
- Aluminum double mufflers: The triangle-shaped double aluminum mufflers give more exquisite look and guarantee more smooth emission of the motorbike, ensuring the full power of the engine.
- The upside-down front shock absorbers: The upside-down front shock absorbers and rear nitrogen mono-shock makes you hardly feel any vibration, which greatly increases your riding comfort.

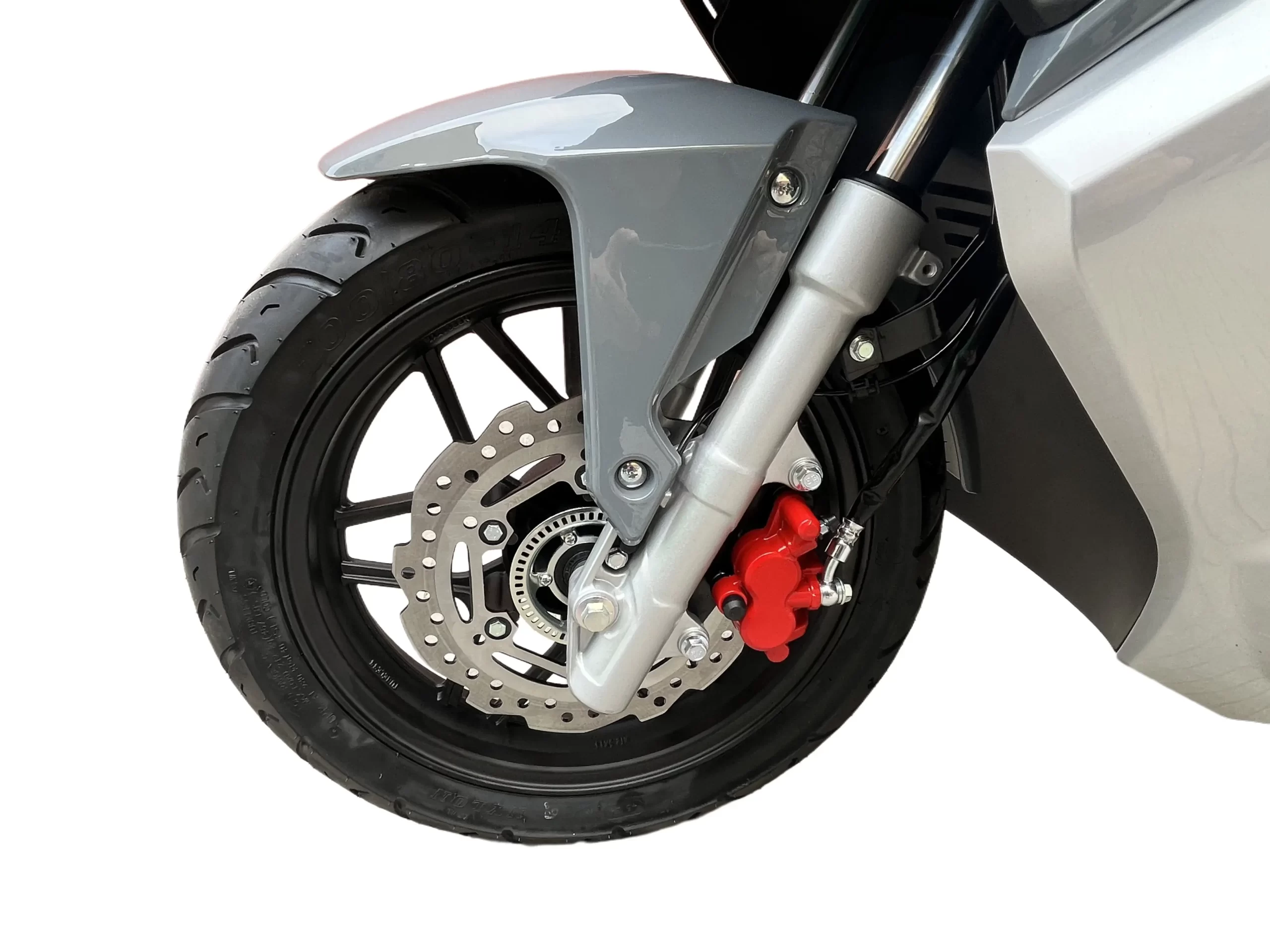

- Front and rear disc brakes: The disc/disc brakes make the braking sensitivity is higher.
- Anti-skid tire:Anti slip tires increase friction and improve grip.

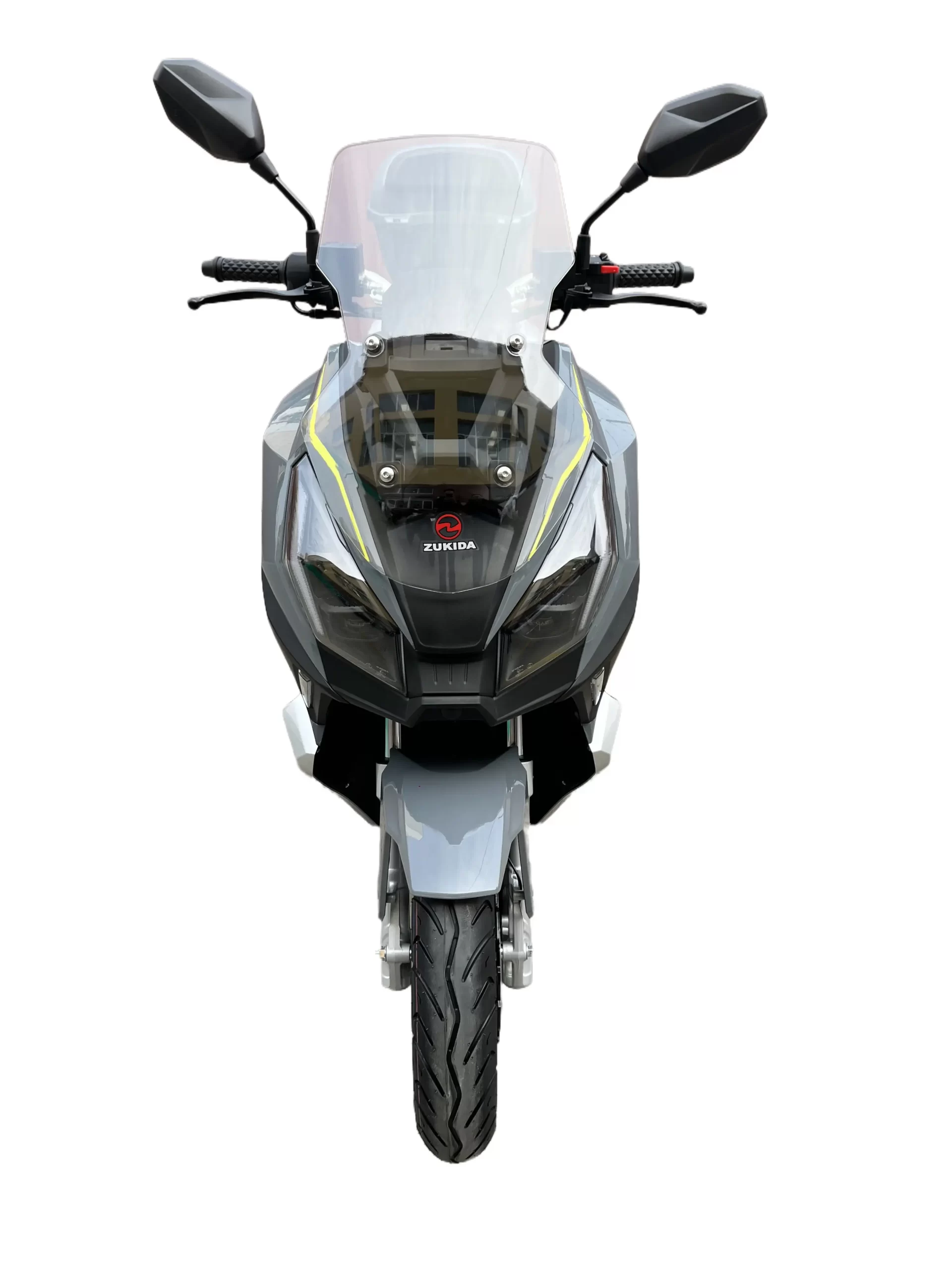

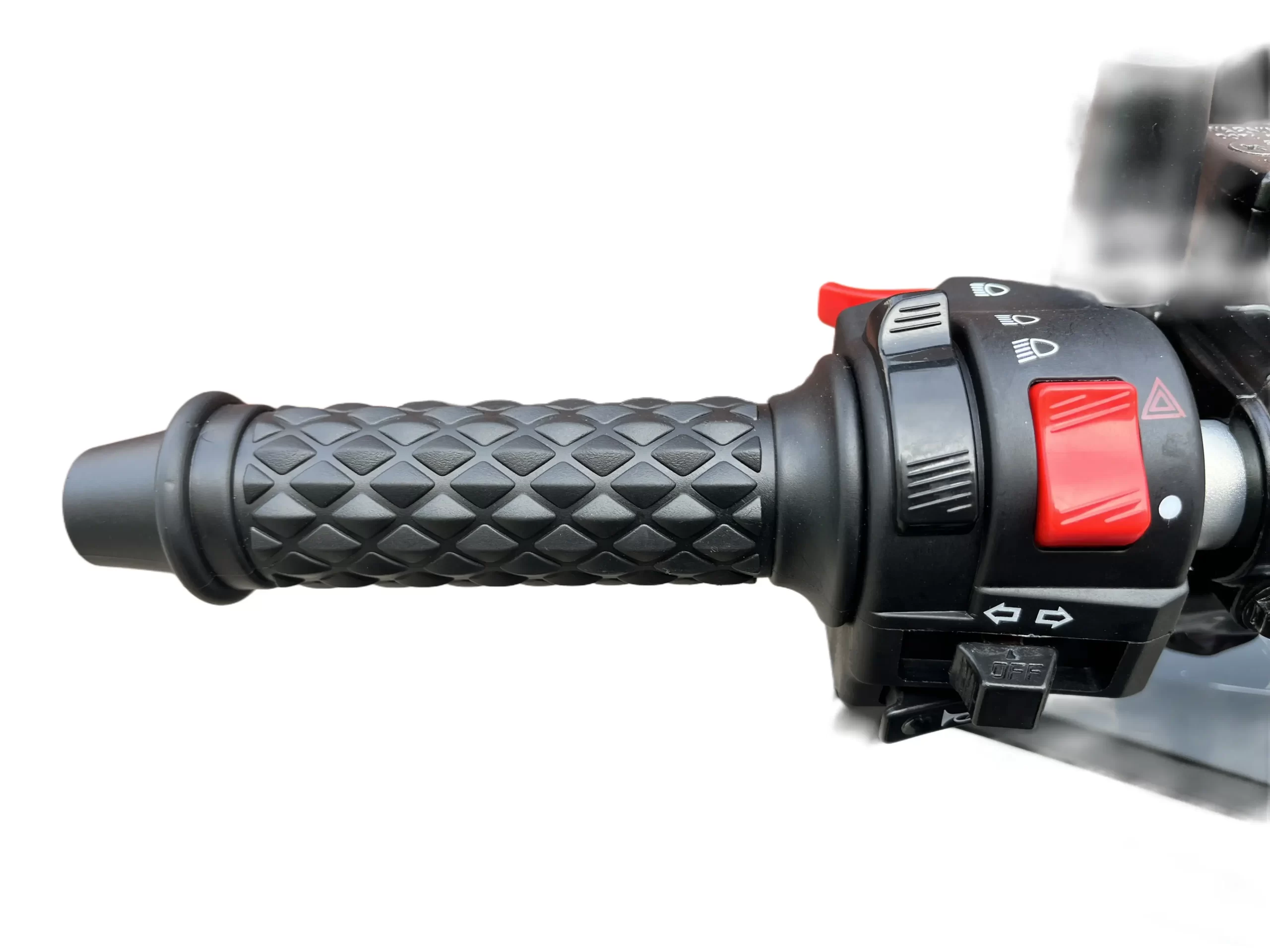

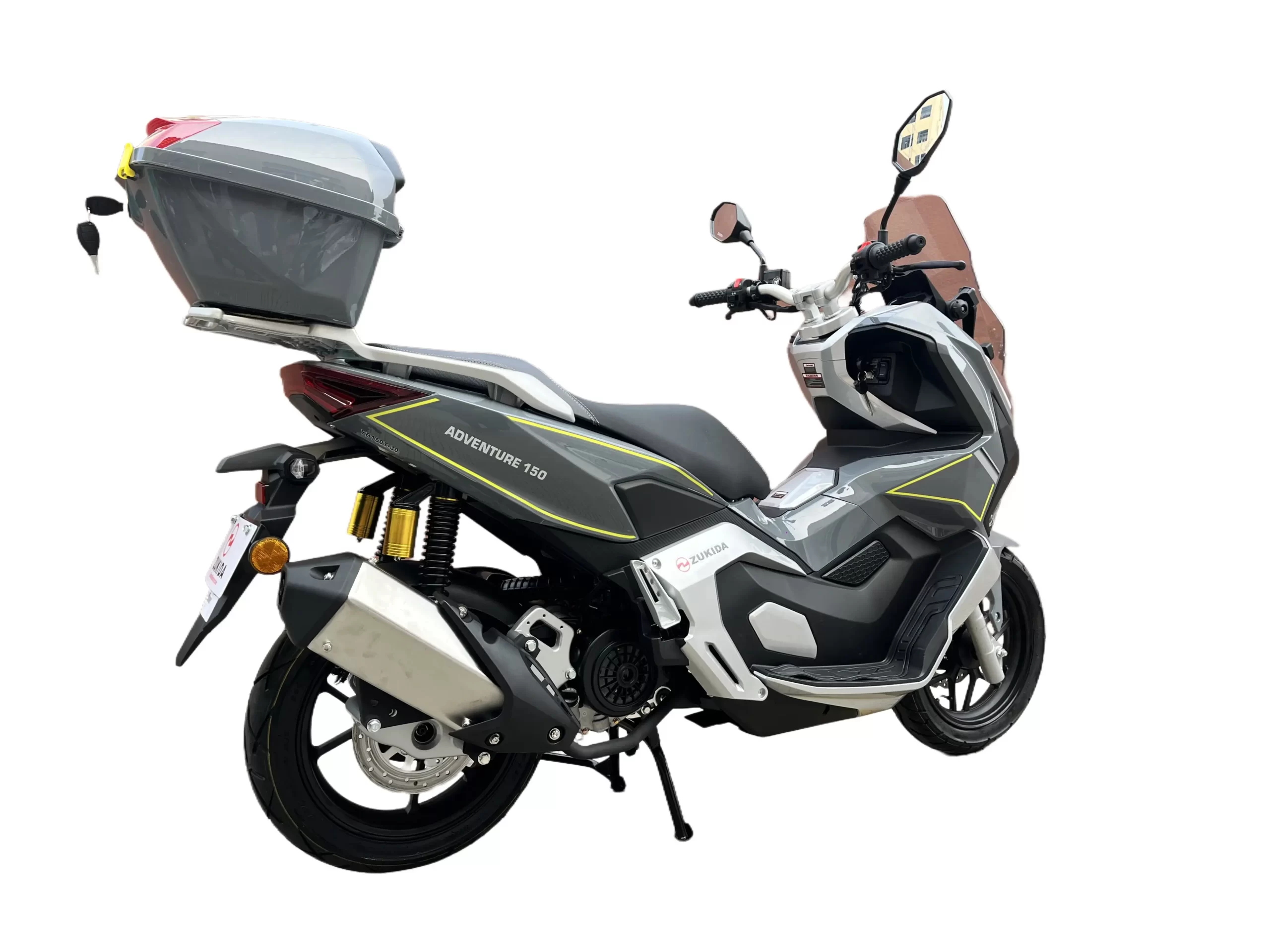

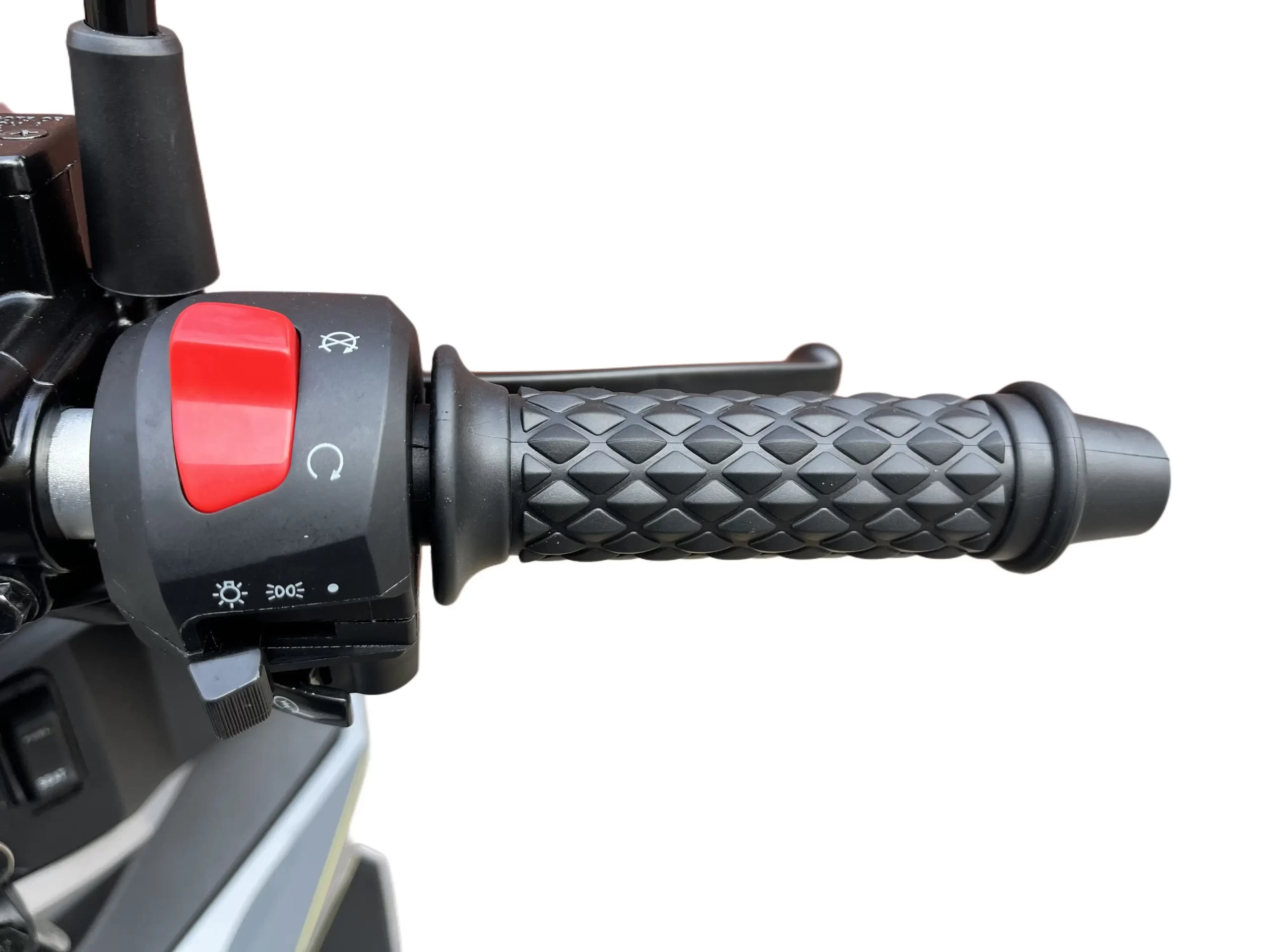

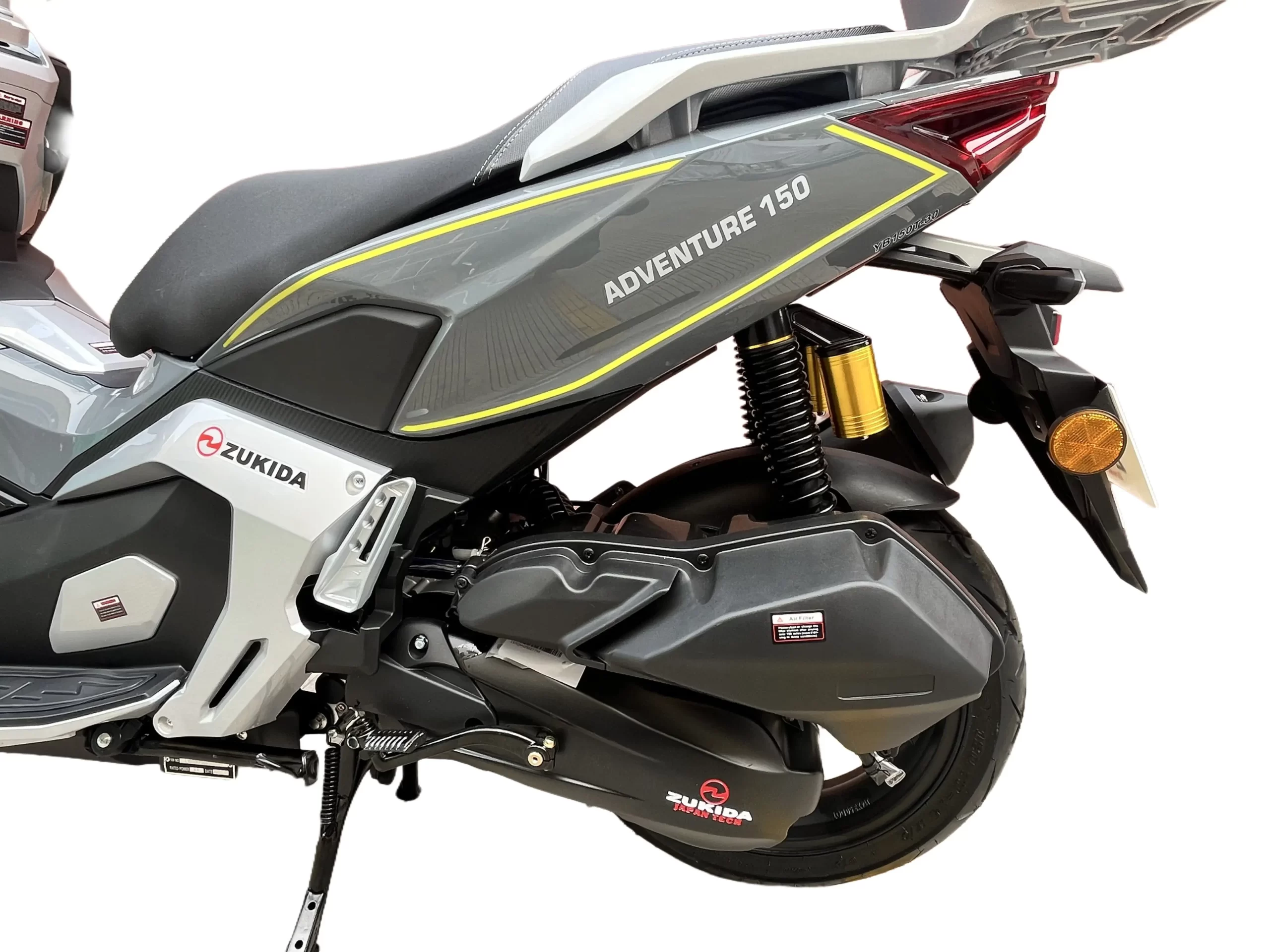

Product detailed pictures
Product detailed pictures
Our services:
- As one of the leading manufacturers and exporters of motorcycle products in South China, we engage in the research and development, manufacturing, testing and all motorcycle-related business.
- For all new models we conduct 8000km road test for reliability and durability on different road conditions for each model before launching to the market.
- All parts from top quality suppliers in China.
- 5% sampling inspection for all parts entering to our pre-assembly warehouse.
- 100% test (power, speed, lights, emission, etc.) for each batch after assembly.
- 1 year/10000km warranty for permanent parts (engine, chassis, muffler, carburetor, etc.) of all models.
- OEM/ODM services.
- Spare parts supply for all models.
F & A:
Q: What is the minimum order quantity?
A: The MOQ of this model is 96 units (1*40’HQ)
Q: What is the lead time?
A: First order – approximately 40 days after receiving deposit or confirmed irrevocable L/C;
From 2nd order — approximately 30 days after receiving deposit or confirmed irrevocable L/C.
Q: What are the Packing ways?
A: Usually we provide the following packing ways according to different requirements by buyers from different markets, customized packing ways are negotiable.
(1) SKD – 1. Steel frame + carton (96 units/40’ HQ);
- Plywood box (96 units/40’ HQ).
(2) CKD – 1. Engine in 1 carton, body parts in 1 plywood box (130 sets/40’ HQ);
- Engine in 1 carton, body parts in 1 carton (130 sets/40’ HQ).
Q: What are the Payment Terms?
A: We accept 2 payment terms:
- Full T/T— 30% deposit by T/T in advance, the balance by T/T before shipment.
- T/T + L/C— 30% deposit by T/T in advance, the balance by confirmed irrevocable L/C at sight.
