Basic commuter motorcycle AX100
Basic commuter motorcycle AX with 100cc CG engine, inspired by SUZUKI model, one of the most classical models in motorcycle industry, especially in Africa and Latin America markets. With spoke wheels, disc/drum brakes, SNS rear shock absorbers. Optional features: Normal rear shock absorbers, big carrier with footrests, MP3, etc.
Technical Parameter：
| TECHNICAL SPECS OF AX100 | ||
| Ref. No. | Items | Specs |
| 1 | Overall dimensions (L×W×H): | 2020×750×1080 (mm) |
| 2 | Wheelbase: | 1220mm |
| 3 | Ground clearance: | 140mm |
| 4 | Dry weight: | 82Kg |
| 5 | Max loading capacity: | 150Kg |
| 6 | Max speed: | ≧85Km/h |
| 7 | Brake system (FR/RR): | Drum/ drum (Disc/drum) |
| 8 | Wheel rim sizes (FR; RR): | 1.4×18; 1.6×18 |
| 9 | Tire sizes (FR; RR): | 2.50-18; 2.75-18 |

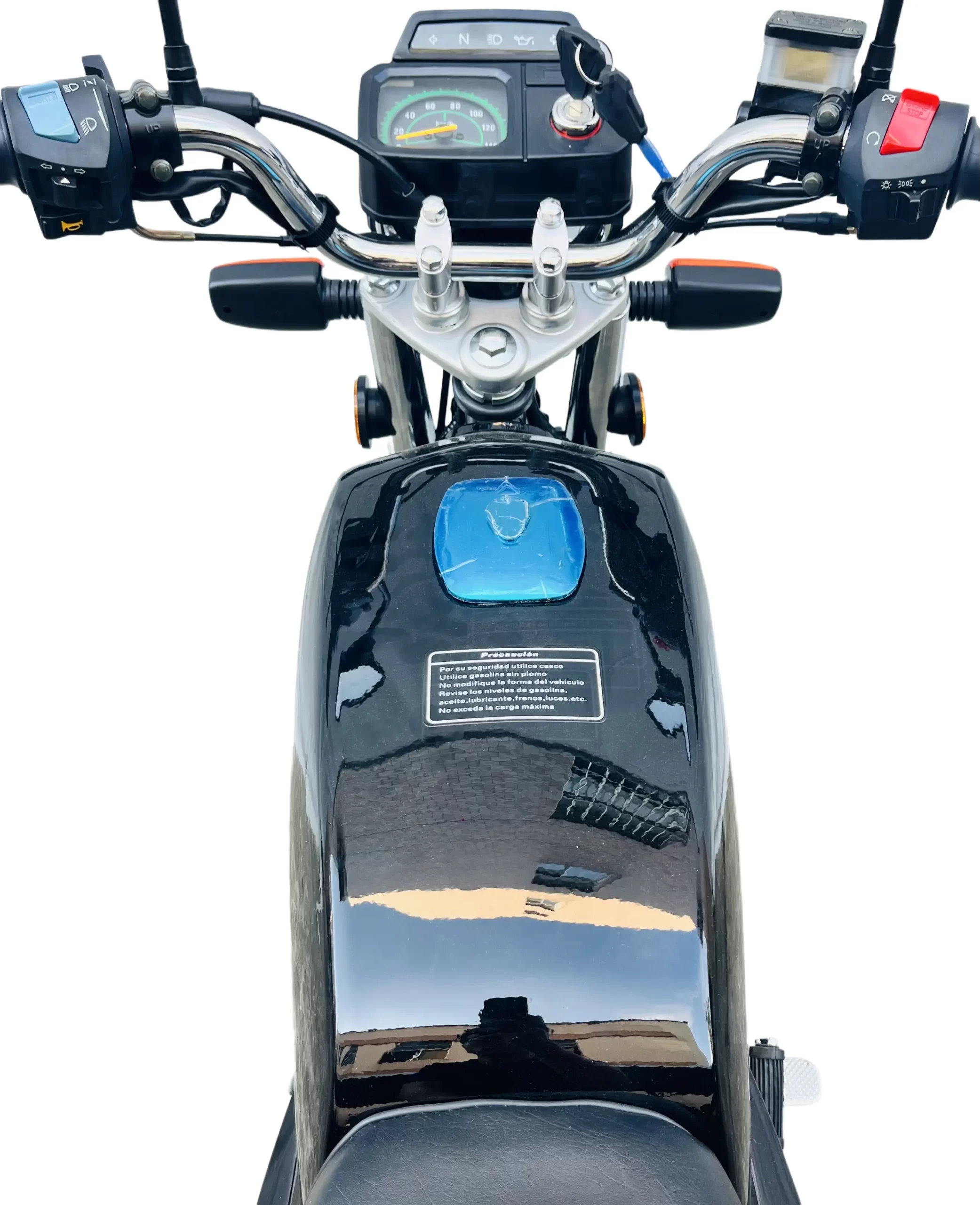

| 10 | Fuel tank capacity: | 12L |
| 11 | Displacement: | 98cc |
| 12 | Engine model: | JC1E50FMG |
| 13 | Engine type: | Single-cylinder, air-cooled, 2-stroke |
| 14 | Carburetor model: | PZ16 |
| 15 | Starting system: | Kick |
| 16 | Ignition: | CDI |
| 17 | Bore × stroke: | 50×50mm |
| 18 | Max power: | 6.8KW/7500r/min |
| 19 | Max torque: | 9.4/6500r/min |
| 20 | Engine oil model: | 10W-30/ 10W-40/ 15W-40 |
| 21 | Fuel type: | #90 or above unleaded fuel |
| 22 | Fuel consumption: | 2.2L/ 100km |
| 23 | Container loading quantity: | SKD packing: 144 units/40ft HQ (double packing) |
| CKD packing: 244 sets/ 40ft HQ | ||
Product advantages:
- Classic design: As a classic model of SUZUKI, it has a wide market base.

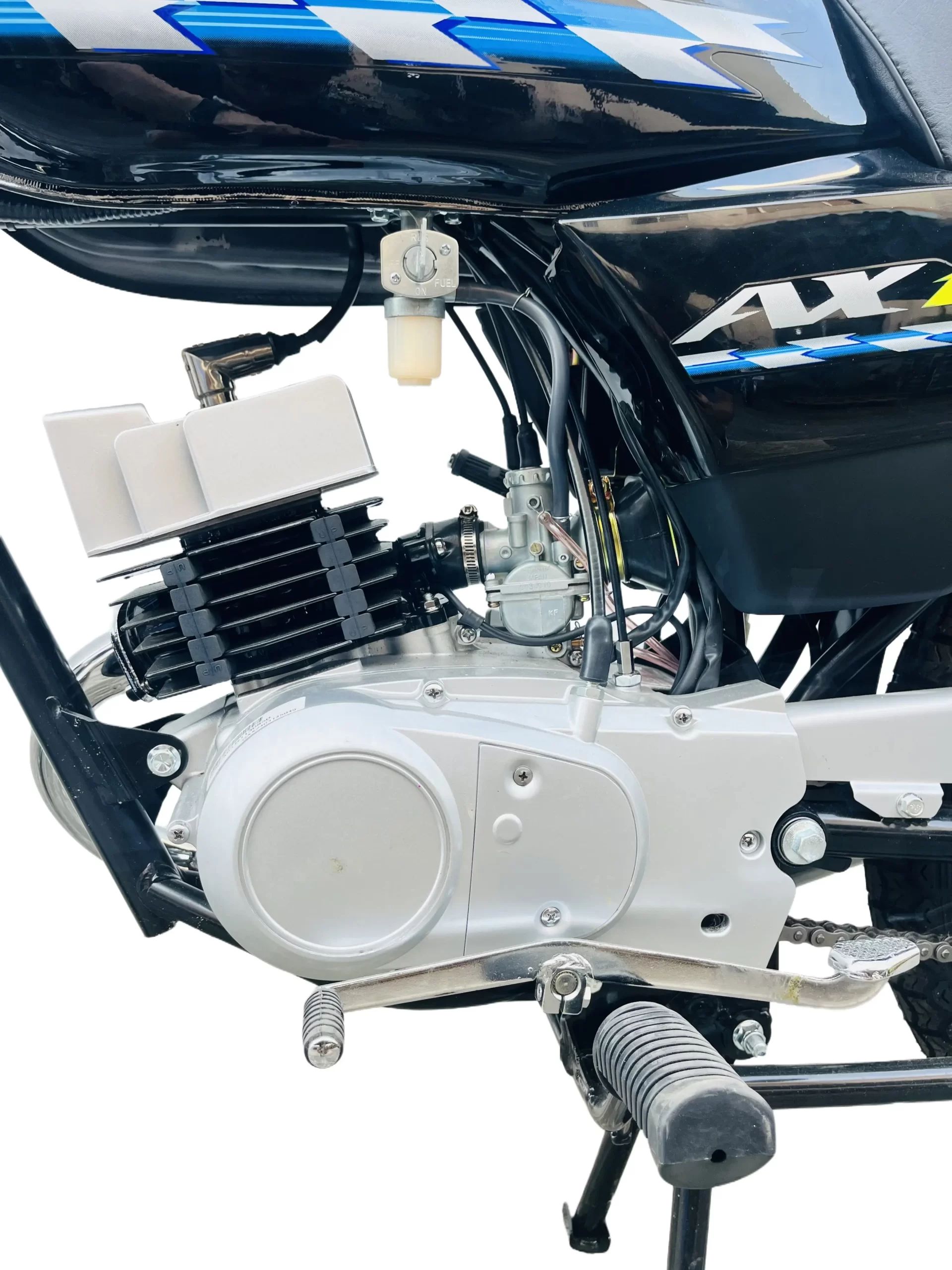

- 100cc-Stroke: The 100CC two-stroke engine offers high cost-effectiveness, which is fuel-efficient, and provides ample power.

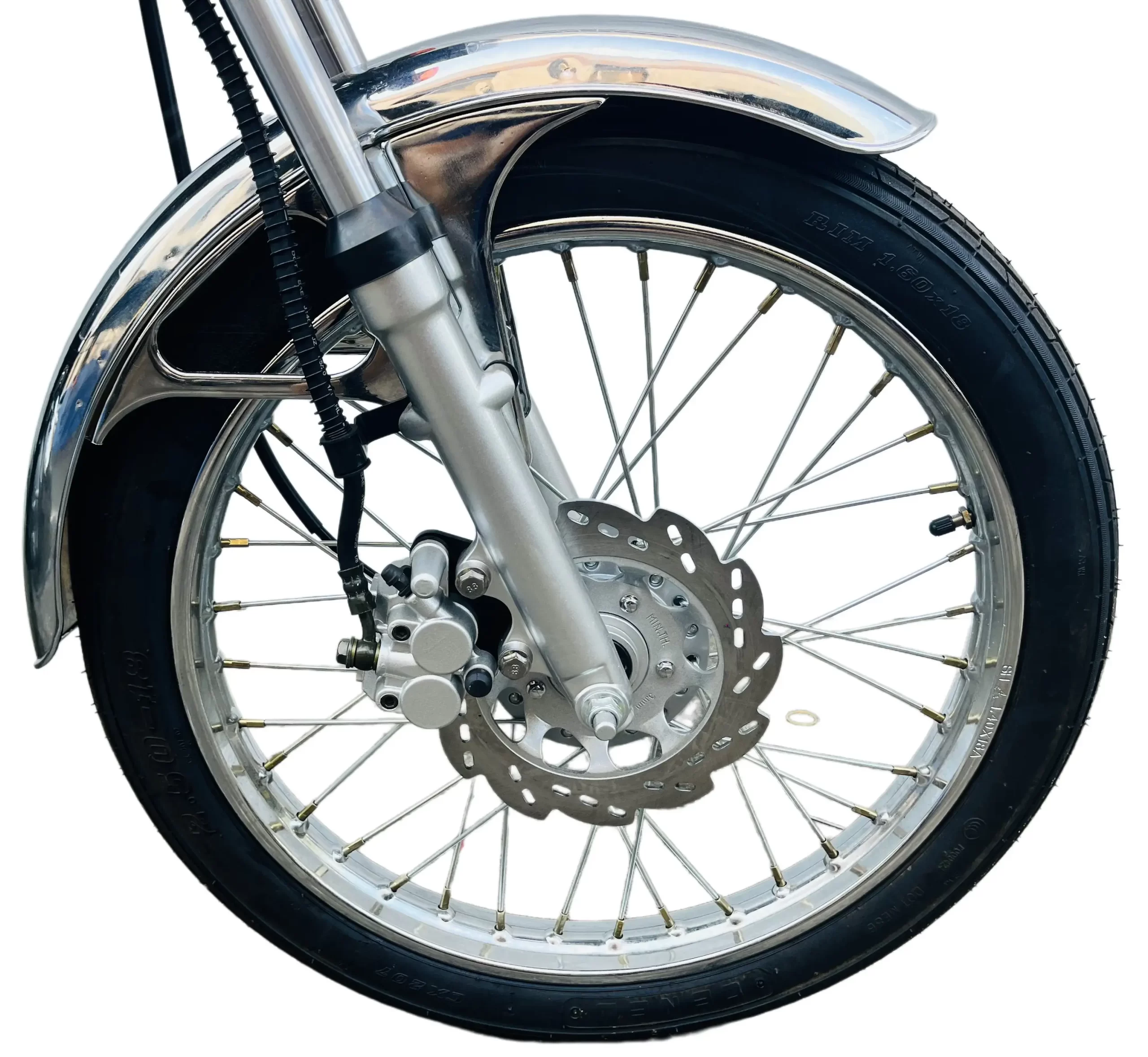

- Disc/drum brakes: Ensures the stability and security of your ride.
- Spoke wheels：The spoke wheels is more flexible and easier to maintain.
Our services:
- We are the supplier of the motorcycle, we can produce the street motorcycle with high quality at resonable price and we can customize it according to your market requirment.
- 8000km road test for reliability and durability on different road conditions for each model before launching tothe market.
- All parts from top quality suppliers in China.
- 5% sampling inspection for all parts entering to our pre-assembly warehouse.
- 100%test (power, speed, lights, emission, etc.) for each batch after assembly.
- 1 year/10000km warranty for permanent parts (engine, chassis, muffler, carburetor, etc.) of all models.
- OEM/ODM services.
- Spare parts supply for all models.

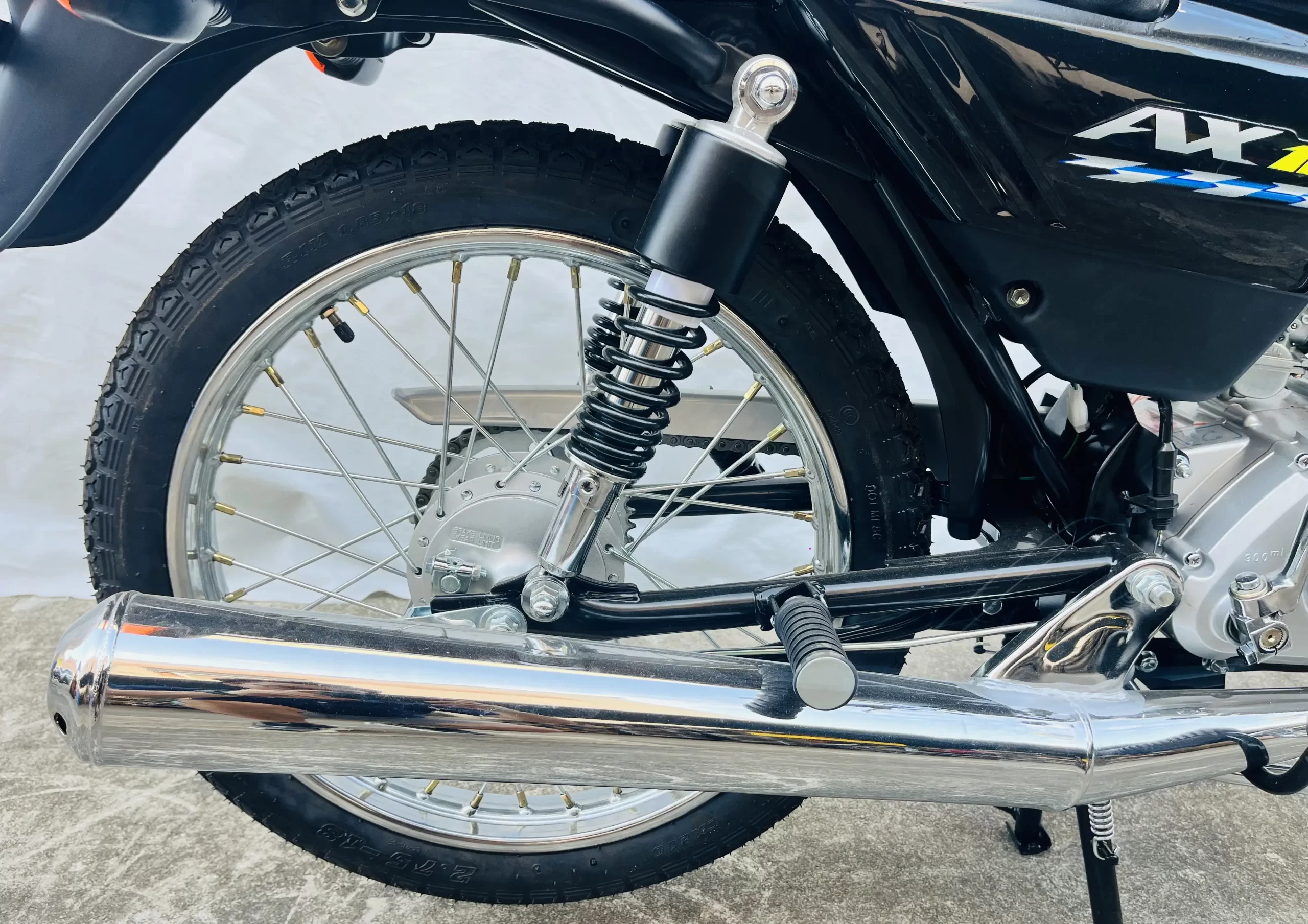

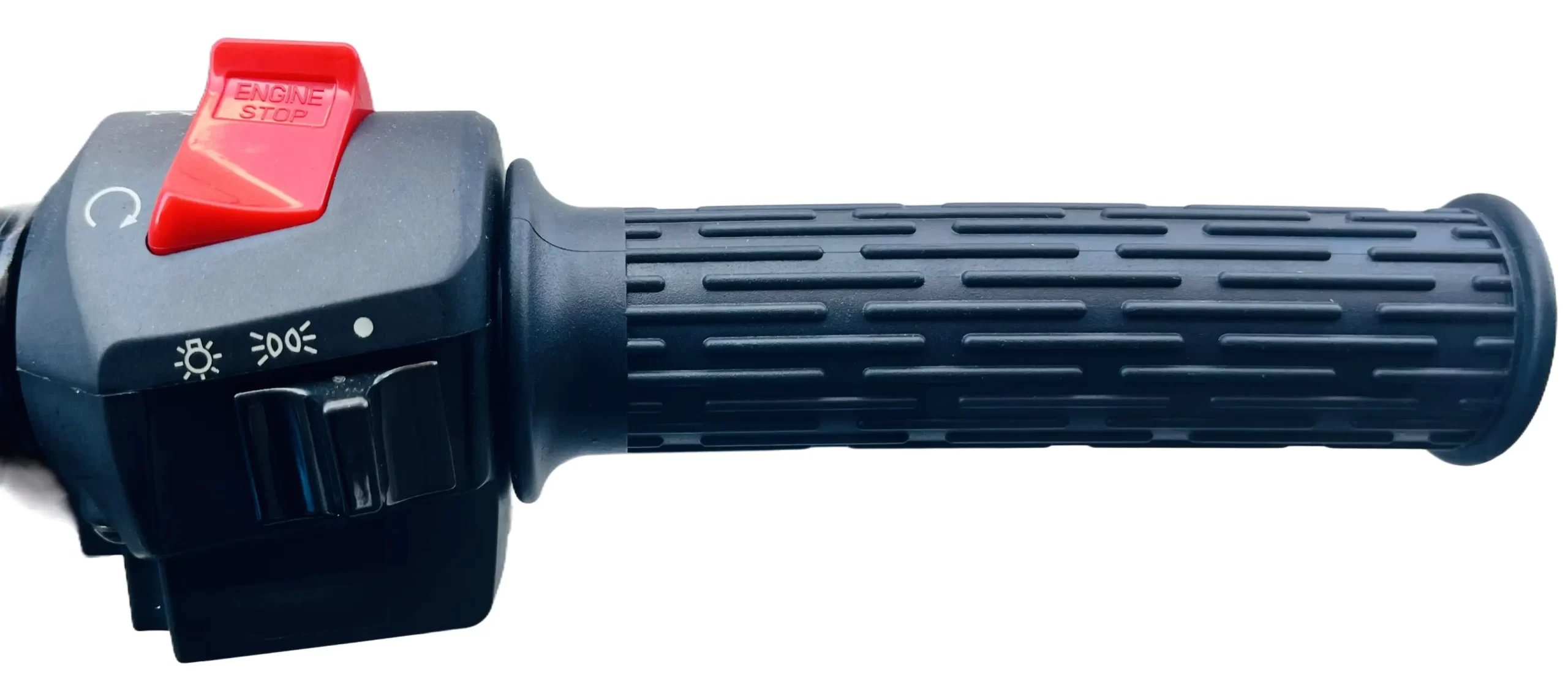

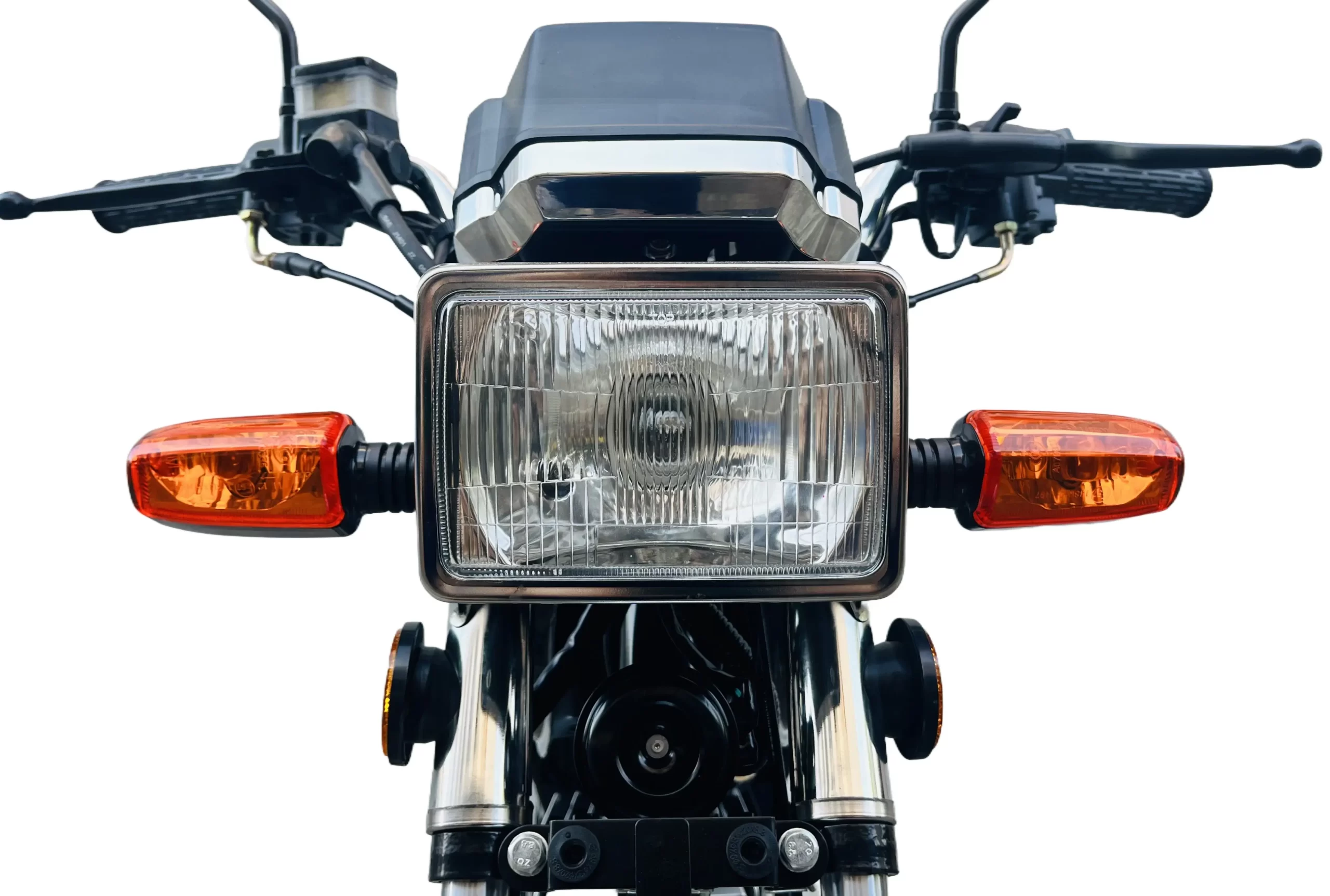

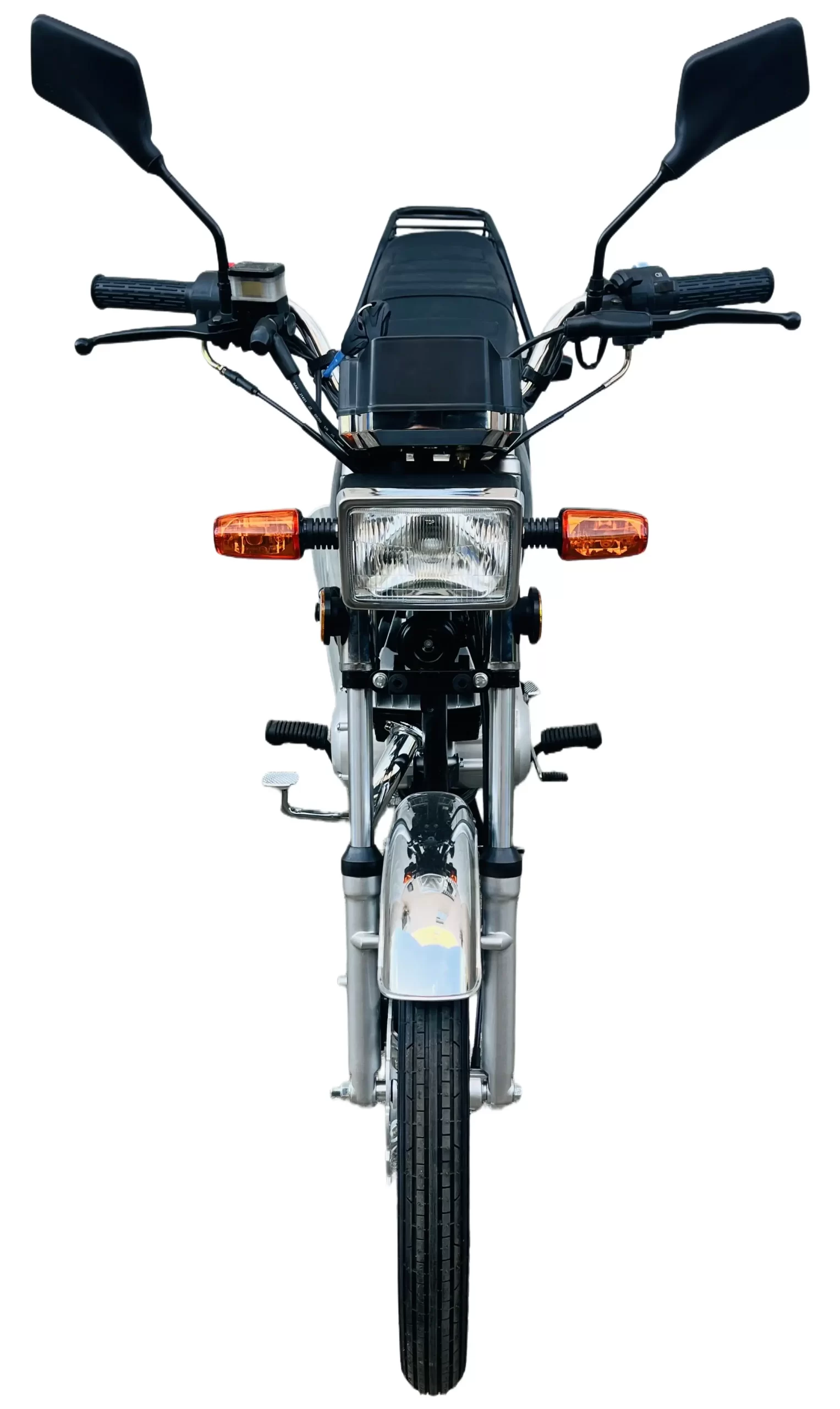

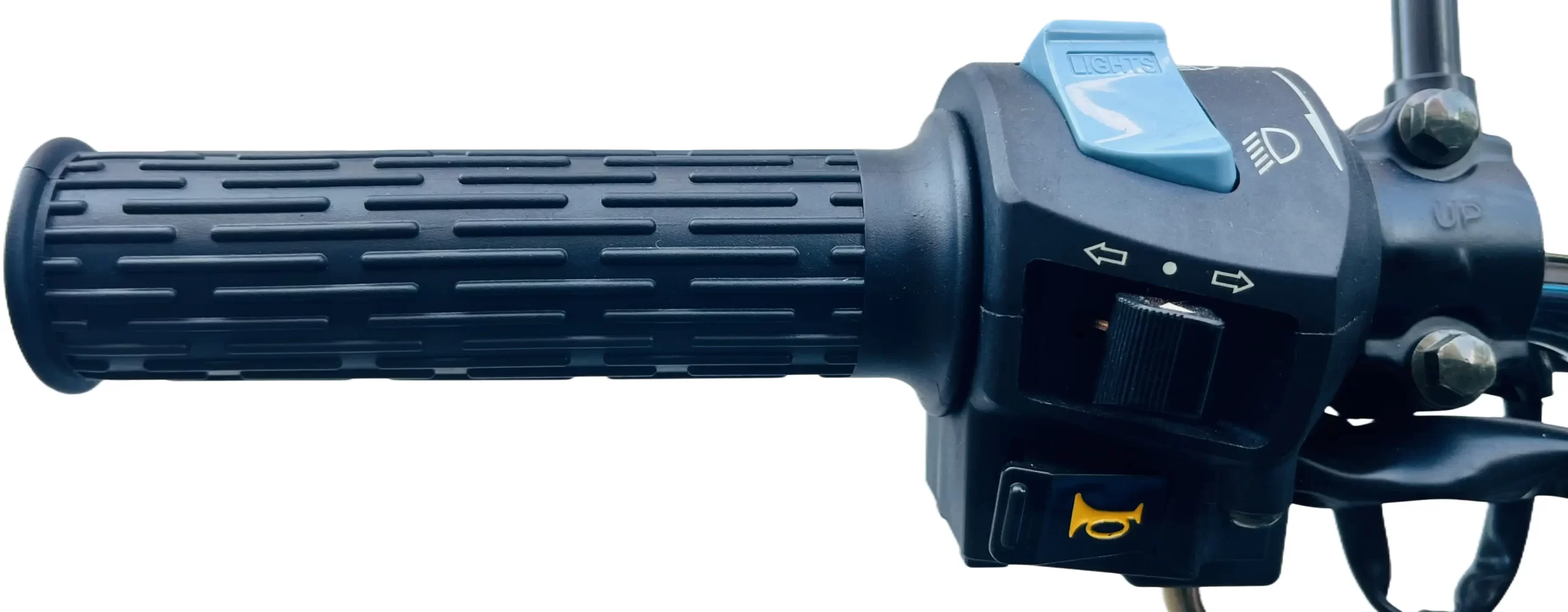

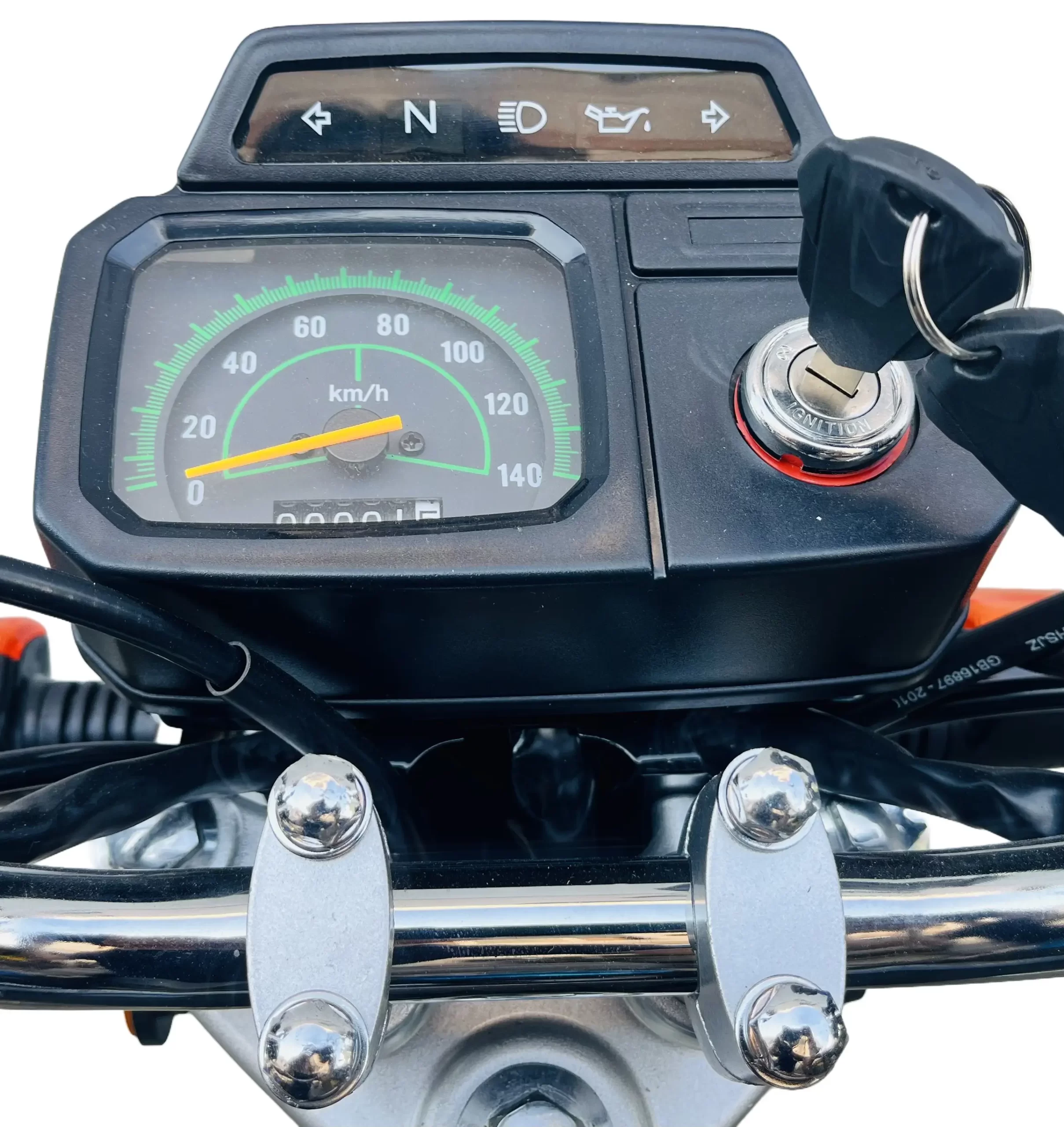

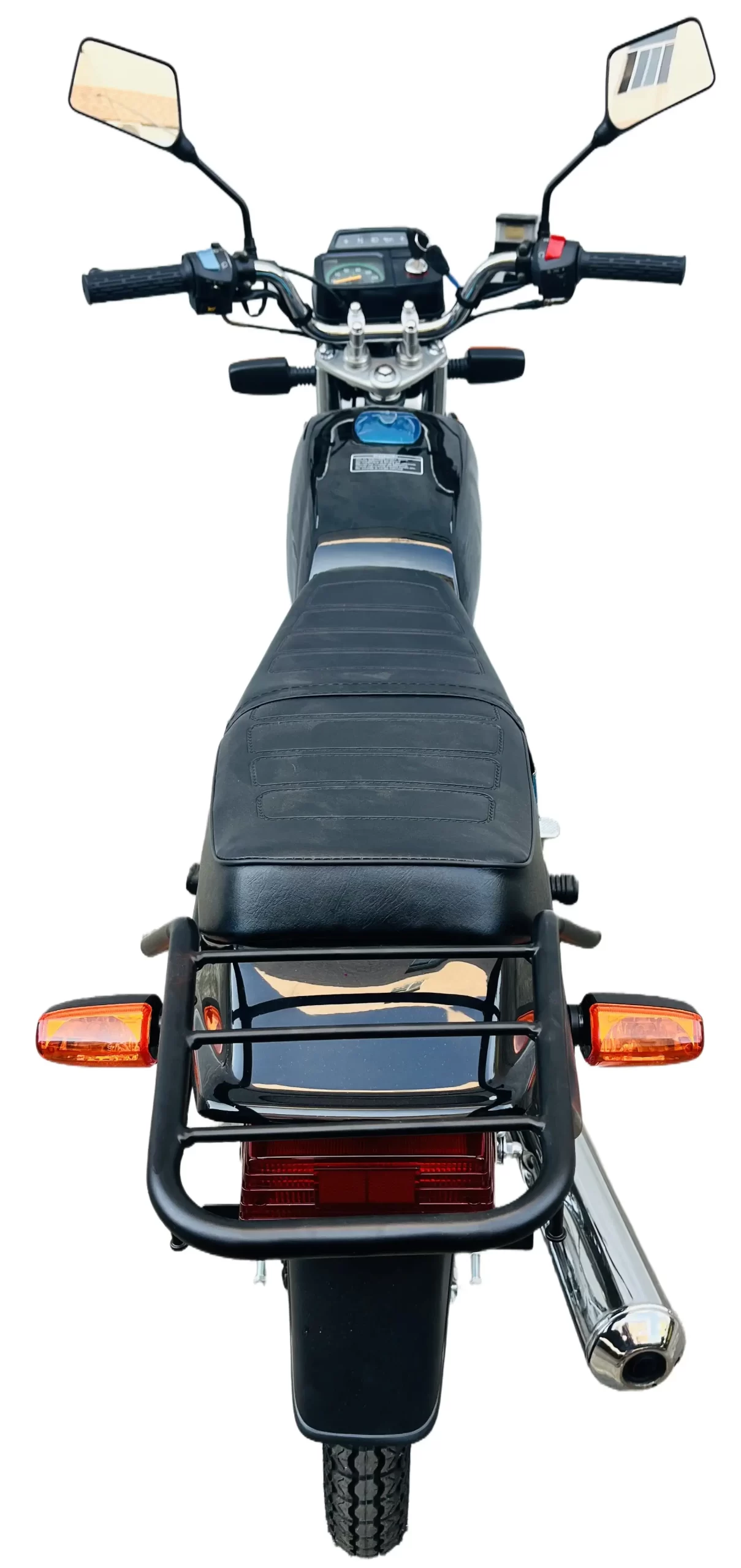

Product detailed pictures
F & A:
Q: What is the minimum order quantity?
A: The MOQ of this model is 40 units (1*20ft GP)
Q: What is the lead time?
A: First order – approximately 40 days after receiving deposit or confirmed irrevocable L/C;
From 2nd order — approximately 30 days after receiving deposit or confirmed irrevocable L/C.
Q: What are the Packing ways?
A: Usually we provide the following packing ways according to different requirements by buyers from different markets, customized packing ways are negotiable.
(1) SKD – 1. Steel frame + carton (144 units/40’ HQ);
- Plywood box (144units/40’ HQ);
(2) CKD – 1. Engine in 1 carton, body parts in 1 plywood box (244 sets/40’ HQ);
- Engine in 1 carton, body parts in 1 carton (244sets/40’ HQ)
Q: What are the Payment Terms?
A: We accept 2 payment terms:
- Full T/T— 30% deposit by T/T in advance, the balance by T/T before shipment.
- T/T + L/C— 30% deposit by T/T in advance, the balance by L/C at sight.
