Technical Parameter：

TECHNICAL SPECS OF GN125/150/200
Ref. No.	Items	Specs
1	Model	GN
2	Dimension (LWH) (mm):	2040×720×1160
3	Wheelbase (mm):	1240
4	Ground Clearance (mm):	245
5	Engine Type:	Air-cooled, single cylinder, 4-stroke
6	Displacement (cc):	124; 149; 198
7	Start Method:	Electric/Kick Start
8	Max Power (KW/rpm):	8.2KW/8500r/min;8.5KW/8500r/min;9.5KW/8500r/min
9	Max Torque (N.m/rpm):	9.6N.m/7500r/min;10.5N.m/7500r/min;13.5N.m/7500r/min;
10	Max Speed (km/h)	≧85;≧90;≧95
11	Net Weight (KG):	115
12	Max Payload Mass (KG):	150
13	Brake types (FR/RR)	Disc/ Drum
14	Tire Type (FR/RR):	2.75-18; 110/90-16
15	Ignition:	CDI
16	Fuel Tank Capacity (L):	12
17	Container Loading Capacity:	105 units/40ft HQ (SKD packing) 190 units/40ft HQ (CKD packing)

Product advantages:

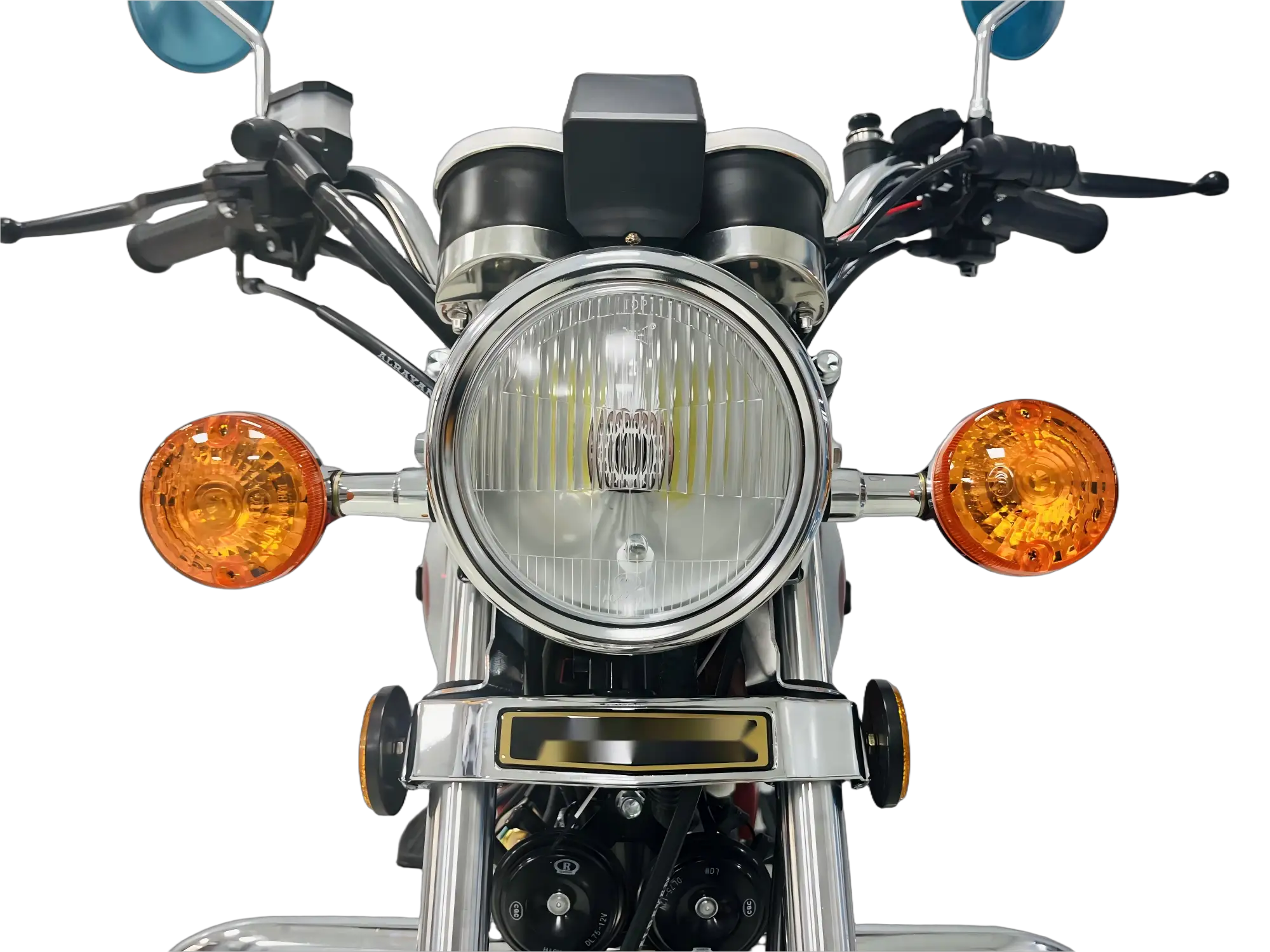

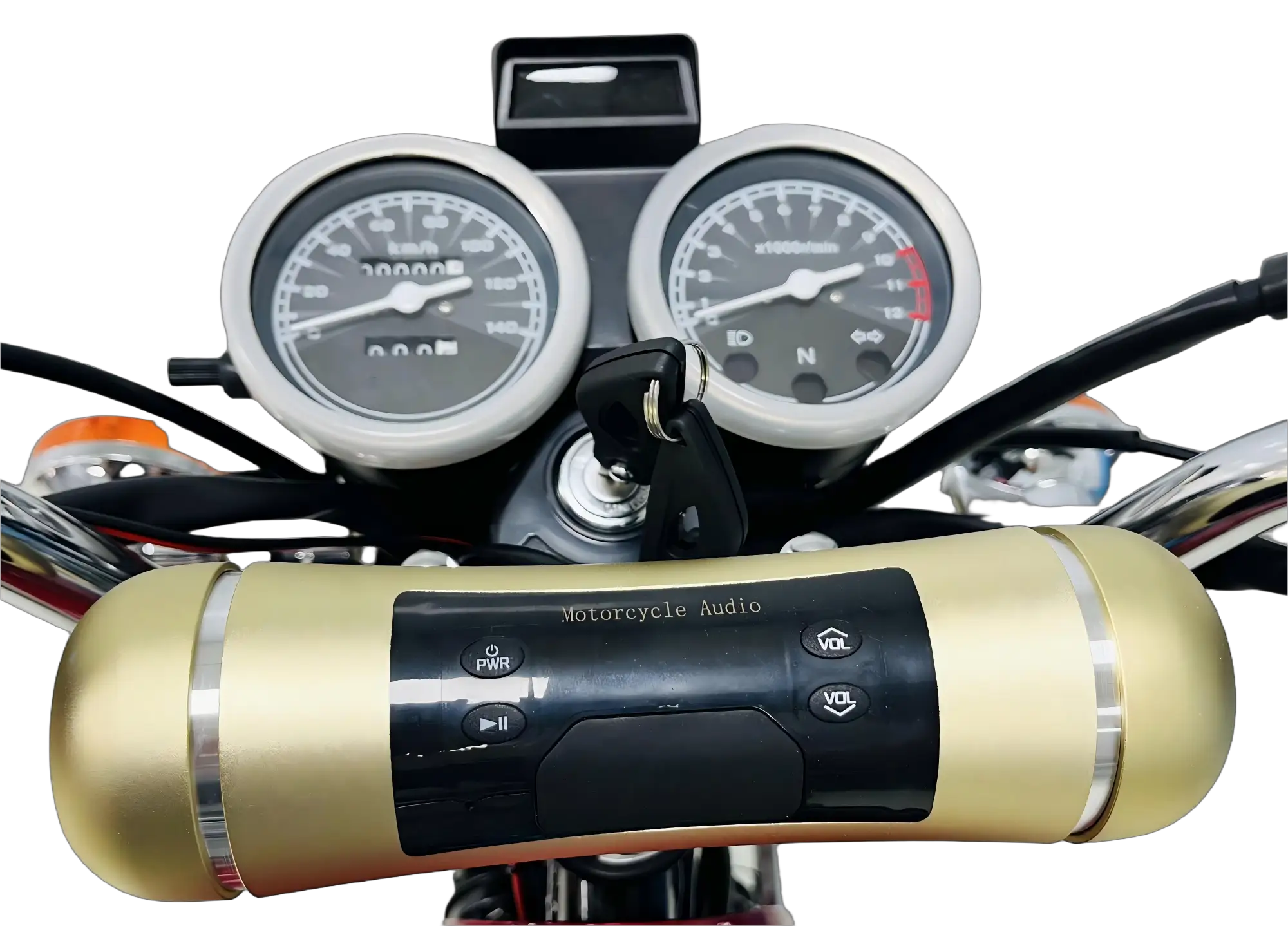

Classical original SUZUKI GN type meters and lights: Favorite of SUZUKI fans.
Reliable Disc Brakes: Quality disc brakes on both the front and rear wheels measure 276mm and 240mm respectively, ensuring strong and predictable stopping power.
Major metal parts: Makes the motorbike stronger and endurable.
Classic Cockpit:Teardrop fuel tank that’s tricked out with a chromed fuel cap and a stylized fuel gauge that blend into the cockpit’s minimalist design.

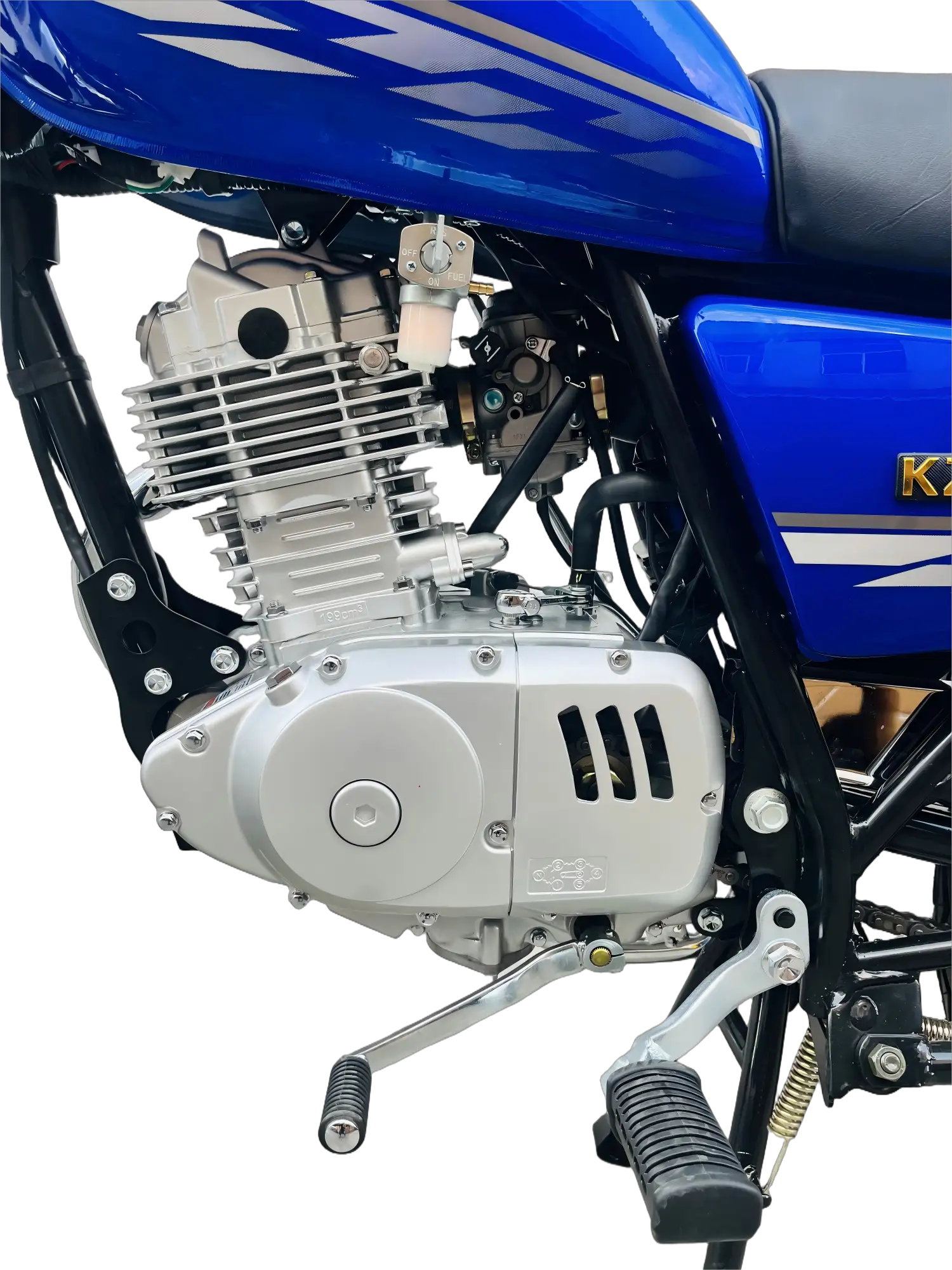

125cc 4-stroke Engine: It also offers a small displacement of 125cc,whichinspires confidence in developing riders who desire a great-looking bike without the added heft of a more powerful, high-displacement engine.
200cc 4-stroke Engine: 200cc large displacement, 4-stroke engine allows GN fans who love excitement to ride freely.

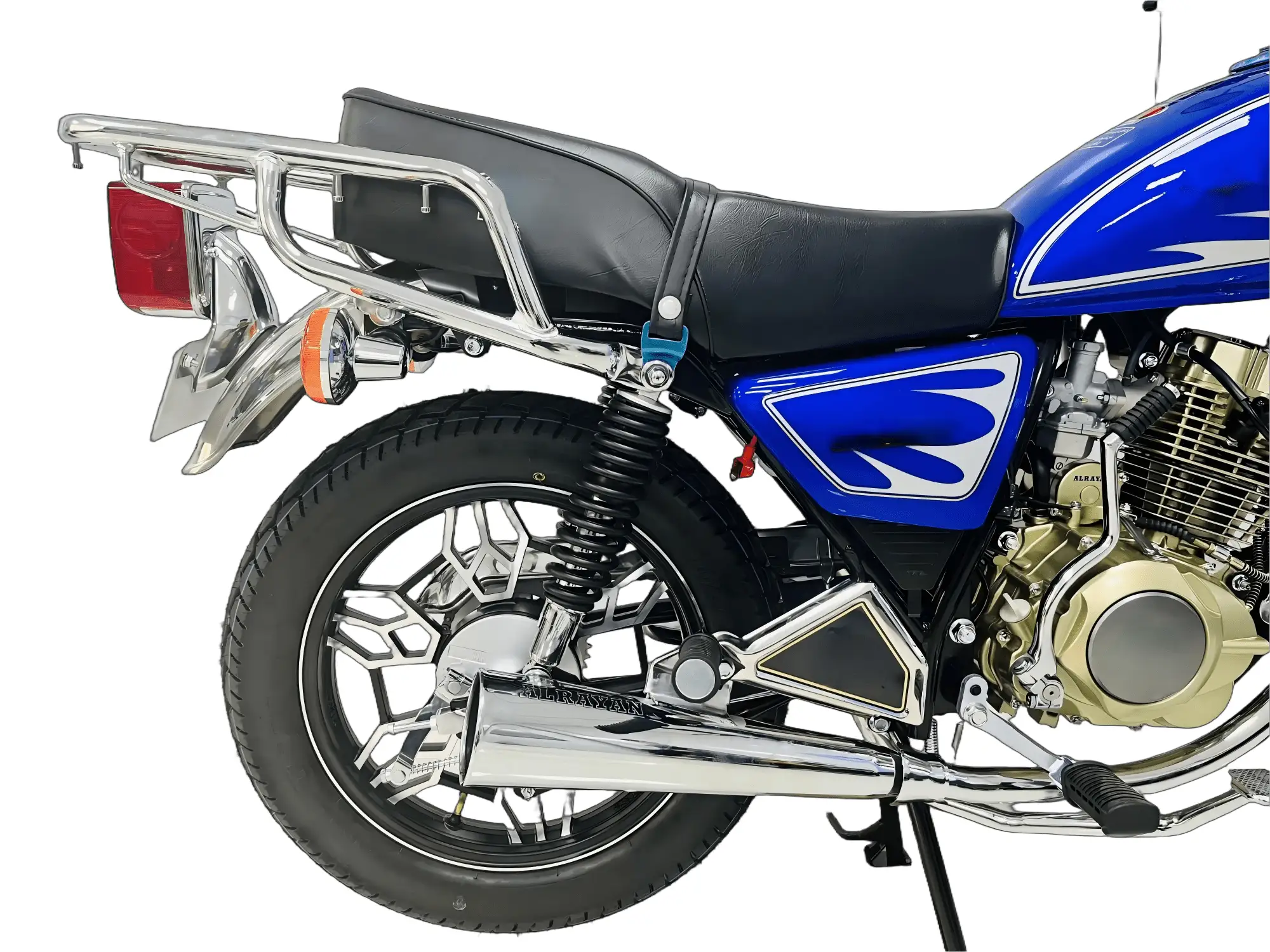

Rear Shock:Take the sting out of bumpy roads and potholes with the rear suspension with a shiny, chrome finish that matches the other silver details throughout the cruiser.

Our services:

As one of the leading manufacturers and exporters of motorcycle products in South China, we engage in the research and development, manufacturing, testing and all motorcycle-related business.
For all new models we conduct 8000km road test for reliability and durability on different road conditions for each model before launching to the market.
All parts from top quality suppliers in China.
5% sampling inspection for all parts entering to our pre-assembly warehouse.
100% test (power, speed, lights, emission, etc.) for each batch after assembly.
1 year/10000km warranty for permanent parts (engine, chassis, muffler, carburetor, etc.) of all models.
OEM/ODM services.
Spare parts supply for all models.

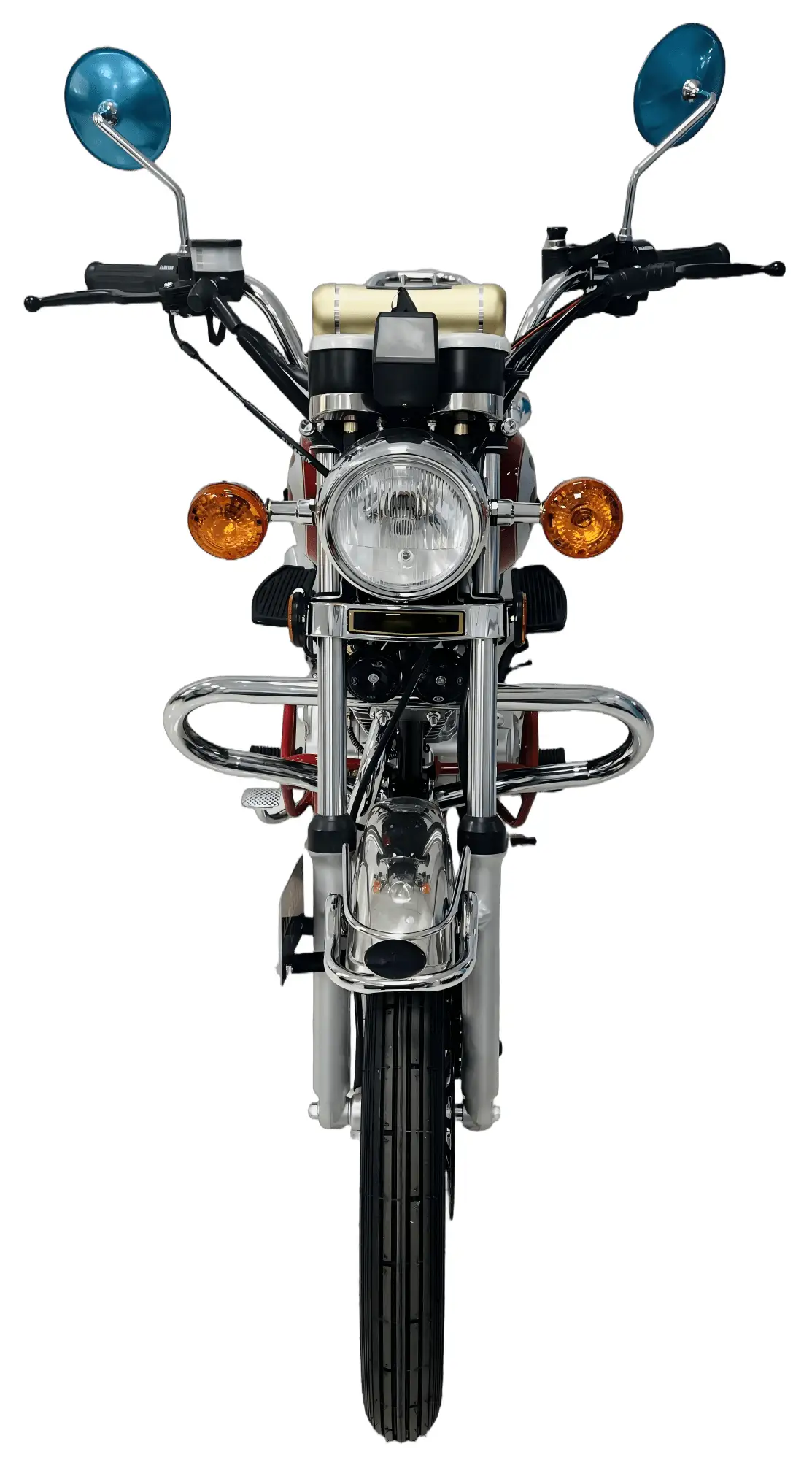

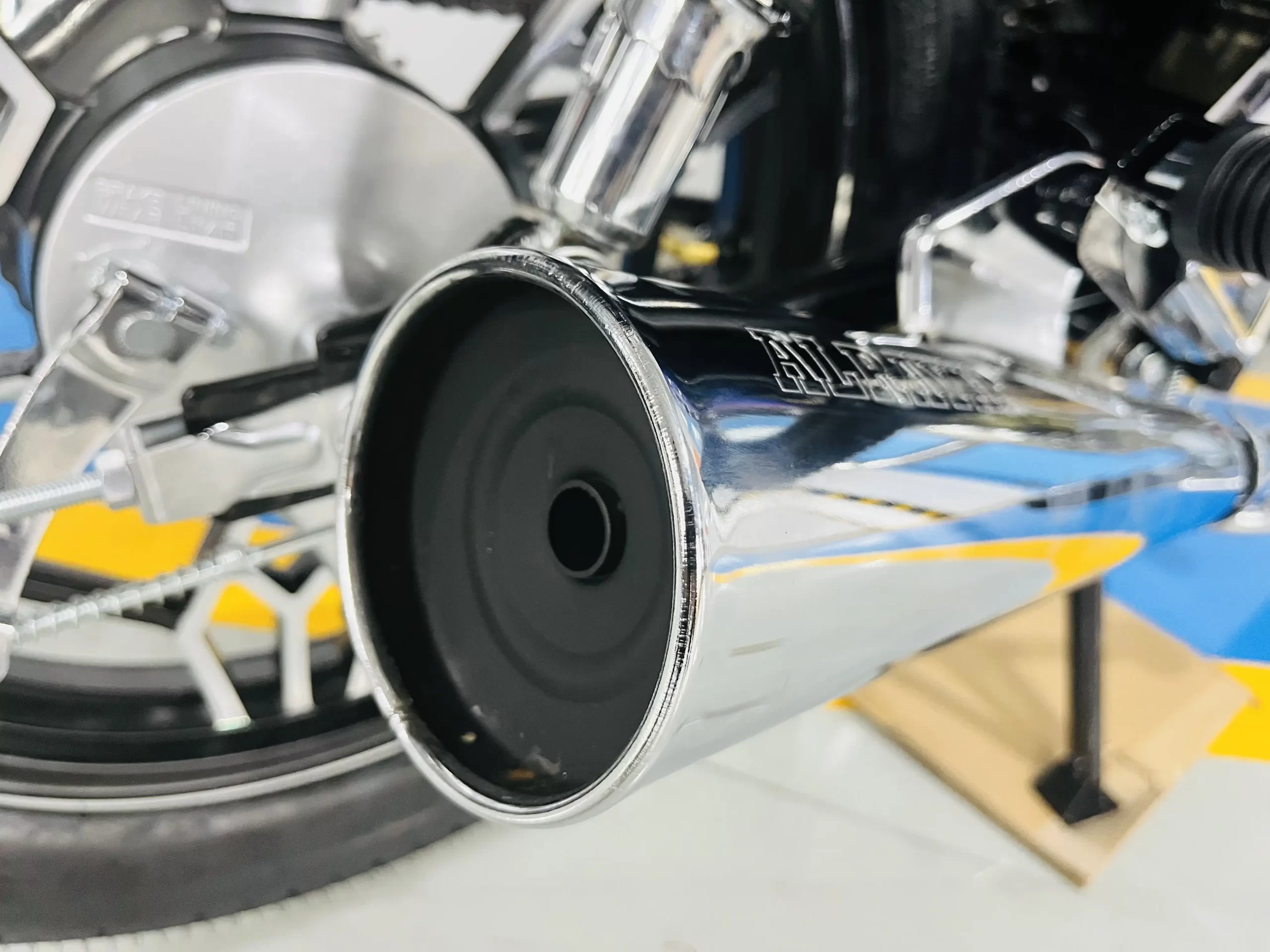

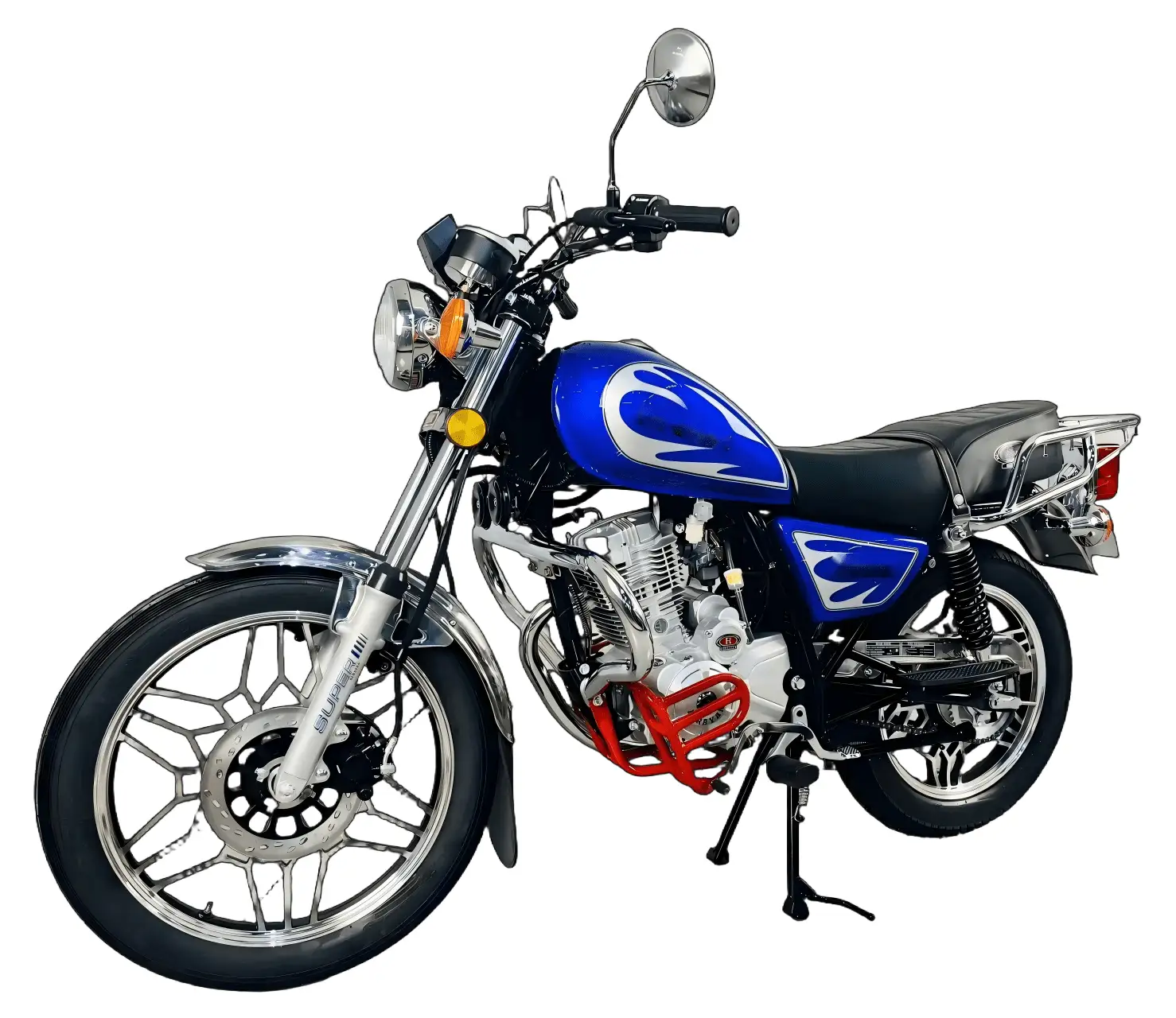

Product detailed pictures

F & A:

Q: What is the minimum order quantity?

A: The MOQ of this model is 30 units (1*20ft GP)

Q: What is the lead time?

A: First order – approximately 40 days after receiving deposit or confirmed irrevocable L/C;

From 2^nd order — approximately 30 days after receiving deposit or confirmed irrevocable L/C.

Q: What are the Packing ways?

A: Usually we provide the following packing ways according to different requirements by buyers from different markets, customized packing ways are negotiable.

(1) SKD – 1. Steel frame + carton (105 units/40’ HQ);

Plywood box (105units/40’ HQ);

(2) CKD – 1. Engine in 1 carton, body parts in 1 plywood box (190 sets/40’ HQ);

Engine in 1 carton, body parts in 1 carton (190sets/40’ HQ)

Q: What are the Payment Terms?

A: We accept 2 payment terms:

Full T/T— 30% deposit by T/T in advance, the balance by T/T before shipment.
T/T + L/C— 30% deposit by T/T in advance, the balance by confirmed irrevocable L/C at sight.
