TANK-S – YAMAHA Originated Scooter
Gasoline scooter TANK-S inspired by YAMAHA BWS model, with 3 engine sizes (125cc & 150cc & 180cc) available. Horizontal double headlights, digital meter, 13-inch alloy wheel rims, disc/disc brakes, double rear shock absorbers, rear handrail. Optional features: Rear carrier, hand protectors, windshield, mechanic meter, top box, remote control, burglar alarm, MP3 & radio, USB, etc.
Technical specifications：
| TECHNICAL SPECS OF TANK-S125/150/180 | ||
| Ref. No. | Items | Specs |
| 1 | Model | TANK-S125/150/180 |
| 2 | Dimension (L×W×H)(mm): | 1982×715×1145 |
| 3 | Wheelbase (mm): | 1375 |
| 4 | Ground Clearance (mm): | 240 |
| 5 | Engine Type: | GY6 type, air-cooled, single cylinder, 4-stroke |
| 6 | Displacement (cc): | 124cc;149cc;178cc |
| 7 | Start Method: | Electric/Kick Start |
| 8 | Max Power (KW/rpm): | 5.0KW/7000r/min;5.8KW/7000r/min;6.8KW/8000r/min; |
| 9 | Max Torque (N.m/rpm): | 8.6N.m/7000r/min;9.3N.m/7000r/min;9.6N.m/7000r/min |
| 10 | Max Speed (km/h) | ≧85;≧90;≧95; |
| 11 | Net Weight (KG): | 101 |
| 12 | Max Payload Mass (KG): | 150 |
| 13 | Brake types (FR/RR) | Disc/ Disc |
| 14 | Tire Type (FR/RR): | 130/60-13; 130/60-13 |
| 15 | Ignition: | CDI |
| 16 | Fuel Tank Capacity (L): | 6 |
| 17 | Container Loading Capacity: | 50 units/40ft HQ (SKD packing) |
Product advantages:
- YAMAHA BWS-inspired design: The design inspired by the world renowned YAMAHABWS model, makes it easier for this model to be favored by global vehicle users.
- Horizontal double LED headlights: Eye-catching LED lights add luxurious touch to the bike, and the illumination of LED lights is more centralized,which better ensures the rider’s security.
- Digital meter: Delicate digital meter shows the rider accurate riding data, the LCD dashboard displays clearly even under the strong sunshine.
- Optional 13-inch wheels: The large-sized wheels optimize the vehicle’s passability, making it more adaptable to various road conditions.
- Disc/ disc brakes: The front & rear disc brakes enhance the braking performance of the vehicle, ensuring the safety of riders.
- Optional big-size wind-shield gives the rider more protection on gravel/ sandy roads or in cold weather.

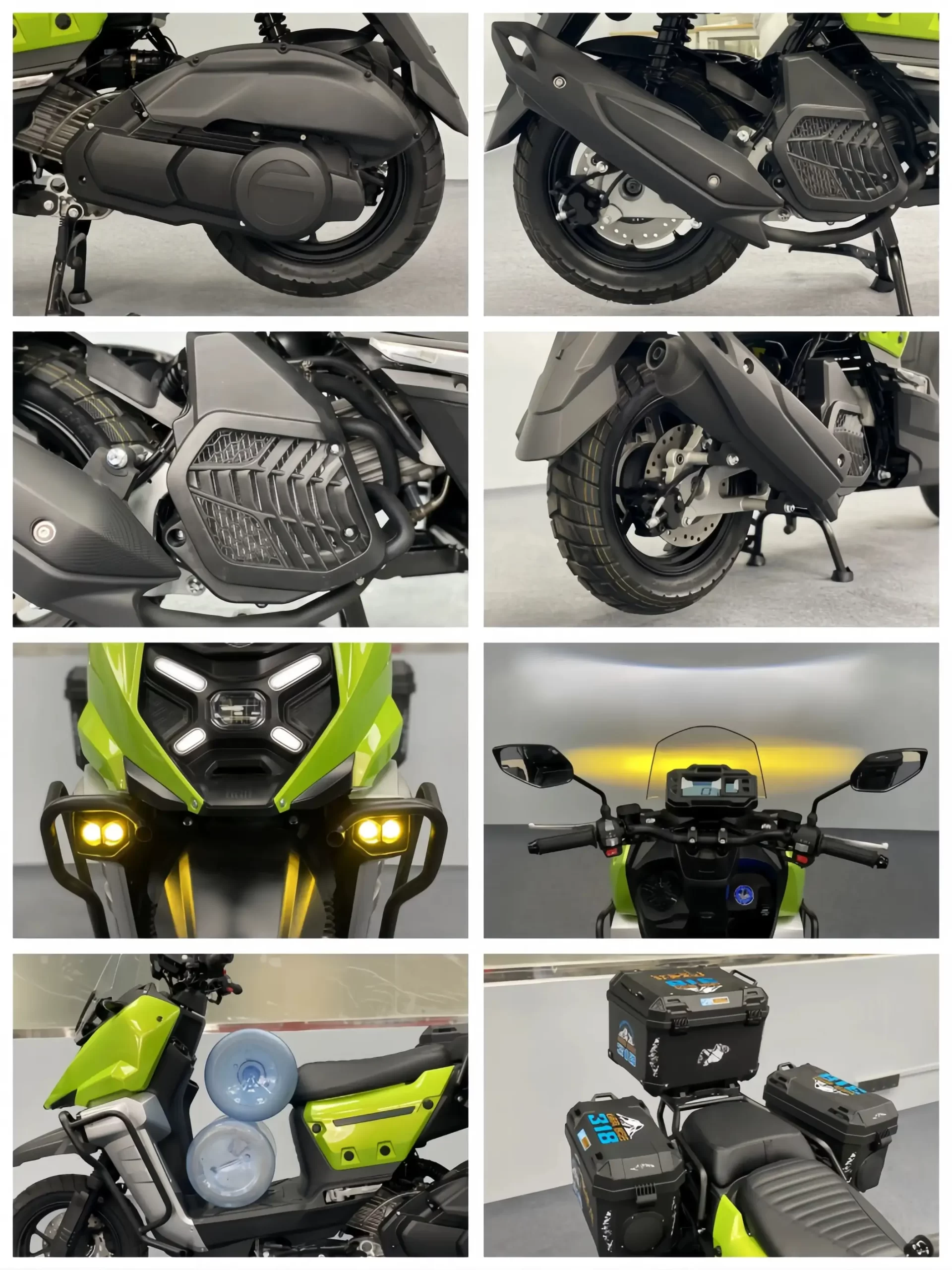

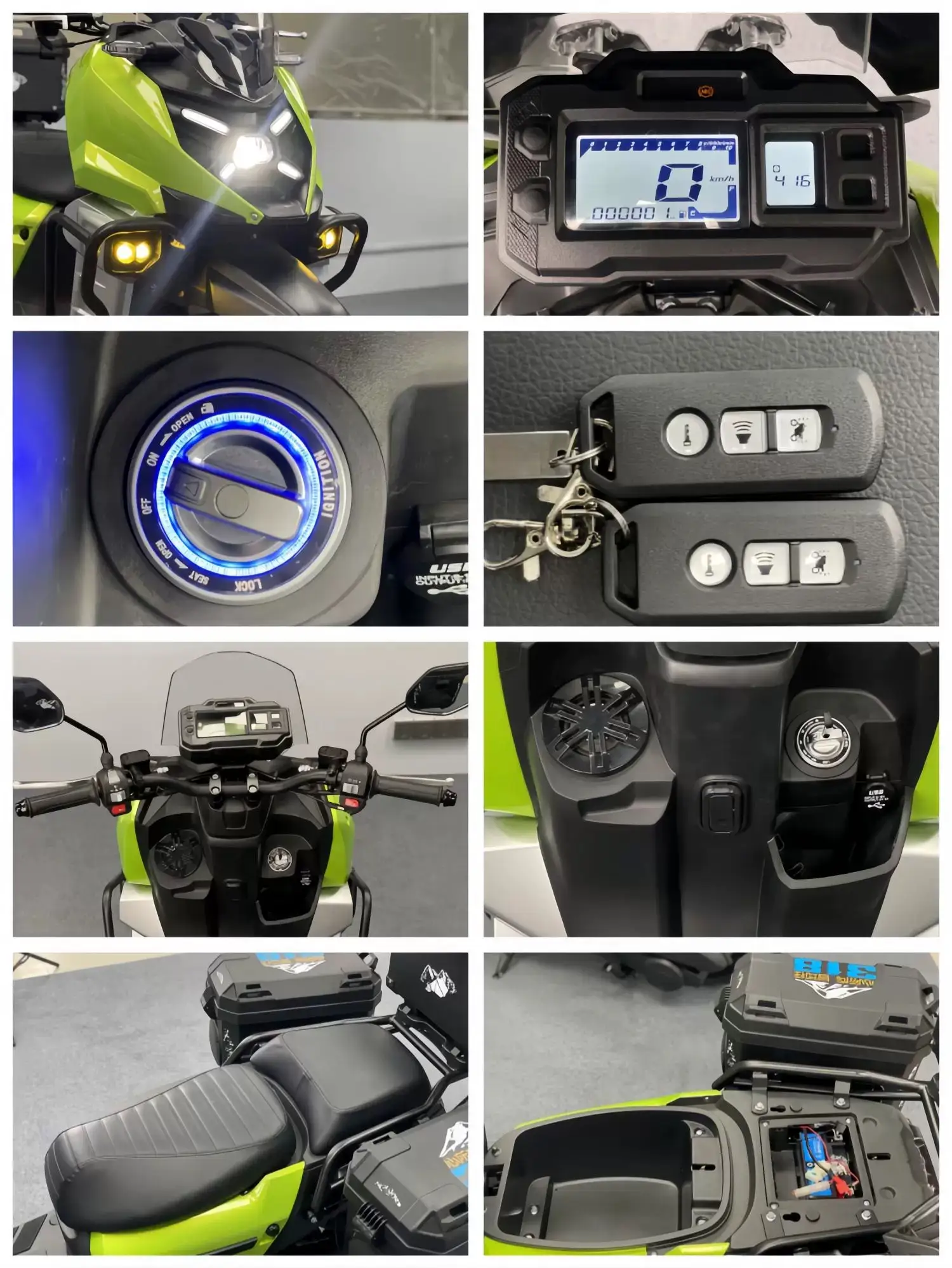

Product detailed pictures
Our services:
- As one of the leading manufacturers and exporters of motorcycle products in South China, we engage in the research and development, manufacturing, testing and all motorcycle-related business.
- For all new models we conduct 8000km road test for reliability and durability on different road conditions for each model before launching to the market.
- All parts from top quality suppliers in China.
- 5% sampling inspection for all parts entering to our pre-assembly warehouse.
- 100% test (power, speed, lights, emission, etc.) for each batch after assembly.
- 1 year/10000km warranty for permanent parts (engine, chassis, muffler, carburetor, etc.) of all models.
- OEM/ODM services.
- Spare parts supply for all models.
F & A:
Q: What is the minimum order quantity?
A: The MOQ of this model is 96 units (1*40’HQ)
Q: What is the lead time?
A: First order – approximately 40 days after receiving deposit or confirmed irrevocable L/C;
From 2nd order — approximately 30 days after receiving deposit or confirmed irrevocable L/C.
Q: What are the Packing ways?
A: Usually we provide the following packing ways according to different requirements by buyers from different markets, customized packing ways are negotiable.
(1) SKD – 1. Steel frame + carton (96 units/40’ HQ);
- Plywood box (96 units/40’ HQ).
(2) CKD – 1. Engine in 1 carton, body parts in 1 plywood box (130 sets/40’ HQ);
- Engine in 1 carton, body parts in 1 carton (130 sets/40’ HQ).
Q: What are the Payment Terms?
A: We accept 2 payment terms:
- Full T/T— 30% deposit by T/T in advance, the balance by T/T before shipment.
- T/T + L/C— 30% deposit by T/T in advance, the balance by confirmed irrevocable L/C at sight.
