200/250cc sports type racing motorcycle model ADMIRAL
Newly launched racing type sports motorcycle model ADMIRAL with 200/250cc OHV engine. Rear mono-shock, digital dashboard, LED taillight and turning signals, front disc and rear drum brakes, sporty separate seat cushions. Optional features: Upside-down front shock absorbers, rear drum brake, separate handlebar, front bumper, etc.
Technical Parameter：
| TECHNICAL SPECS OF ADMIRAL 200/ 250 | ||
| Ref. No. | Items | Specs |
| 1 | Overall dimensions (L×W×H): | 2040×760×1040 (mm) |
| 2 | Wheelbase: | 1360mm |
| 3 | Seat height: | 760mm |
| 4 | Ground clearance: | 280mm |
| 5 | Curb weight: | 160Kg |
| 6 | Max loading capacity: | 150Kg |
| 7 | Max speed: | ≧110Km/h |
| 8 | Brake system (FR/RR): | Disc/disc |
| 9 | Tire sizes (FR; RR): | 90/90-17; 120/80-17 |
| 10 | Fuel tank capacity: | 14L |
| 11 | Displacement: | 196cc; 223.06cc |
| 12 | Engine type: | Single-cylinder, air-cooled, 4-stroke |
| 13 | Starting system: | Electric/ Kick |
| 14 | Ignition: | CDI |
| 15 | Compression ratio: | 8.8:1; 9.0:1 |
| 16 | Max power: | 9.6 kW/ 8000 rpm; 12.5 kW/ 8000 rpm |
| 17 | Max torque: | 13.0 N.m/6000 rpm; 17.5 N.m/6000 rpm |
| 18 | Fuel consumption: | 2.5L/ 100km |
| 19 | Container loading quantity: | 96 units/40ft HQ (SKD) 150 units/40ft HQ (CKD) |
Product advantages:
- Digital dashboard: Delicate digital meter shows the rider accurate riding data, the LCD dashboard displays clearly even under the strong sunshine.
- Colored alloy wheel rims: Wheel rims in bright colors matched with body colors, making the whole motorcycle a piece of art.

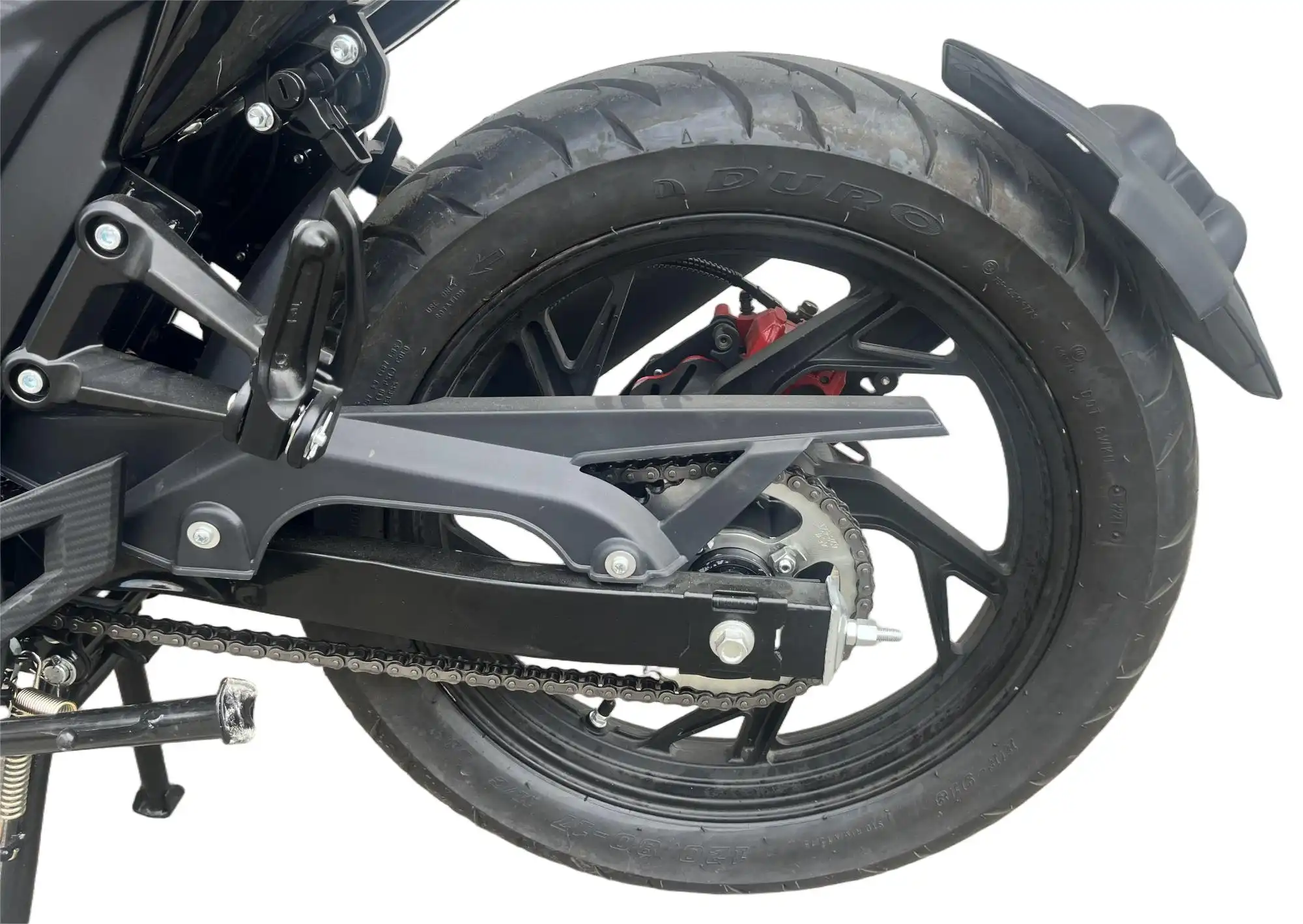

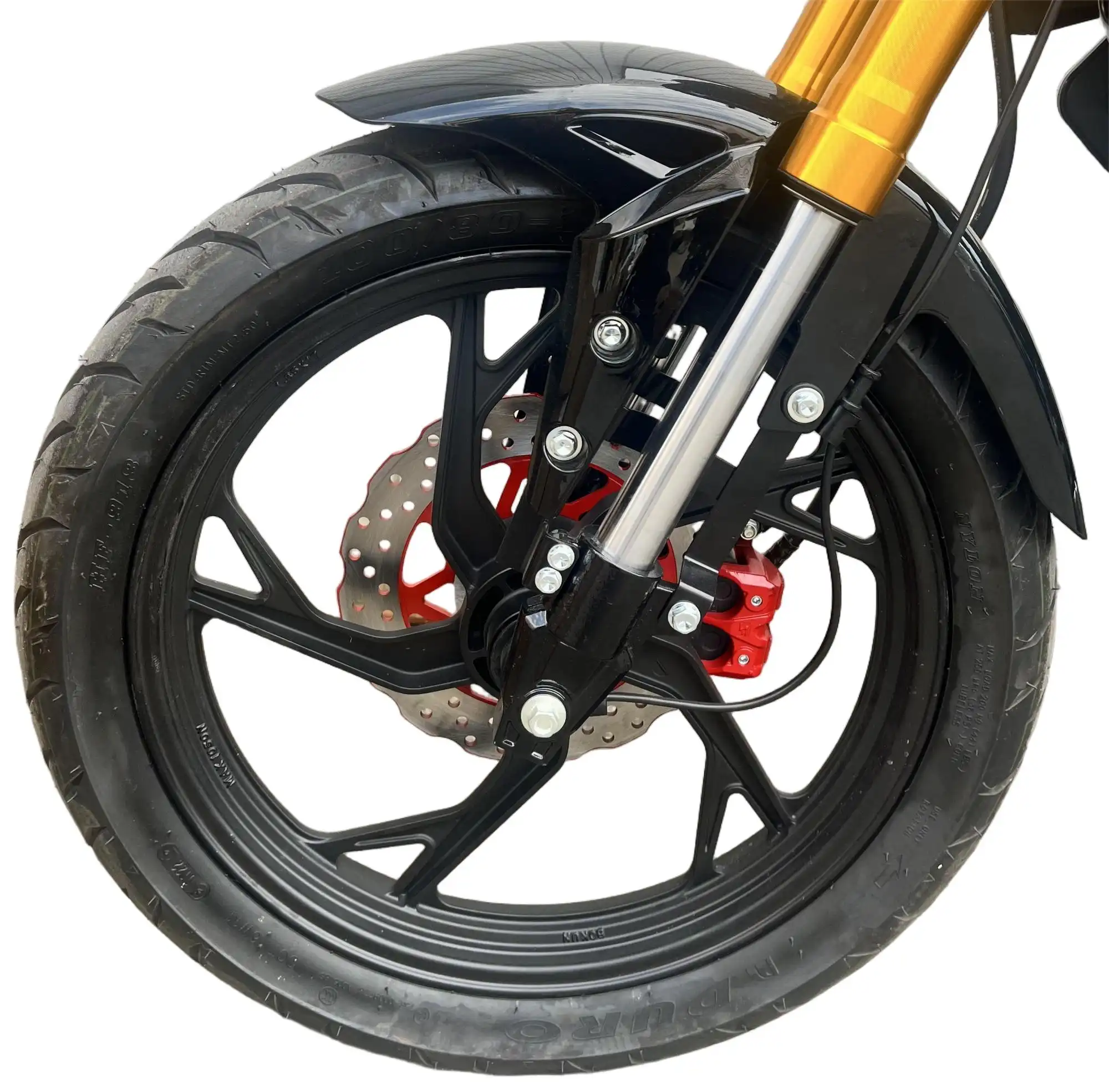

- Front disc and rear drum brakes: Makes your ride more stable and secure.

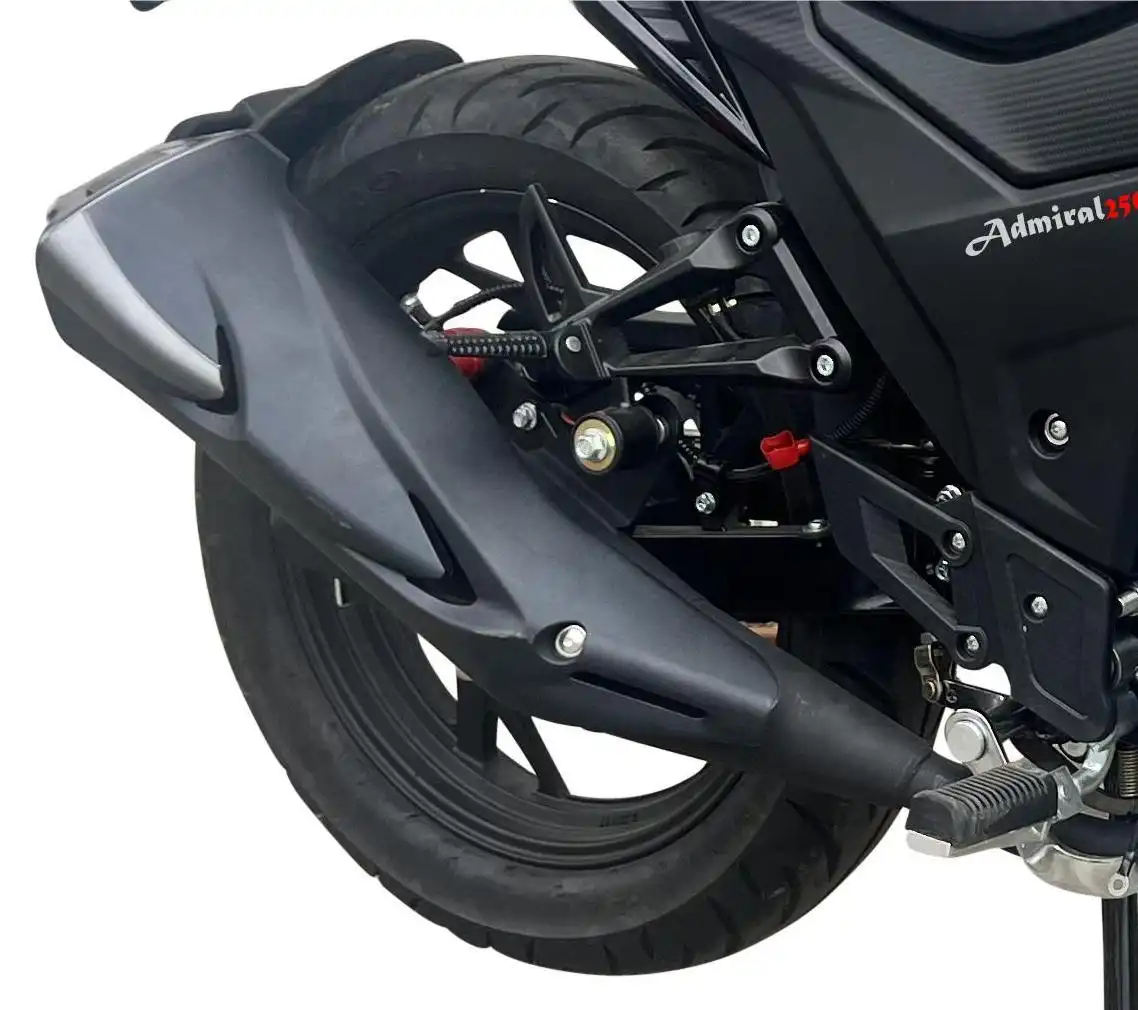

- Sporty exhaust pipe: The sporty exhaust pipe makes vehicle look more fashionable and passionate.

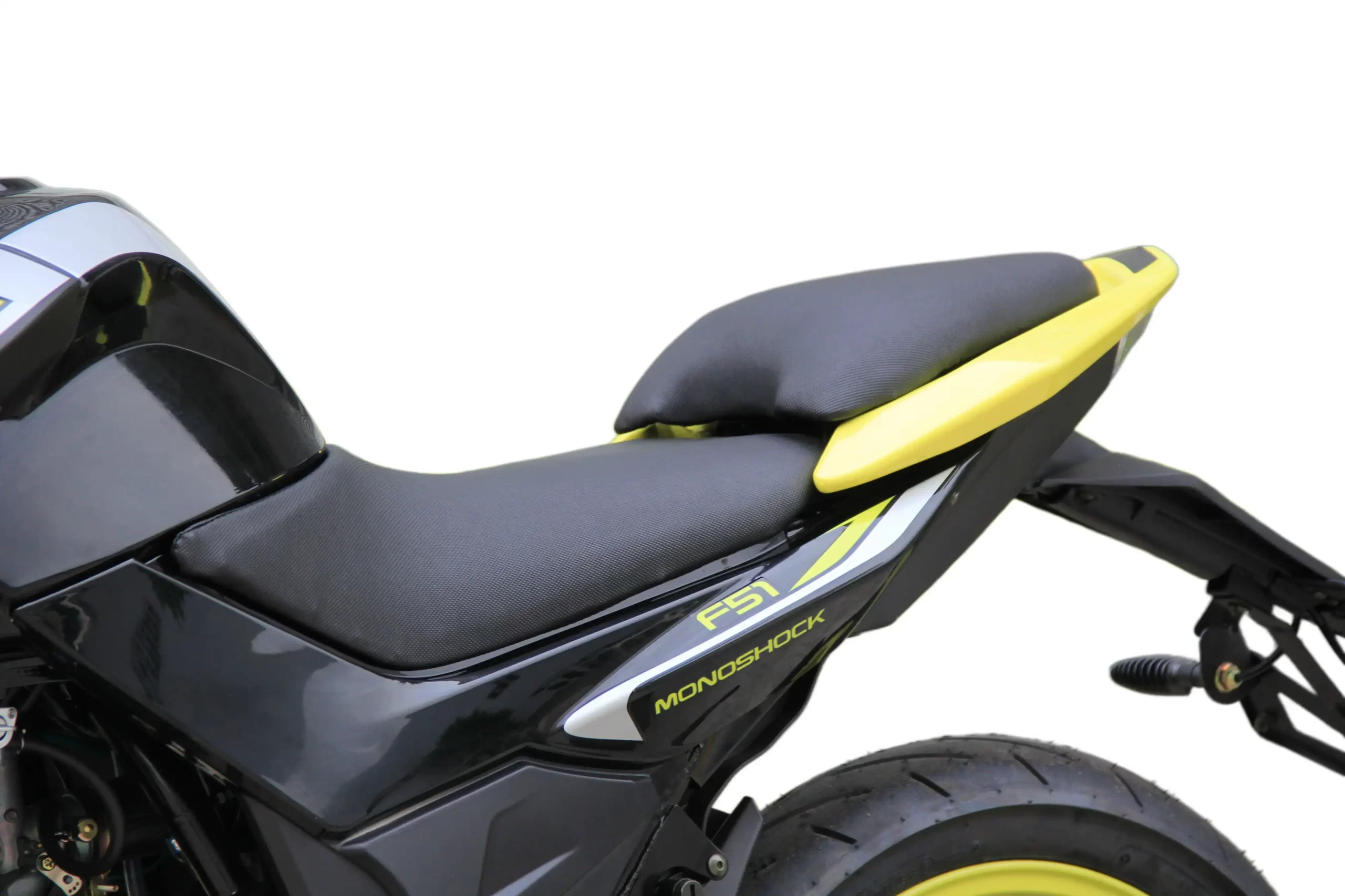

- Separated seat cushions: Adds sports enthusiasm to the motorbike.

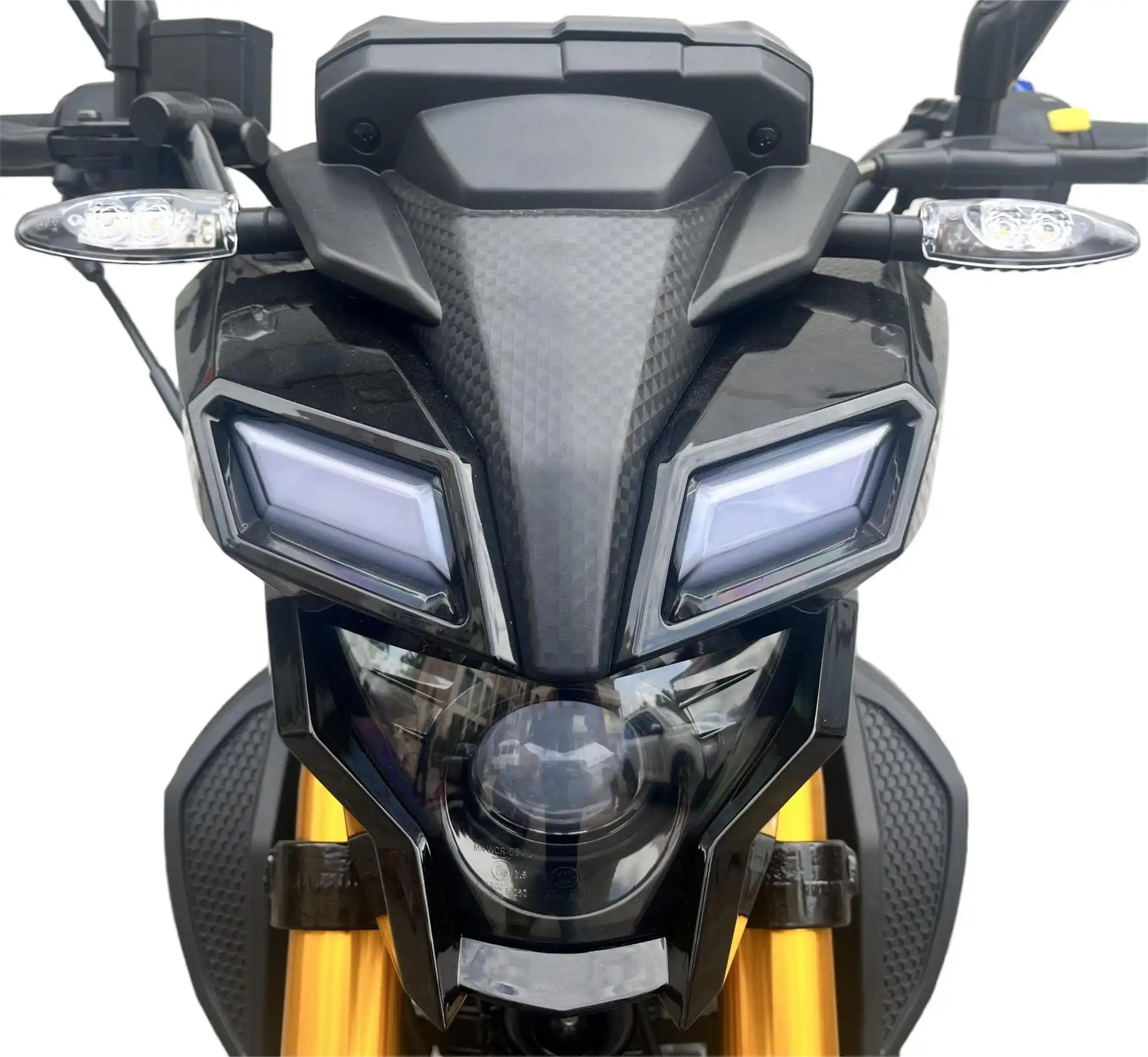

- Unique headlight, LED taillight & turning signals: Unique eye-catching headlight, LED taillight and turning signals make the bike looked more exquisite.
Our services:
- As one of the leading manufacturers and exporters of motorcycle products in South China, we engage in the research and development, manufacturing, testing and all motorcycle-related business.
- For all new models we conduct 8000km road test for reliability and durability on different road conditions for each model before launching to the market.
- All parts from top quality suppliers in China.
- 5% sampling inspection for all parts entering to our pre-assembly warehouse.
- 100% test (power, speed, lights, emission, etc.) for each batch after assembly.
- 1 year/10000km warranty for permanent parts (engine, chassis, muffler, carburetor, etc.) of all models.
- OEM/ODM services.
- Spare parts supply for all models.

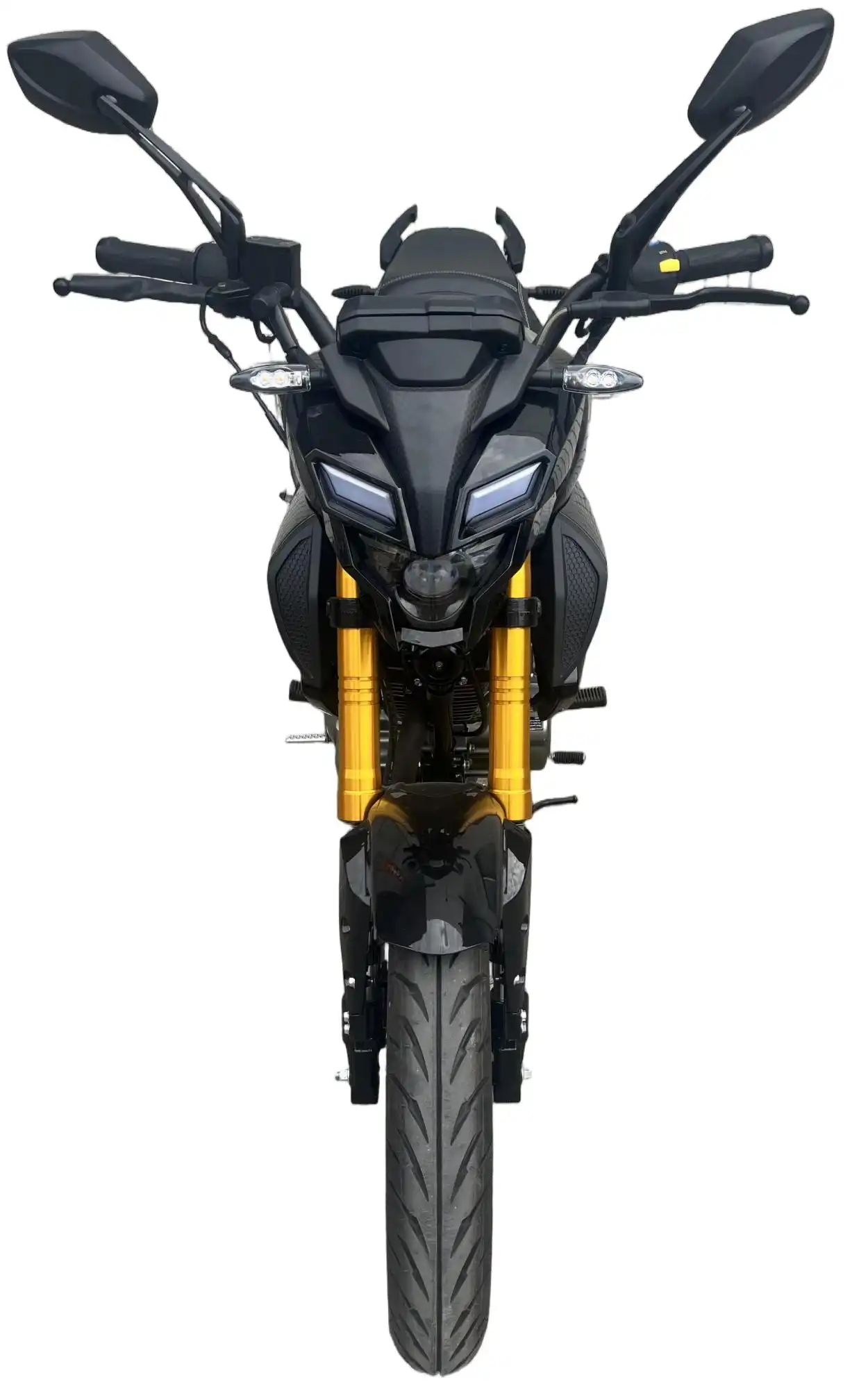

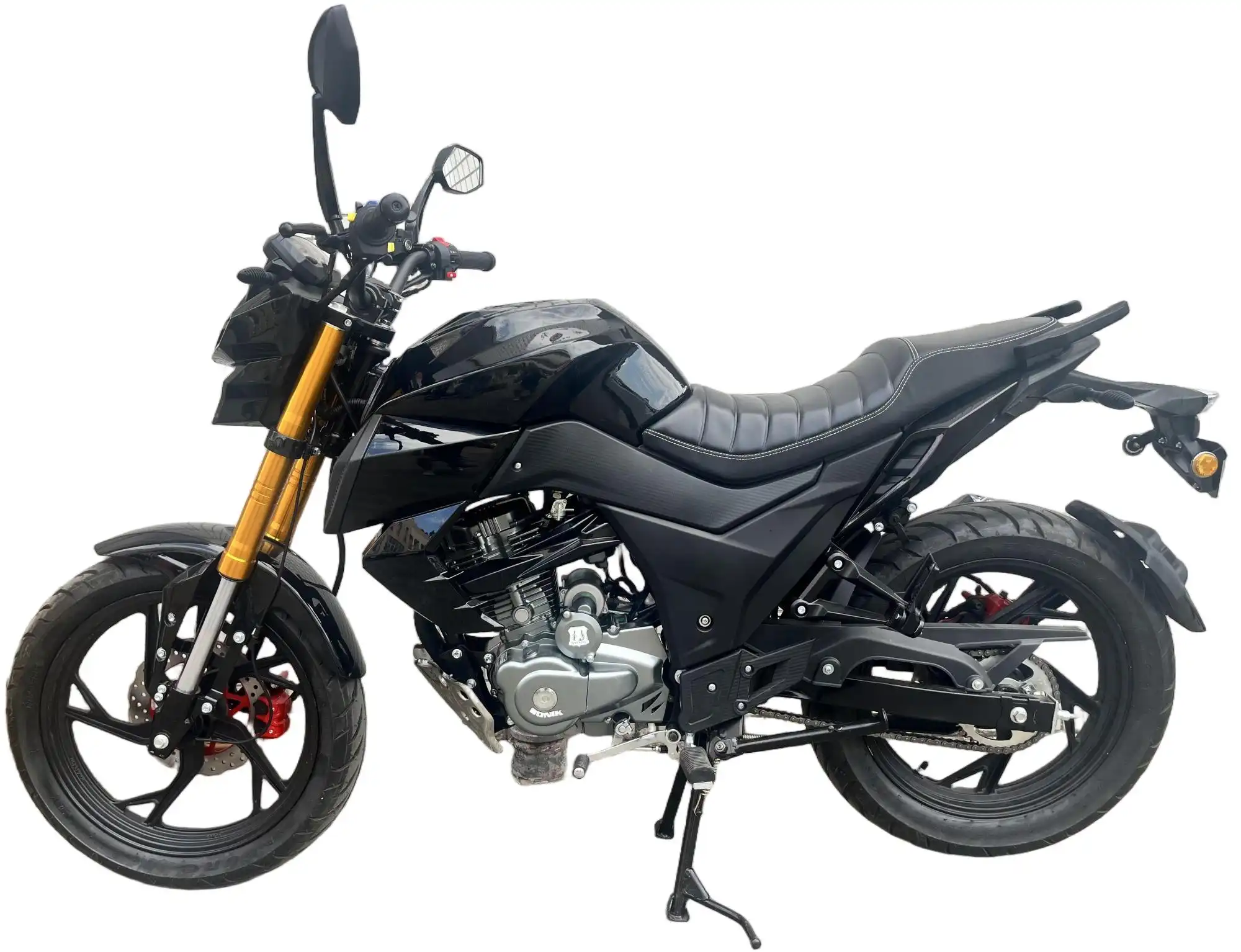

Product detailed pictures
F & A:
Q: What is the minimum order quantity?
A: The MOQ of this model is 30 units (1*20ft GP)
Q: What is the lead time?
A: First order – approximately 40 days after receiving deposit or confirmed irrevocable L/C;
From 2nd order — approximately 30 days after receiving deposit or confirmed irrevocable L/C.
Q: What are the Packing ways?
A: Usually we provide the following packing ways according to different requirements by buyers from different markets, customized packing ways are negotiable.
(1) SKD – 1. Steel frame + carton (96 units/40’ HQ);
- Plywood box (96units/40’ HQ);
(2) CKD – 1. Engine in 1 carton, body parts in 1 plywood box (150 sets/40’ HQ);
- Engine in 1 carton, body parts in 1 carton (150sets/40’ HQ)
Q: What are the Payment Terms?
A: We accept 2 payment terms:
- Full T/T— 30% deposit by T/T in advance, the balance by T/T before shipment.
T/T + L/C — 30% deposit by T/T in advance, the balance by confirmed irrevocable L/C at sight.
