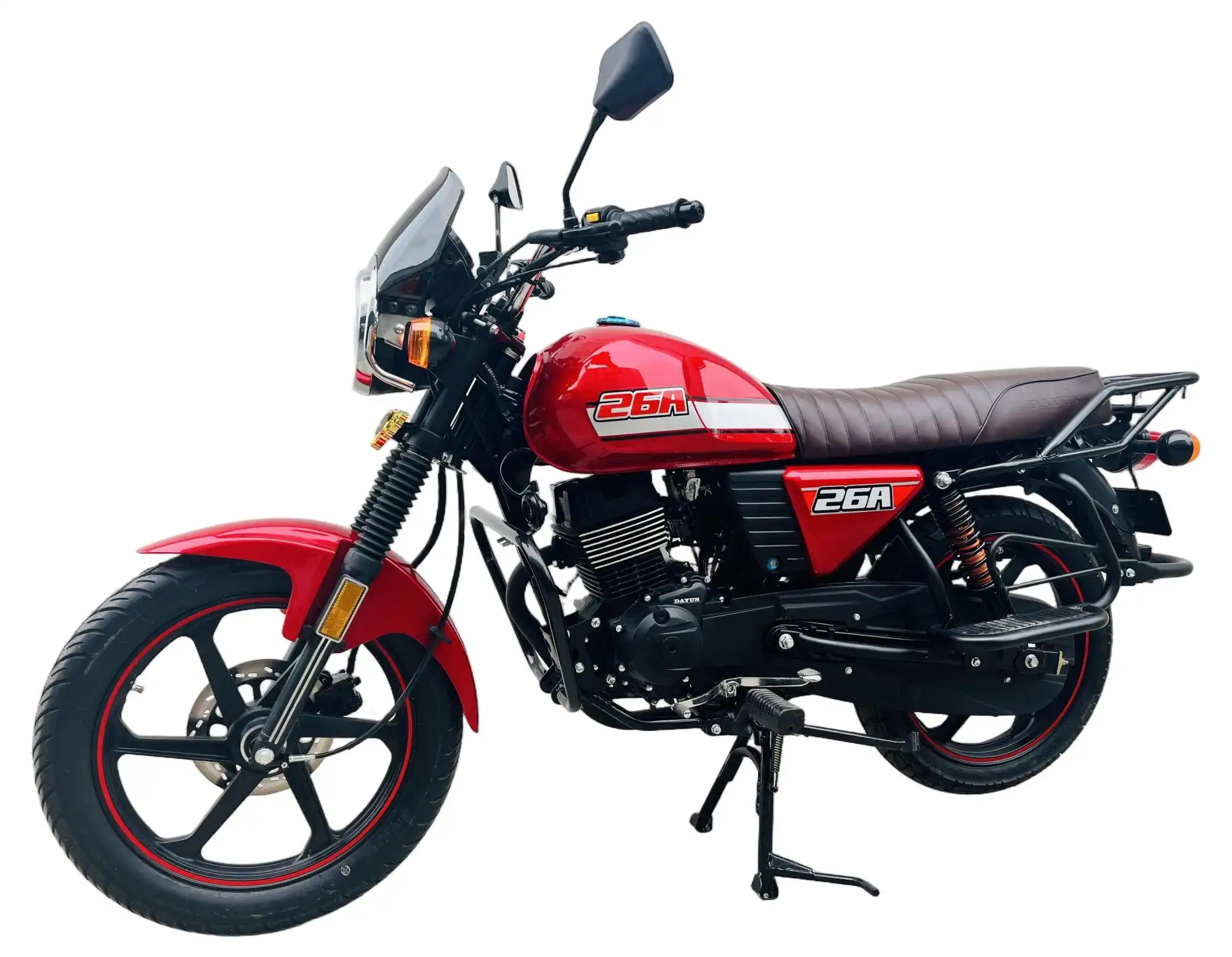

Basic commuter motorcycle ARCH150/200
Basic commuter motorcycle ARCH with 150/200cc CG engine, inspired by HONDA CG model, one of the most classical models in motorcycle industry, especially in Africa and Latin America markets. With alloy wheels, disc/drum brakes, SNS rear shock absorbers.Streamline head cover. Optional features: Normal rear shock absorbers, big carrier with footrests, MP3, etc.
Technical Parameter：
| TECHNICAL SPECS (ARCH125/150) | ||
| Ref. No. | Description | Technical Data |
| 1 | Dimension ((L×W×H): | 2010×710×1060 mm |
| 2 | Wheel base : | 1340mm |
| 3 | Max loading capacity (kg): | 150kg |
| 4 | Dry Weight: | 122kg |
| 5 | Engine Type: | Single cylinder,4-stroke, air-cooling |
| 6 | Engine model: | PE162FMJ |
| 7 | Bore×Stroke : | 57.3×57.8mm |
| 8 | Displacement: | 124/150cc |
| 9 | Maximum Power: | 9.0kw/7000r/min |
| 10 | Maximum Torque: | 9.8N.m/6500rpm |
| 11 | Start: | Electric start/kick start |
| 12 | Ignition:. | C.D.I |
| 13 | Max. Speed : | ≥90 km/h |
| 14 | Economical Fuel Consumption (L/100km): | ≤2.8L/100km |
| 15 | Loading | 105 units/40ft HQ (SKD packing)
175 units/40ft HQ (CKD packing)
|
Product advantages:

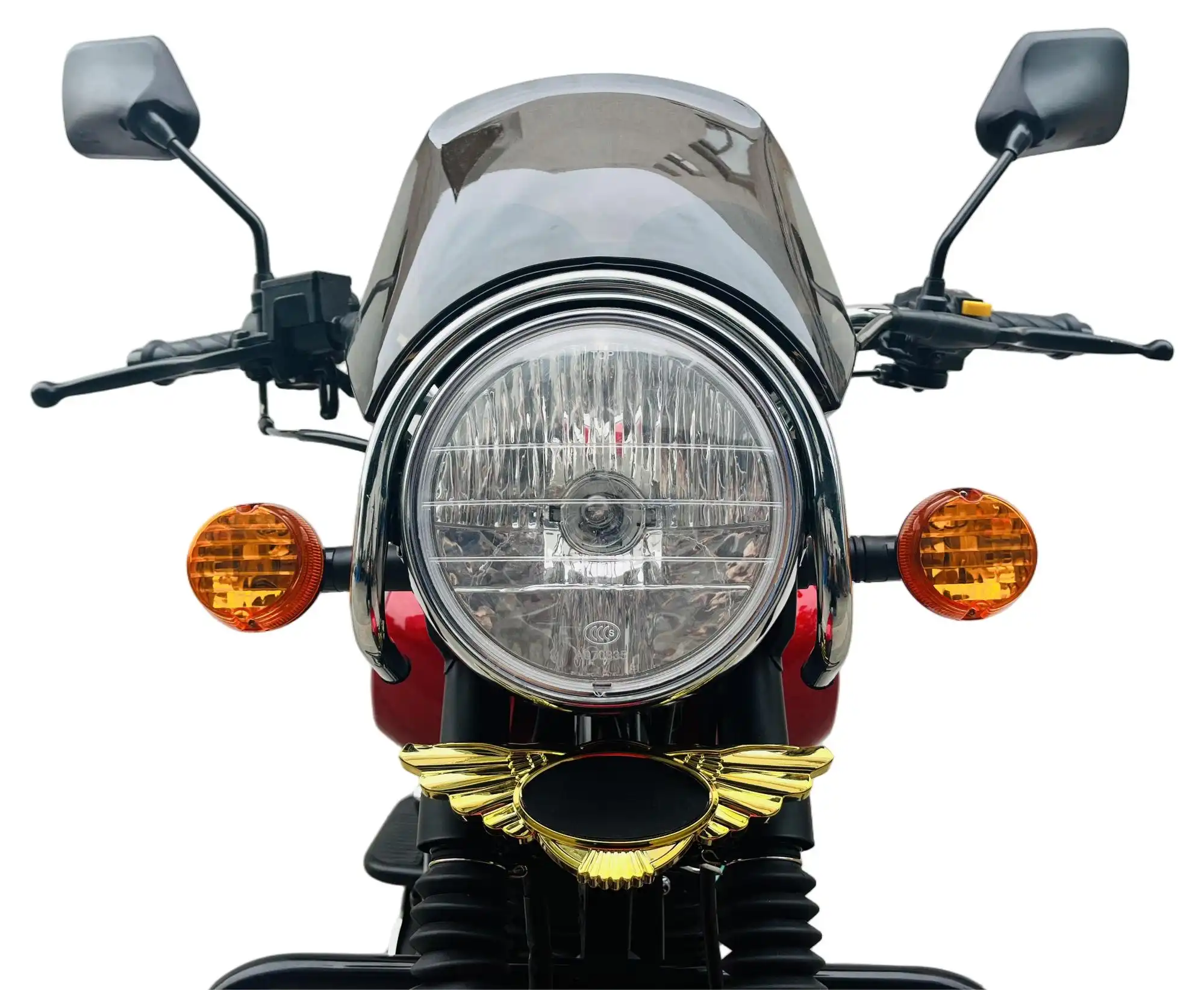

- Bright LED Round Headlight: The illumination ismore centralized, the riding is more safer.

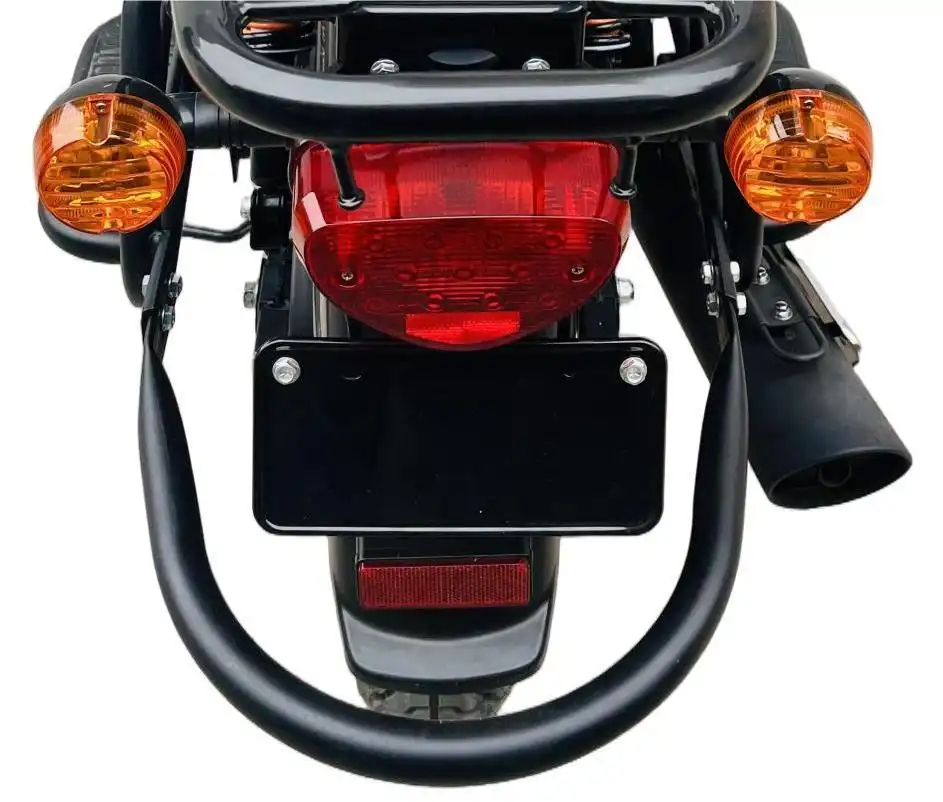

- LED taillight& turning signals: Beautiful and eye-catching LED taillight and turning signals make the bike more exquisite.

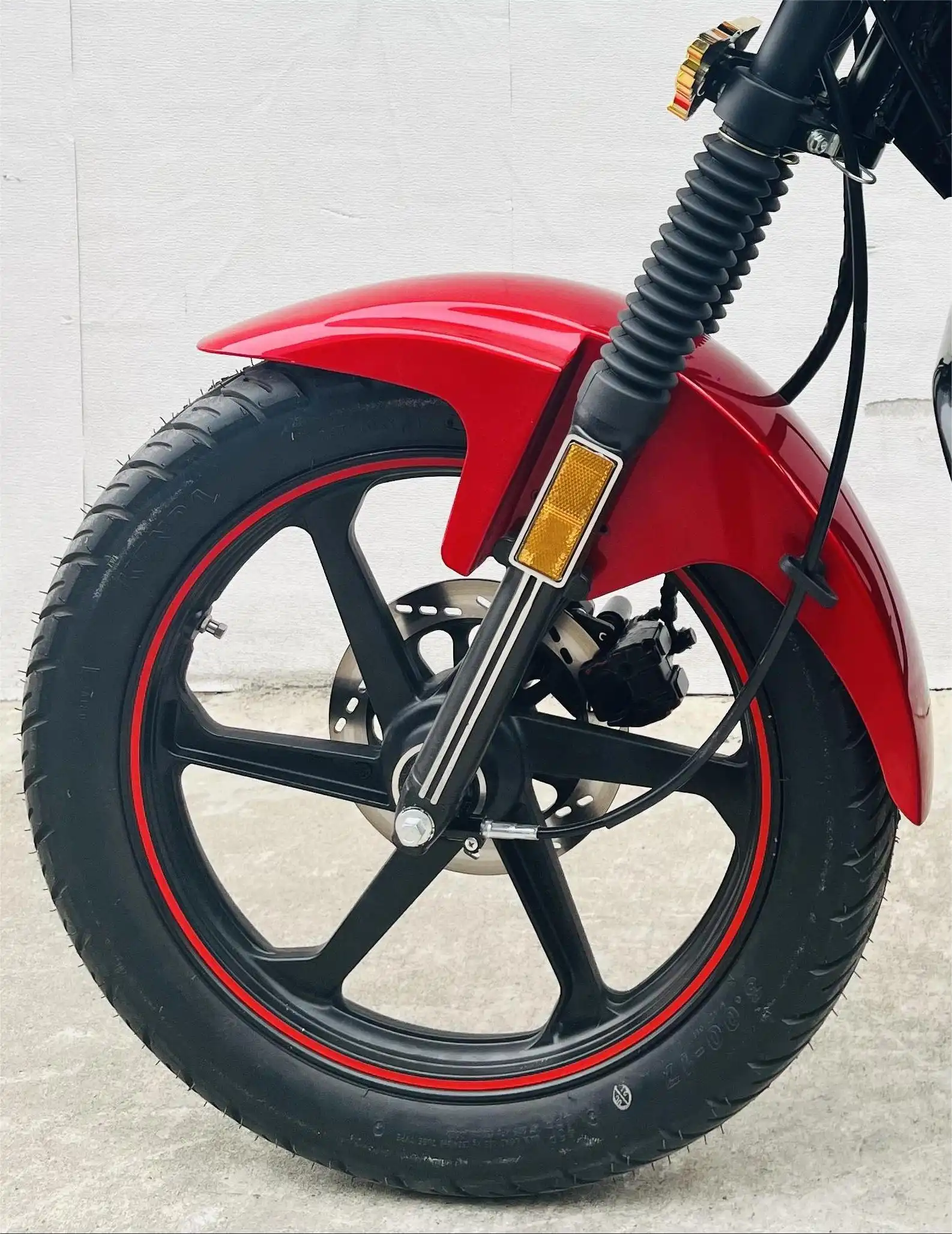

- Alloy wheels: Sporty alloy wheel rims with colored trims matching with the motorcycle bodies makes the bike a spotlight in the street.
- Disc/drum brakes: Ensures the stability and security of your ride.

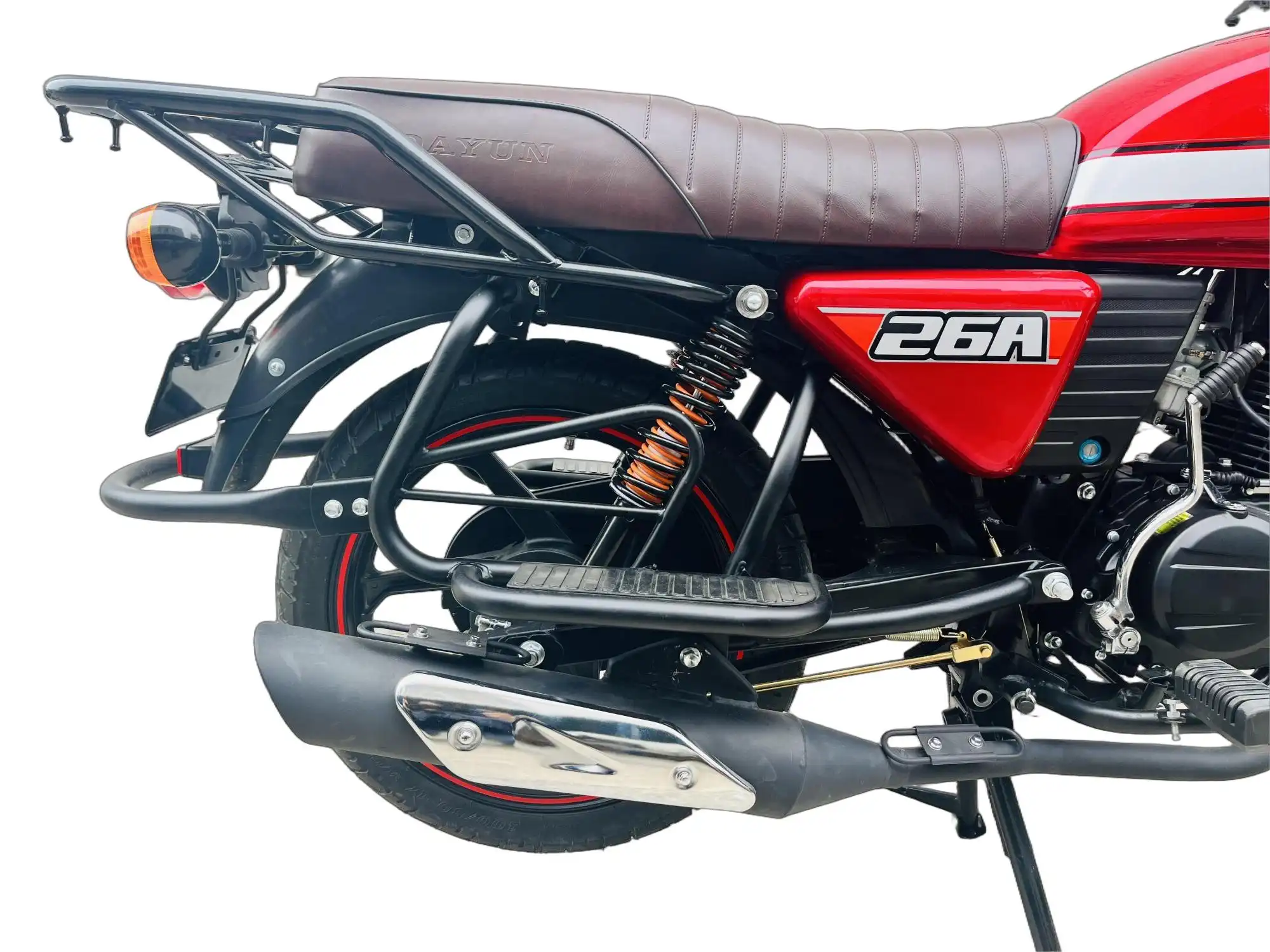

- SNS rear shock absorbers: The SNS rear shock absorbers makes the motorbike more suitable for heavy-duty carrying.
- Streamlinehead cover: Make the ARCH more fashion.

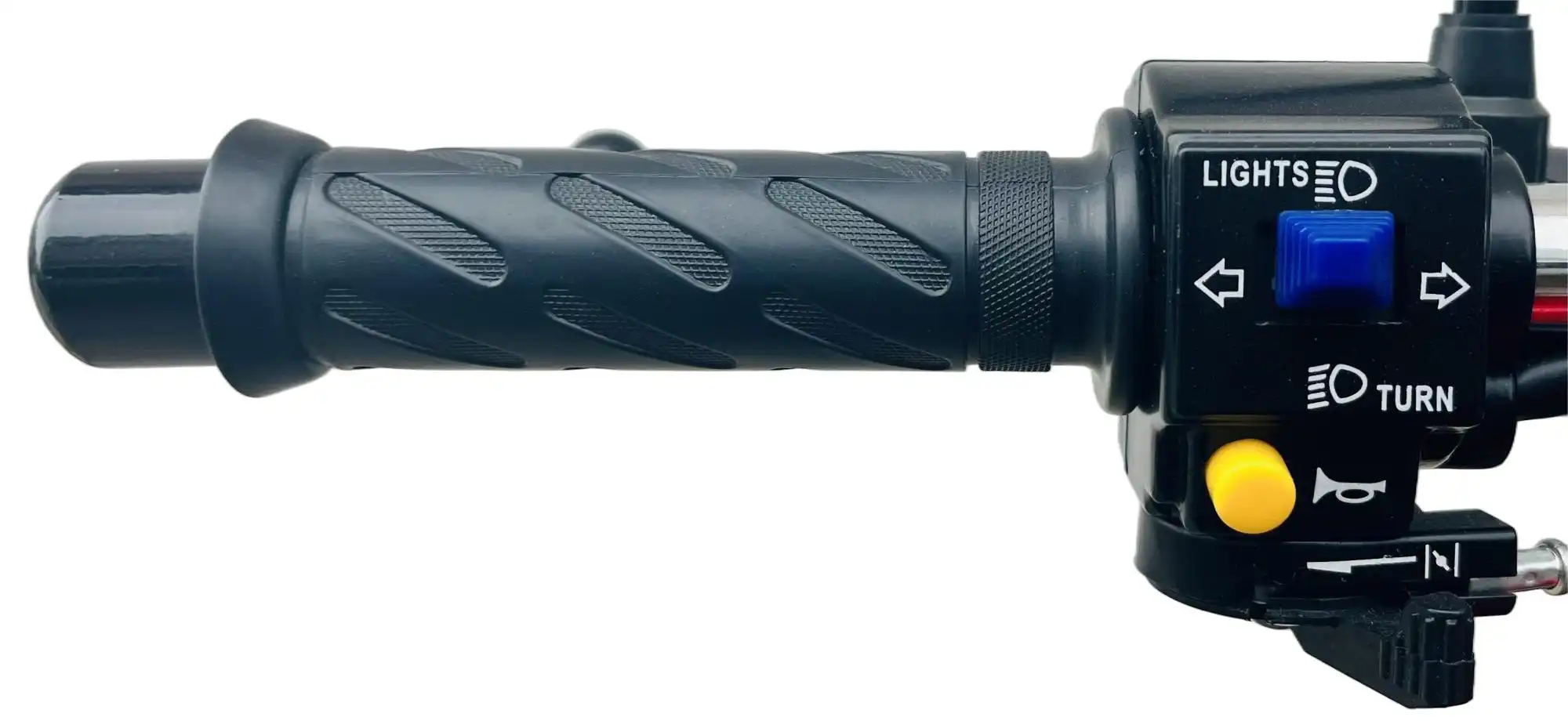

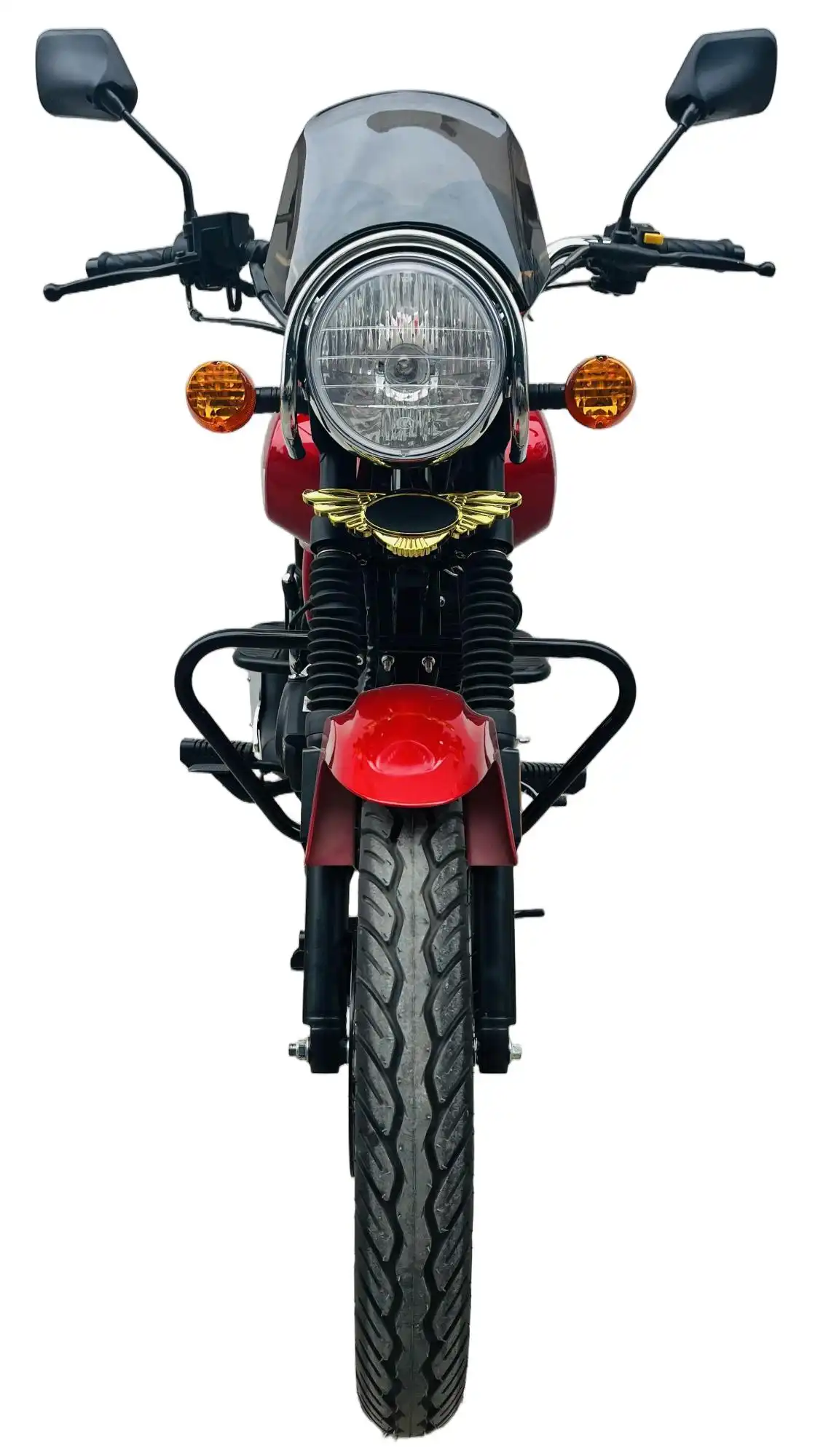

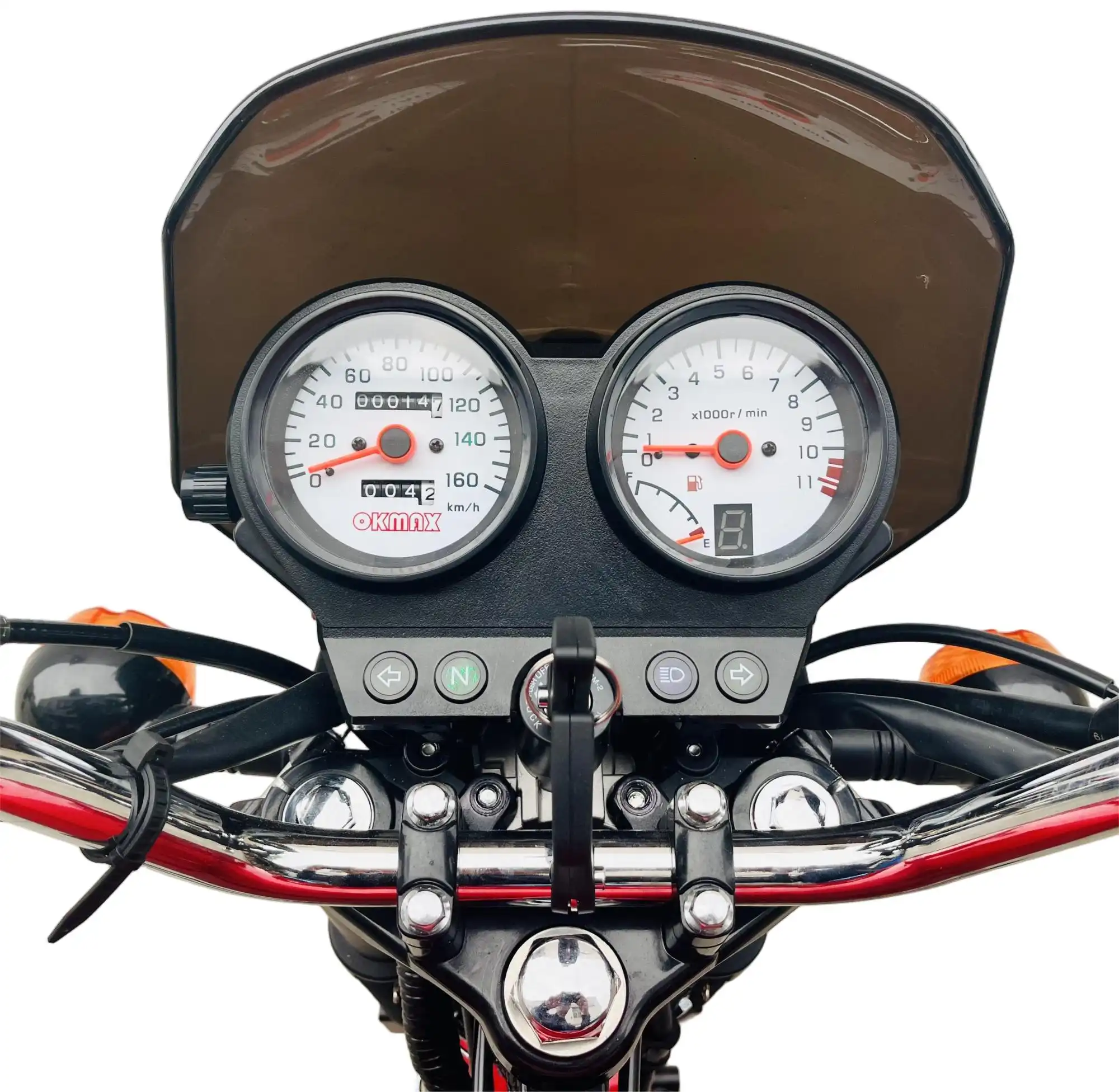

Product detailed pictures
Product detailed pictures
Our services:
- We are the supplier of the motorcycle, we can produce the street motorcycle with high quality at resonable price and we can customize it according to your market requirment.
- 8000km road test for reliability and durability on different road conditions for each model before launching tothe market.
- All parts from top quality suppliers in China.
- 5% sampling inspection for all parts entering to our pre-assembly warehouse.
- 100%test (power, speed, lights, emission, etc.) for each batch after assembly.
- 1 year/10000km warranty for permanent parts (engine, chassis, muffler, carburetor, etc.) of all models.
- OEM/ODM services.
- Spare parts supply for all models.
F & A:
Q: What is the minimum order quantity?
A: The MOQ of this model is 40 units (1*20ft GP)
Q: What is the lead time?
A: First order – approximately 40 days after receiving deposit or confirmed irrevocable L/C;
From 2nd order — approximately 30 days after receiving deposit or confirmed irrevocable L/C.
Q: What are the Packing ways?
A: Usually we provide the following packing ways according to different requirements by buyers from different markets, customized packing ways are negotiable.
(1) SKD – 1. Steel frame + carton (105 units/40’ HQ);
- Plywood box (105units/40’ HQ);
(2) CKD – 1. Engine in 1 carton, body parts in 1 plywood box (175 sets/40’ HQ);
- Engine in 1 carton, body parts in 1 carton (175sets/40’ HQ)
Q: What are the Payment Terms?
A: We accept 2 payment terms:
- Full T/T— 30% deposit by T/T in advance, the balance by T/T before shipment.
T/T + L/C — 30% deposit by T/T in advance, the balance by L/C at sight.
