BWS IV – YAMAHA Originated Scooter

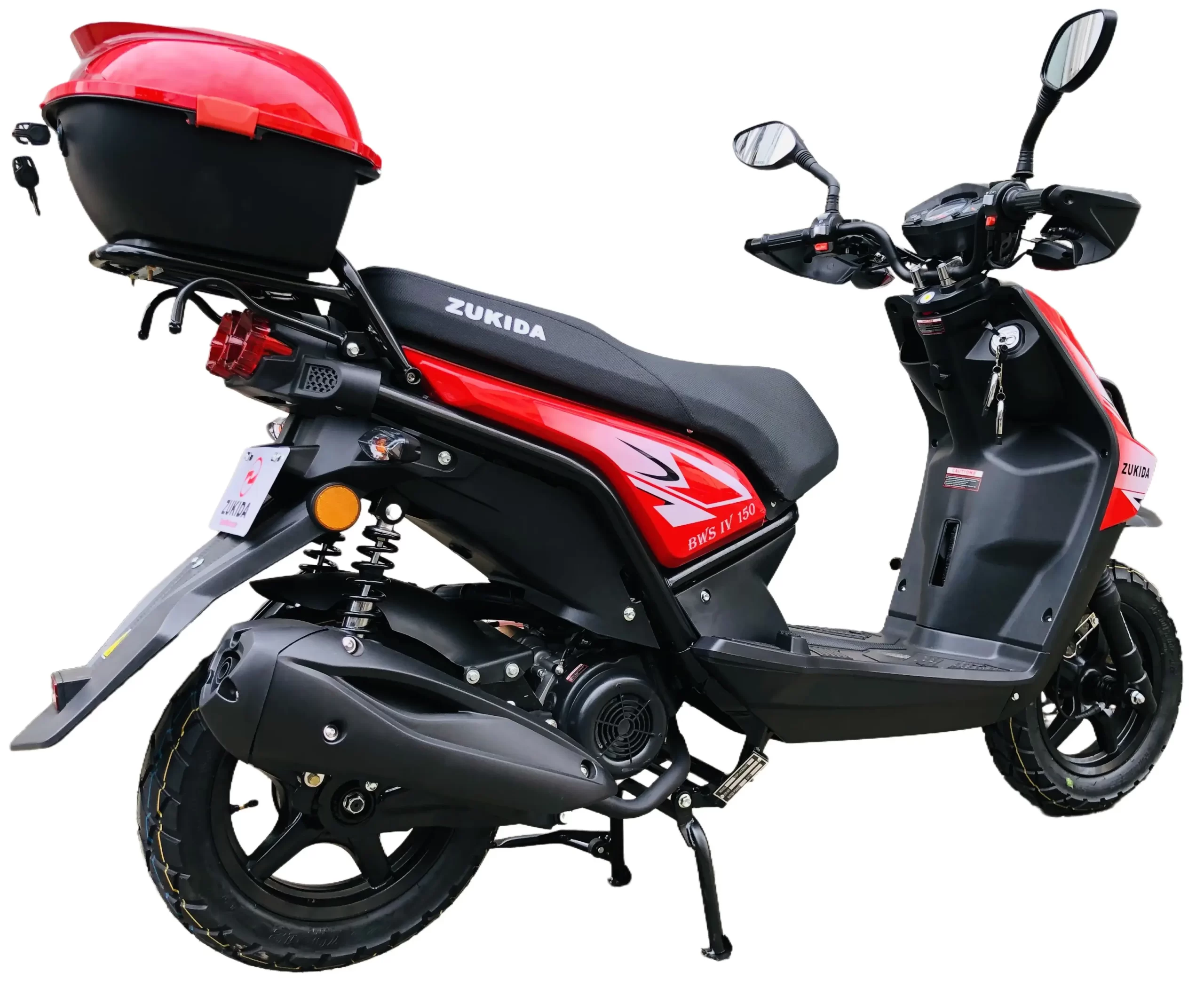

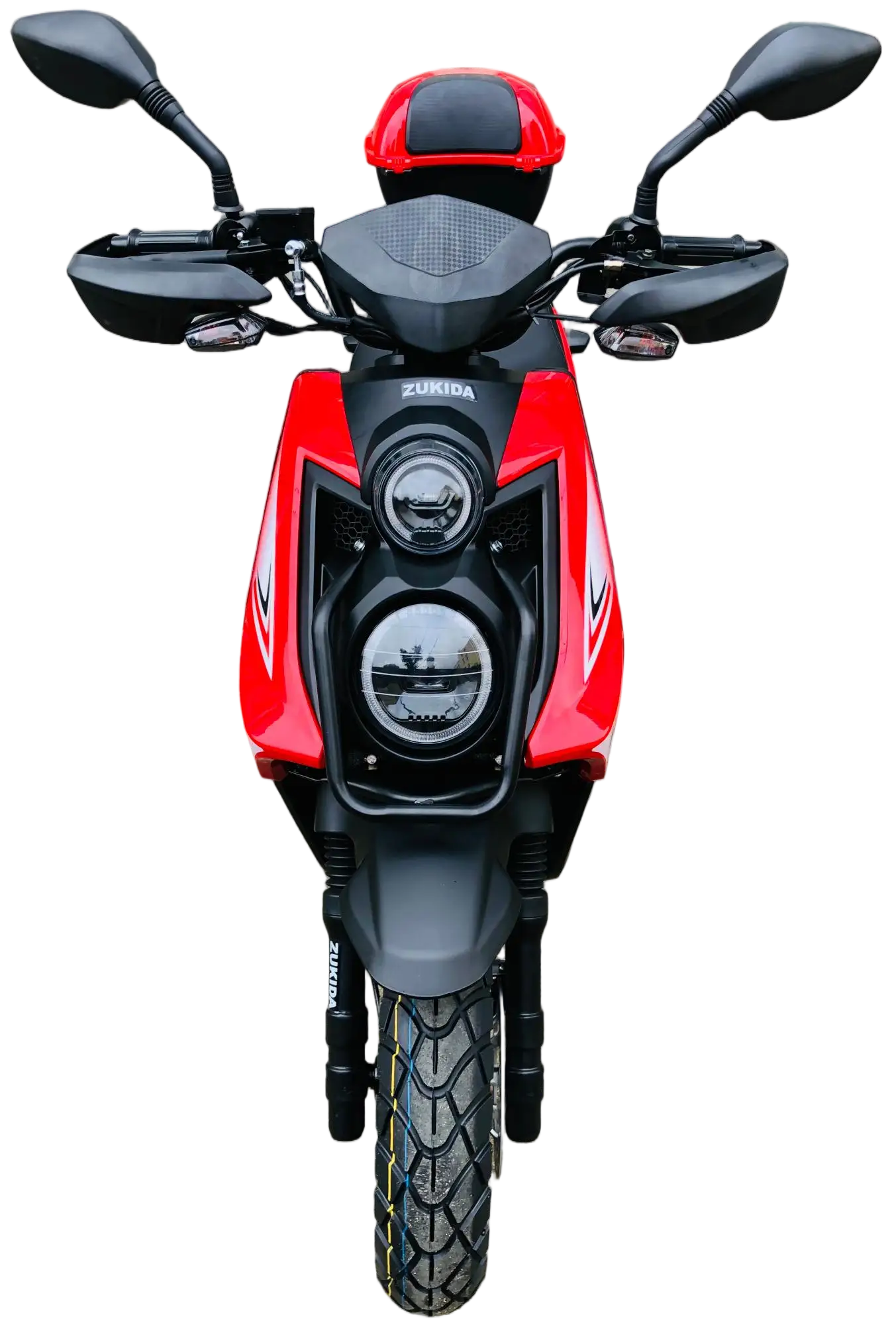

Gasoline scooter BWS IV inspired by YAMAHA BWS, with 2 engine sizes (125cc & 150cc) available. Vertical double headlights, digital meter, 12-inch alloy wheel rims, disc/drum brakes, double rear shock absorbers, rear handrail. Optional features: 13-inch colored alloy wheel rims, single rear shock, rear carrier, hand protectors, windshield, mechanic meter, top box, remote control, burglar alarm, MP3 & radio, USB, etc.

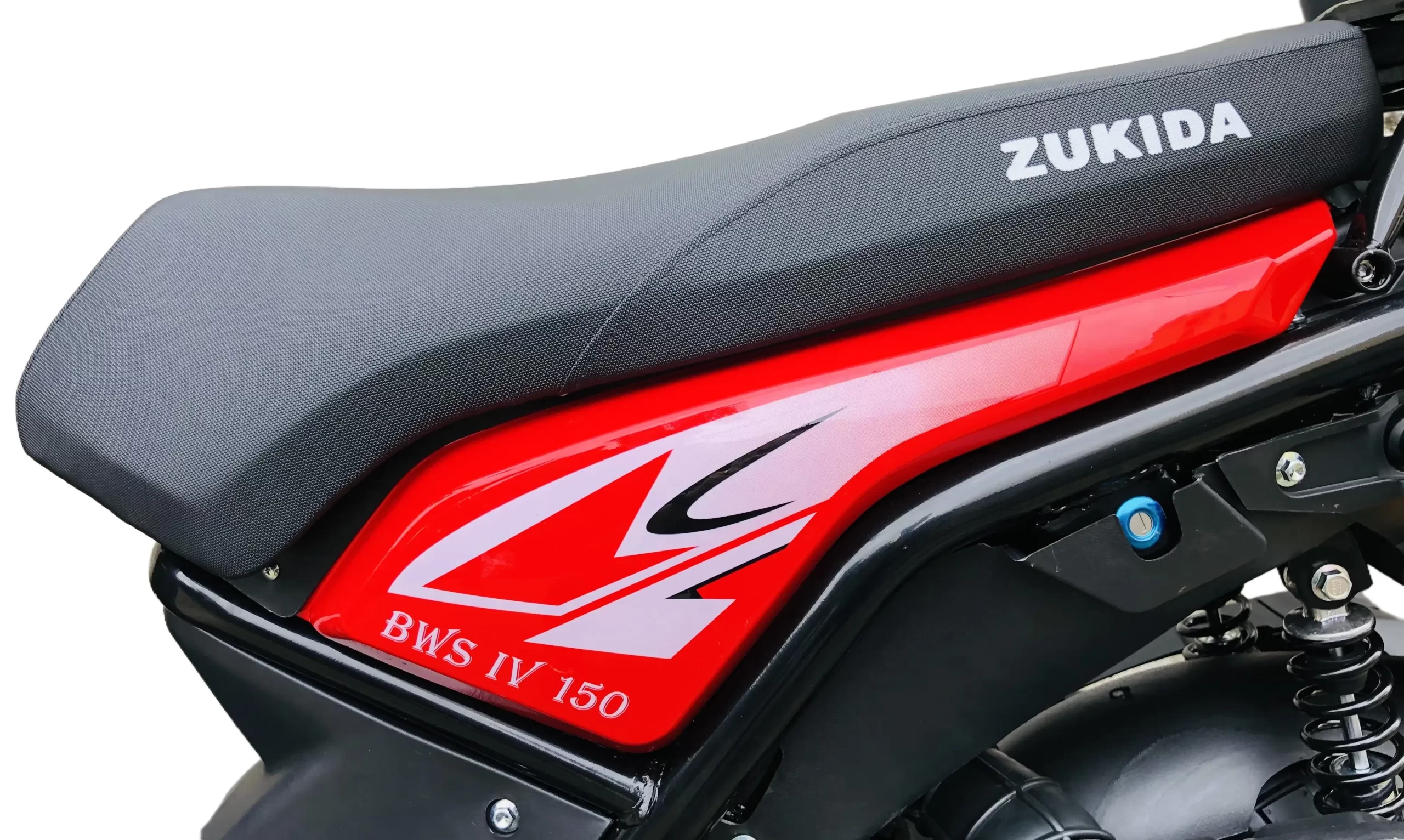

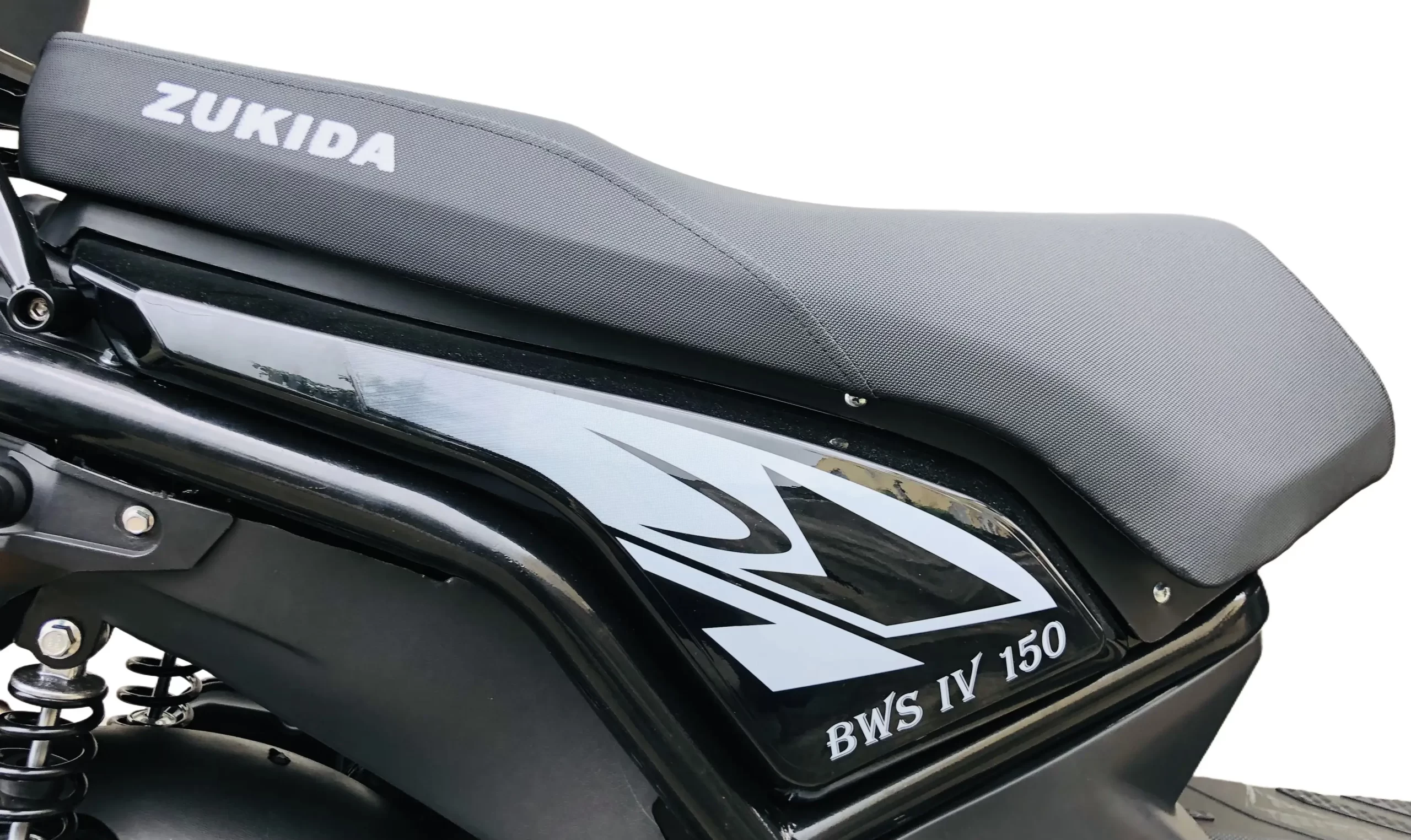

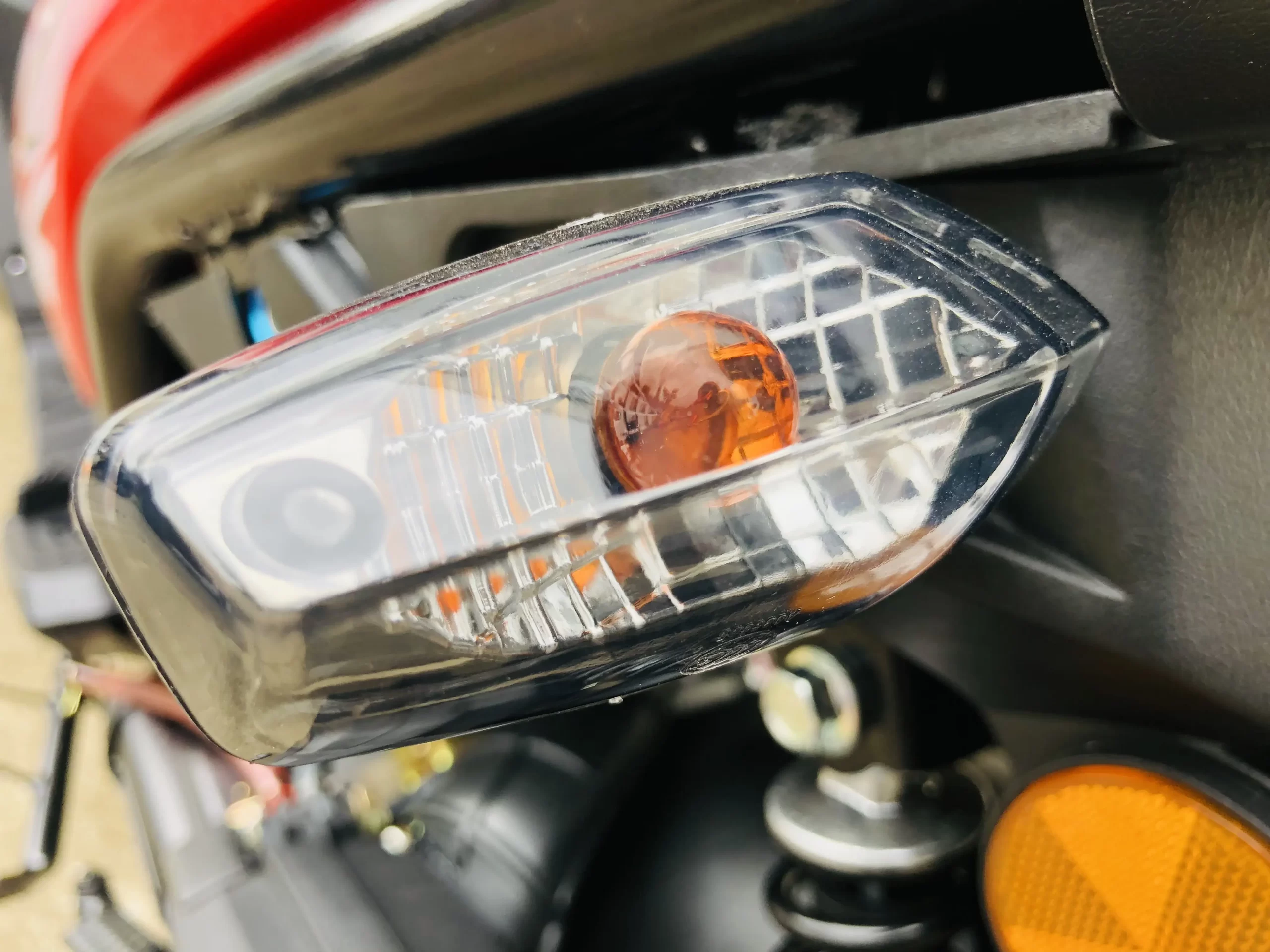

Product detailed pictures
Product advantages:
- YAMAHA BWS-inspired design: The design inspired by the world renowned YAMAHABWS model, makes it easier for this model to be favored by global vehicle users.

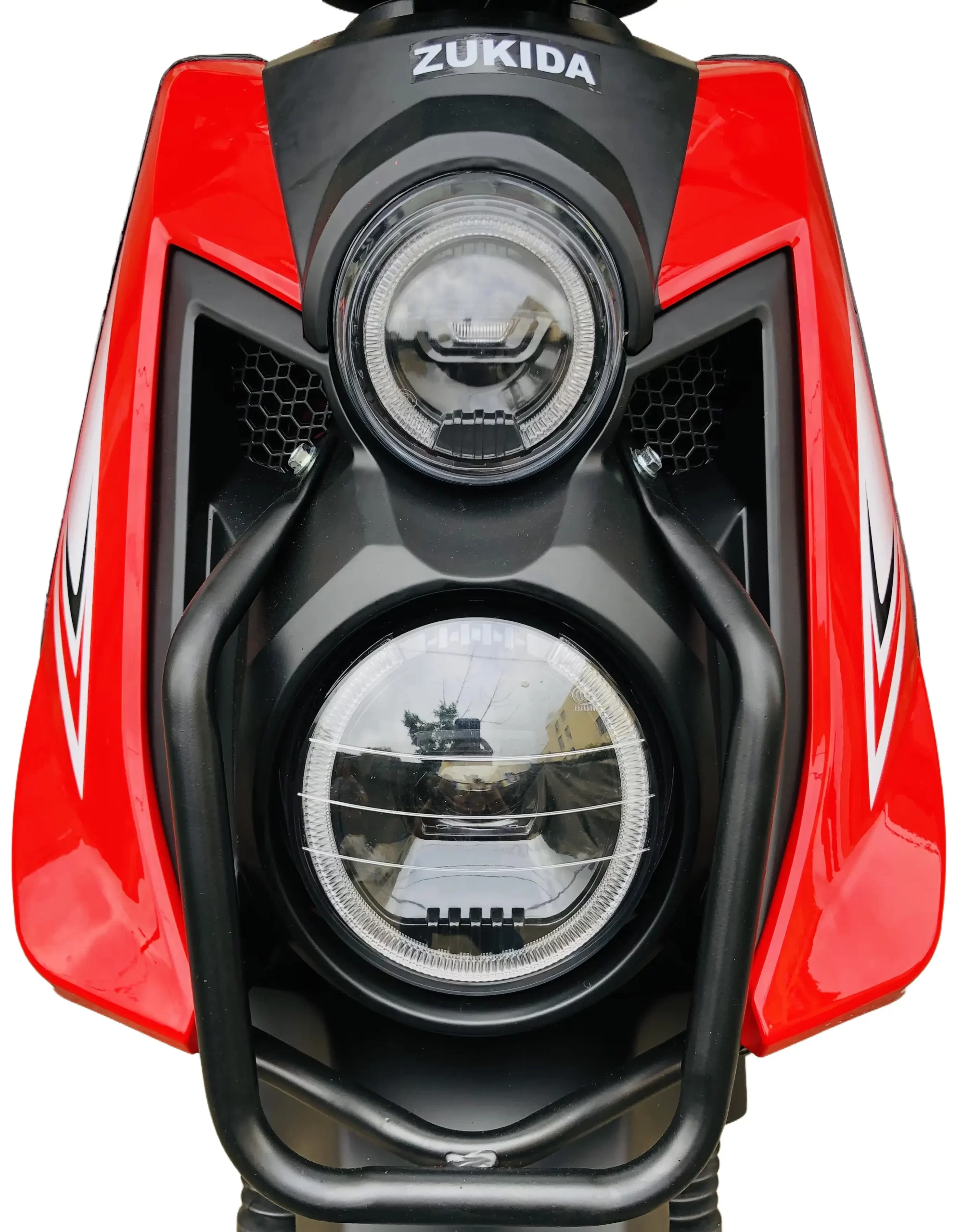

- Verticle double LED headlights: Eye-catching LED lights add luxurious touch to the bike, and the illumination of LED lights is more centralized,which better ensures the rider’s security.

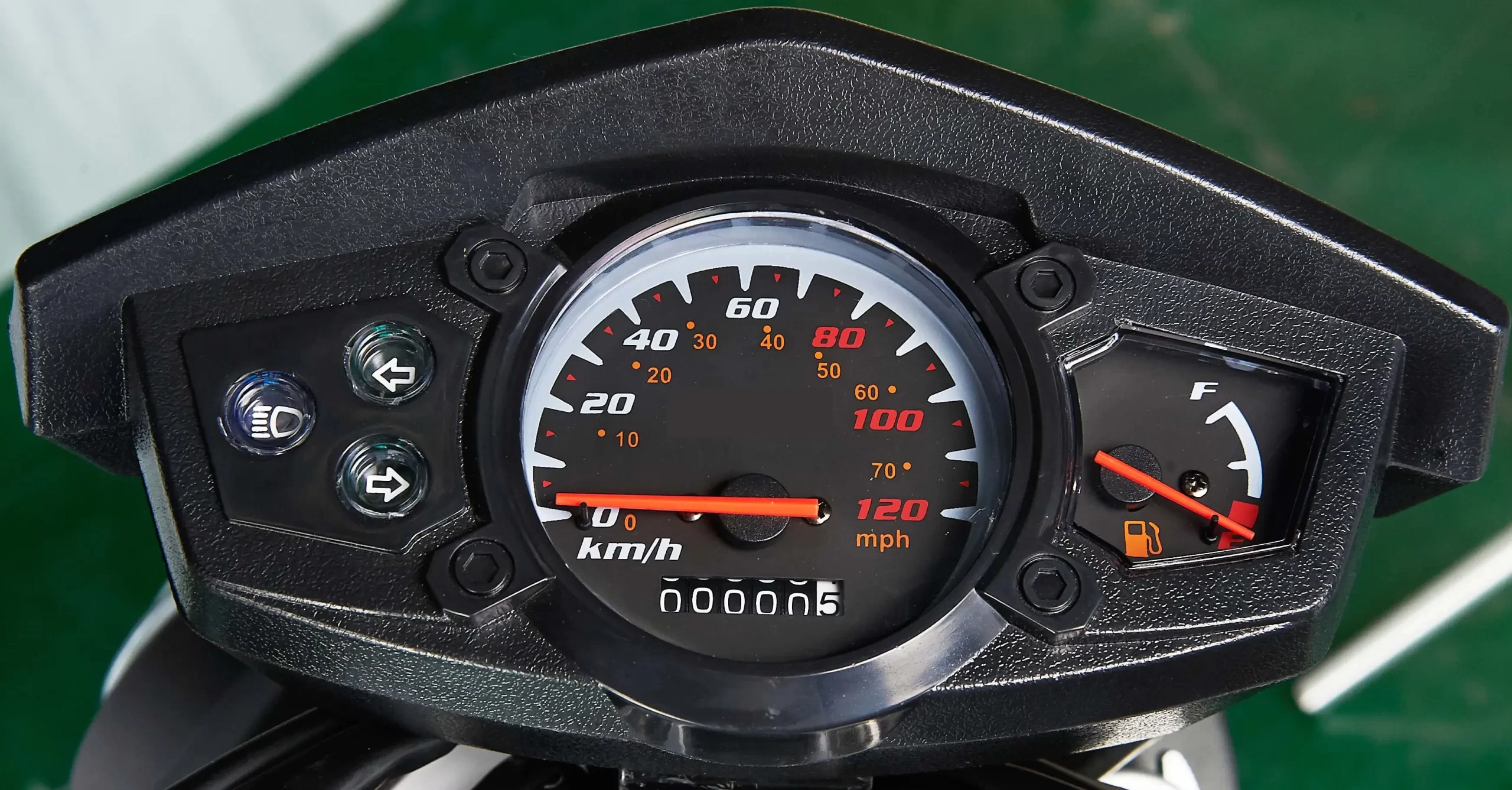

- Optional mechanical/ digital meter: Delicate digital meter shows the rider accurate riding data, the LCD dashboard displays clearly even under the strong sunshine. While the mechanical meter is more durable and cost-effective.

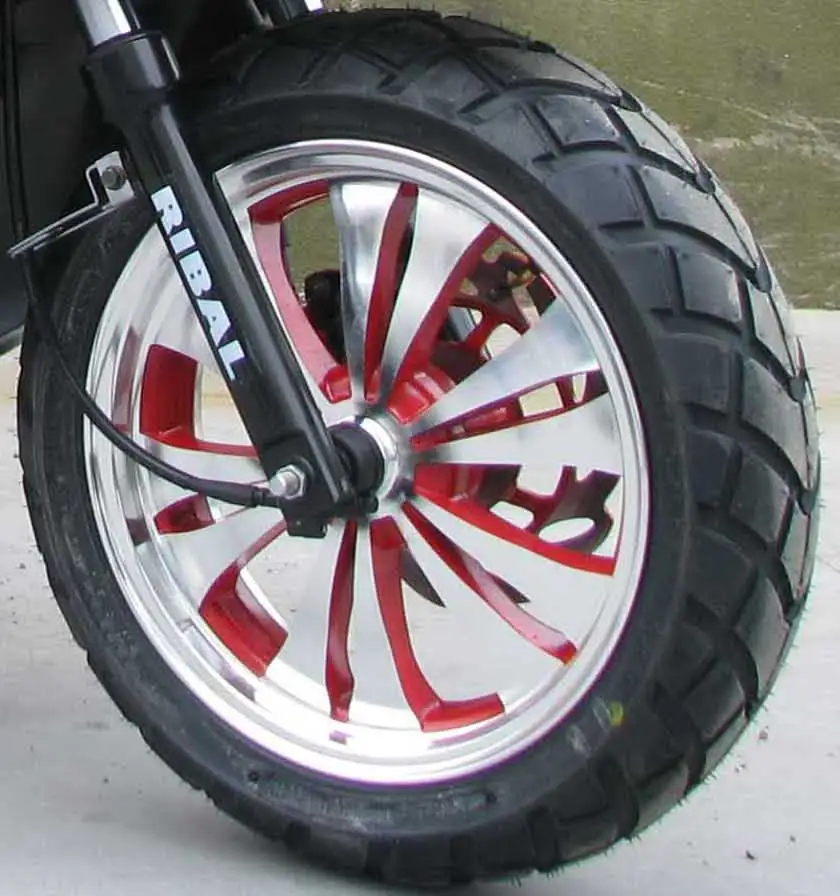

- Optional 13-inch wheels: The large-sized wheels optimize the vehicle’s passability, making it more adaptable to various road conditions.

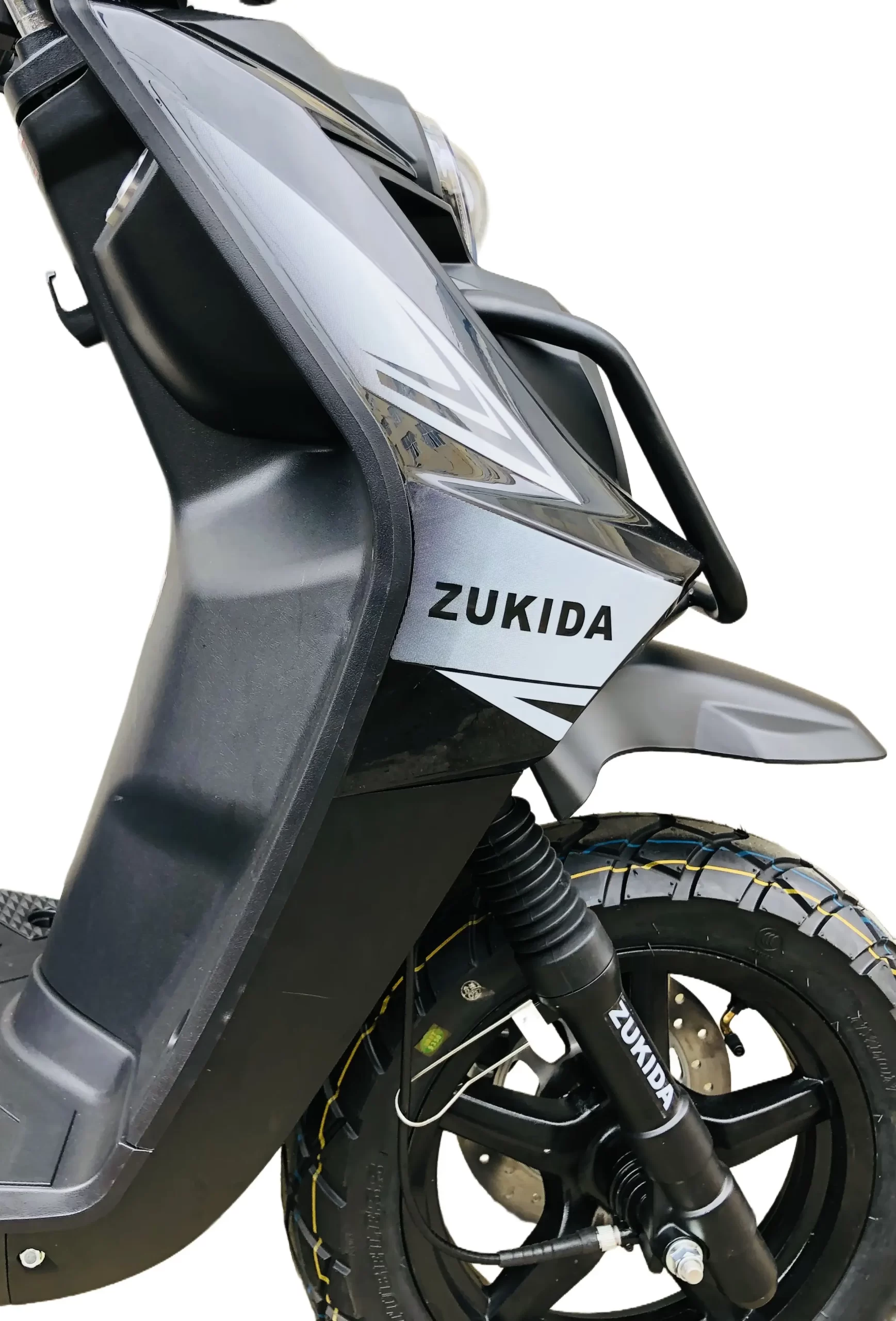

- Disc/ drum brakes: The front disc brake and rear drum brake design enhance the braking performance of the vehicle, ensuring the safety of riders.

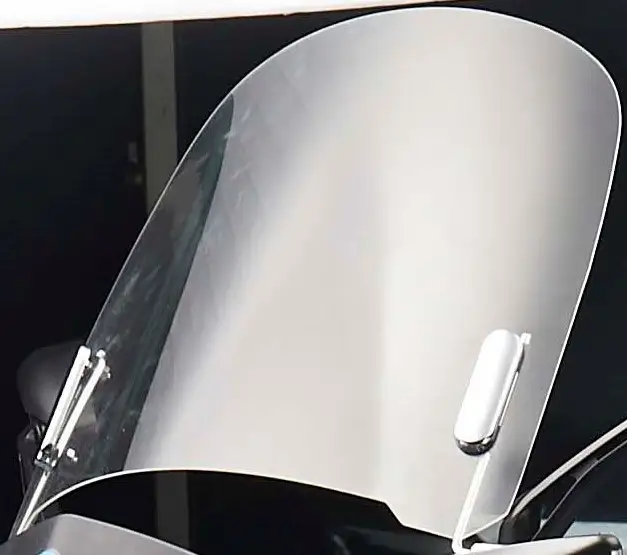

- Optional big-size wind-shield gives the rider more protection on gravel/ sandy roads or in cold weather.
Technical specifications：
| TECHNICAL SPECS OF BWS IV 125 (150) | ||
| Ref. No. | Items | Specs |
| 1 | Model | BWS IV 125 (150) |
| 2 | Dimension (L×W×H)(mm): | 1982×715×1145 |
| 3 | Wheelbase (mm): | 1375 |
| 4 | Ground Clearance (mm): | 240 |
| 5 | Engine Type: | GY6 type, air-cooled, single cylinder, 4-stroke |
| 6 | Displacement (cc): | 124cc (149cc) |
| 7 | Start Method: | Electric/Kick Start |
| 8 | Max Power (KW/rpm): | 5.4KW/7500r/min (6.5KW/8000r/min) |
| 9 | Max Torque (N.m/rpm): | 7.5N.m/5000r/min (9.5N.m/6000r/min) |
| 10 | Max Speed (km/h) | ≧85 (≧90) |
| 11 | Net Weight (KG): | 101 |
| 12 | Max Payload Mass (KG): | 150 |
| 13 | Brake types (FR/RR) | Disc/ Drum |
| 14 | Tire Type (FR/RR): | 130/60-13; 130/60-13 |
| 15 | Ignition: | CDI |
| 16 | Fuel Tank Capacity (L): | 6 |
| 17 | Container Loading Capacity: | 84 units/40ft HQ (SKD packing) |
Built For
If your work is city errands and delivery runs, the BWS IV is the right tool. What stands out most is the verticle double led headlights and optional mechanical/ digital meter.
Key Specifications
The BWS IV’s full numbers — engine, power, dimensions and packing — are all in the table above.
