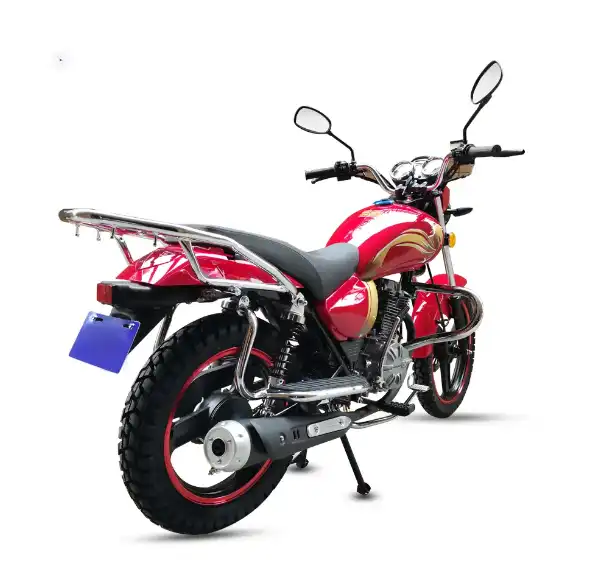

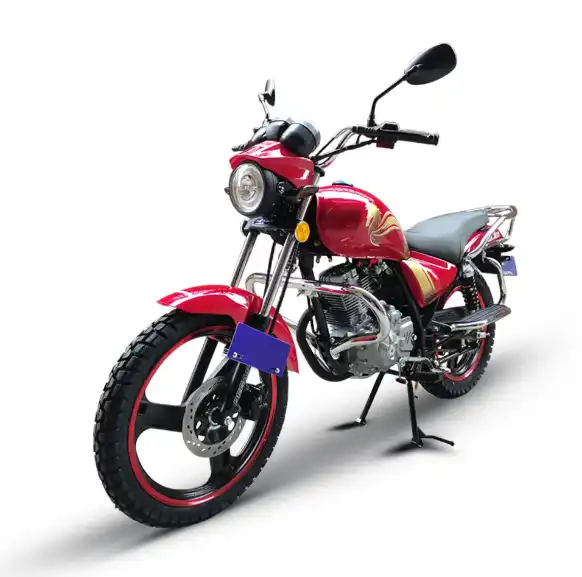

Chopper with Big Footrests PHANTOM 150/200
Street motorbike light chopper PHANTOM with 150/200cc CG engine, upgraded from TIGER150 (200) model – with digital meter, LED headlight, taillight and turning signals, colored alloy wheel rims, disc/drum brakes, big carrier with footrests. Optional features: Small rear carrier, normal lights, mechanic meter, front bumper, USB, MP3, etc.
Description
Product detailed pictures
Product advantages:

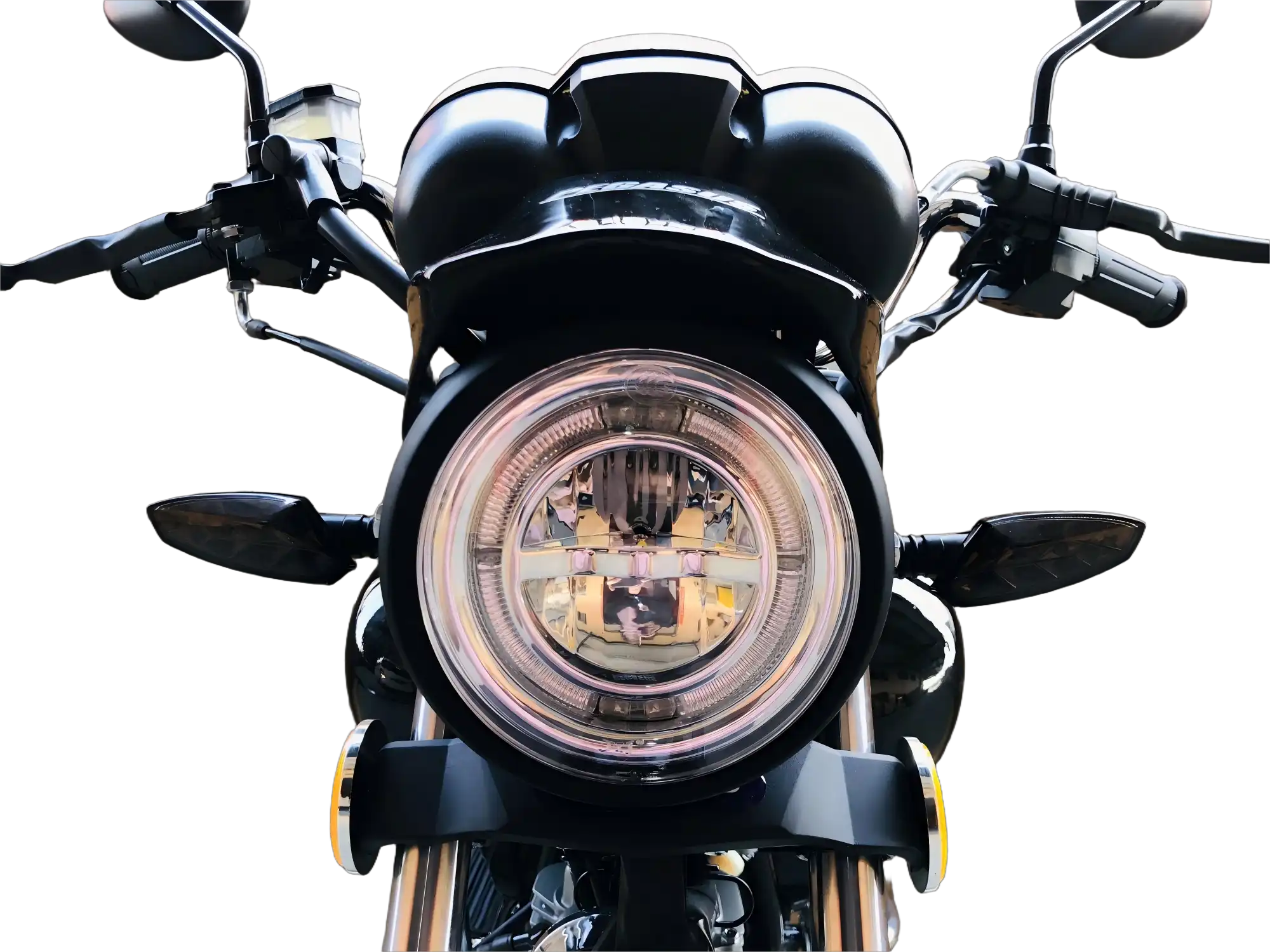

- Bright LED Headlight: The illumination is more centralized, ensures the safety of your riding.
- LED taillight & turning signals: Beautiful and eye-catching LED taillight and turning signals make the bike more exquisite.

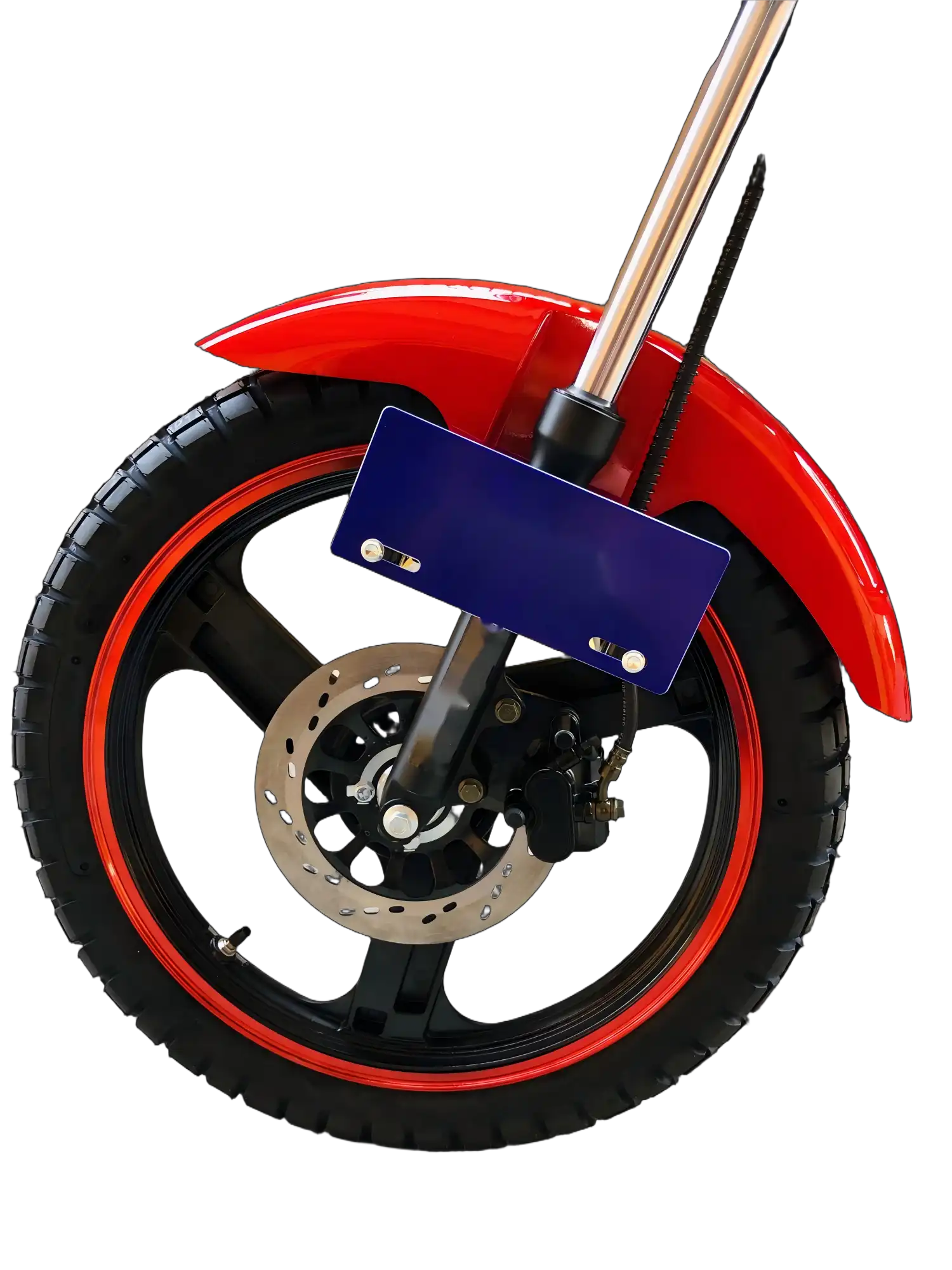

- Alloy wheels: Sporty alloy wheel rims with colored trims matching with the motorcycle bodies makes the bike a spotlight in the street.

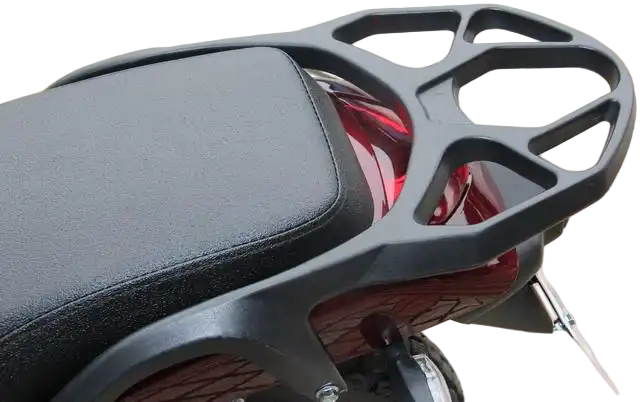

- Nylon rear carrier: Nylon rear carrieris more flexible but strong:
- Brakes: Front disc and rear drum brakes make your ride more stable and safer.

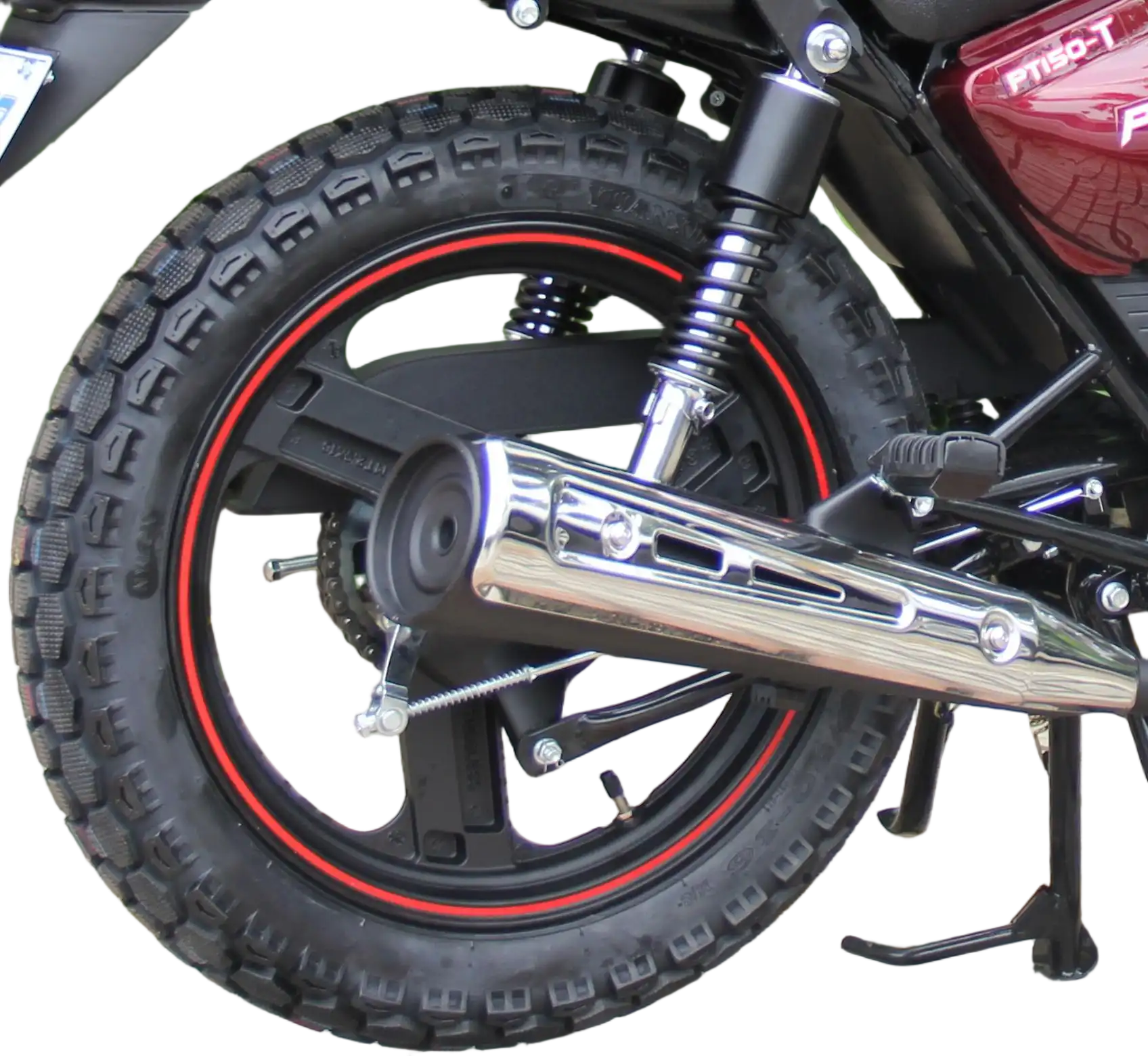

- Steel muffler with heat protector : Steel muffler with heat protectormakes your bike more stronger and safer.
Technical Parameter：
| TECHNICAL SPECS OF PHANTOM | ||
| Ref. No. | Items | Specs |
| 1 | Model | PHANTOM |
| 2 | Dimension (L*W*H)(mm): | 2040×780×1060 |
| 3 | Wheel Base (mm): | 1240 |
| 4 | Ground Clearance (mm): | 245 |

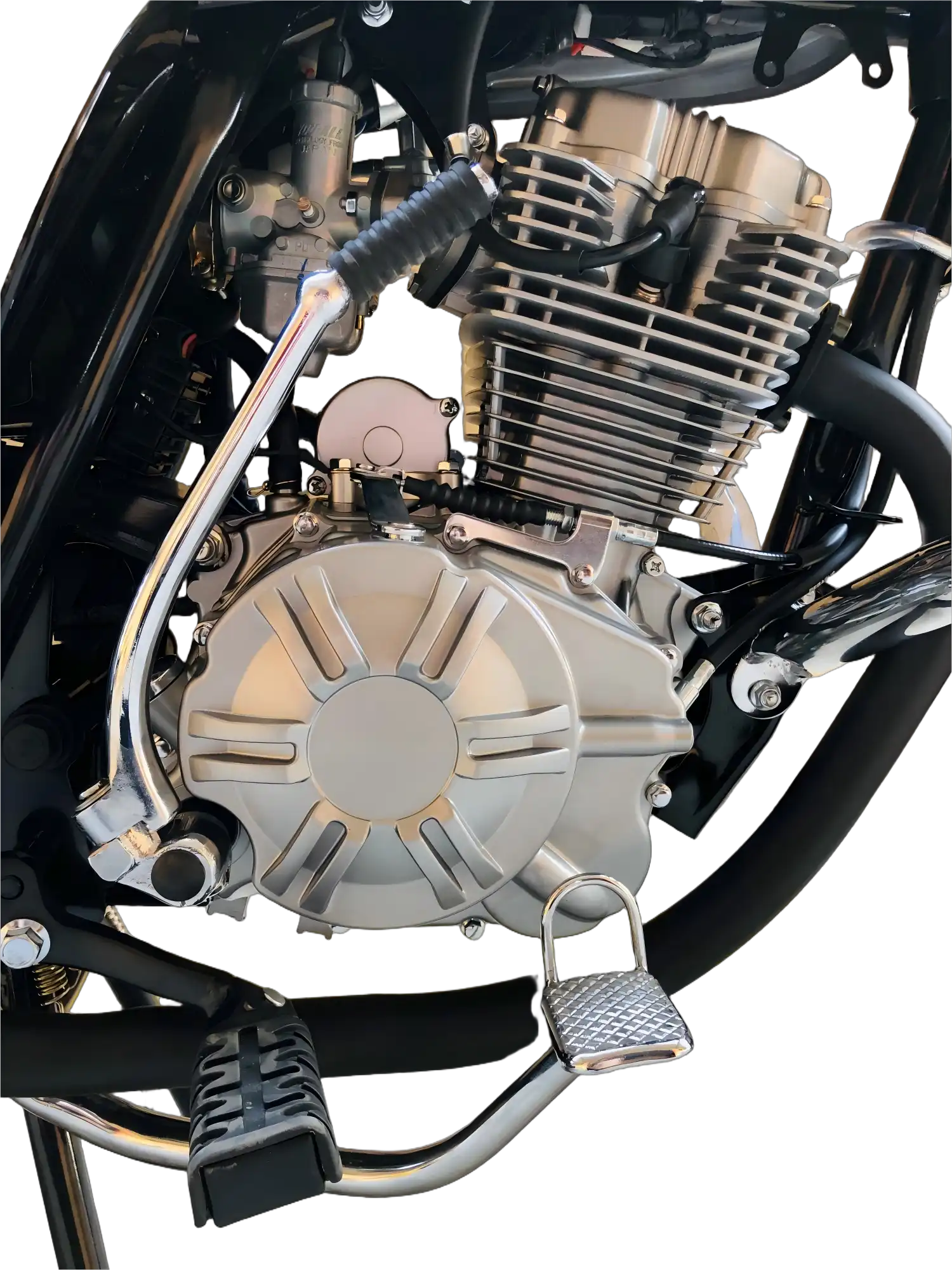

| 5 | Engine Type: | Air-cooled, single cylinder, 4-stroke |
| 6 | Displacement (cc): | 149cc |
| 7 | Start Method: | Electric/Kick Start |
| 8 | Max Power (KW/rpm): | 8.5KW/8500r/min;10.5KW/8500r/min |
| 9 | Max Torque (N.m/rpm): | 9.8N.m/7500r/min;13.5N.m/7500r/min |
| 10 | Max Speed (km/h) | ≧90; ≧95; ≧100 |
| 11 | Net Weight (KG): | 120 |
| 12 | Max Payload Mass (KG): | 150 |
| 13 | Brake types (FR/RR) | Disc/ Drum |
| 14 | Tire Type (FR/RR): | 2.75-18; 110/90-16 |
| 15 | Ignition: | CDI |
| 16 | Fuel Tank Capacity (L): | 12 |
| 17 | Container Loading Capacity: | 105 units/40ft HQ (SKD packing)
190 units/40ft HQ (CKD packing) |
