CROSSER – HONDA-Inspired Enduro Motorbike
Enduro type motorbike model CROSSER inspired by HONDA NXR, new generation of CROSSER model, with 150/200cc/250cc OHV engine. Upside-down front shocks, front and rear disc brakes, rear mono-shock, digital speedometer. Optional features: Rear drum brake, normal front shocks, rear gas mono-shock, remote control, alarm, MP3, etc.
描述
Product detailed pictures
Product advantages:

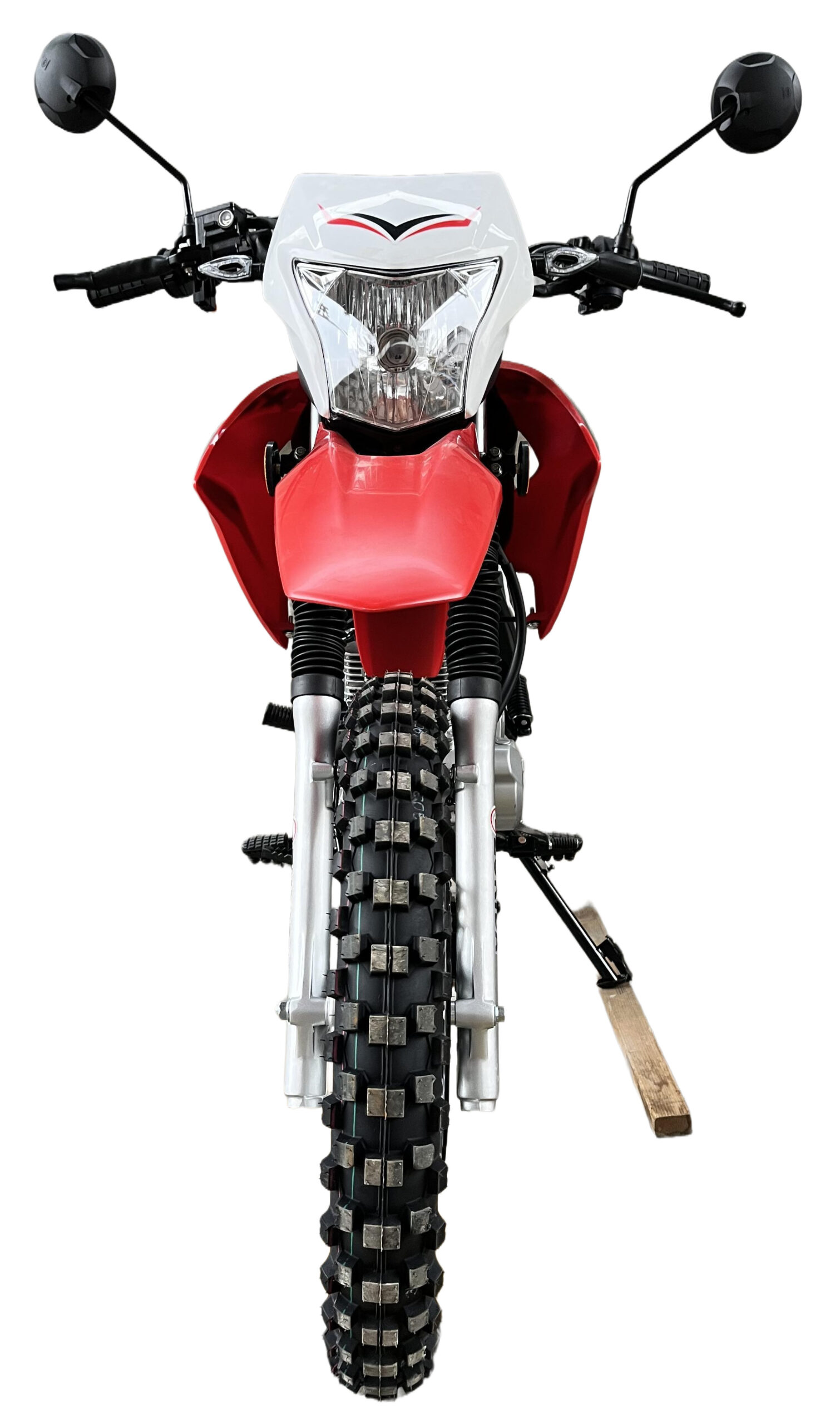

- Headlight: HONDA family style headlight is widely recognized by HONDA fans.

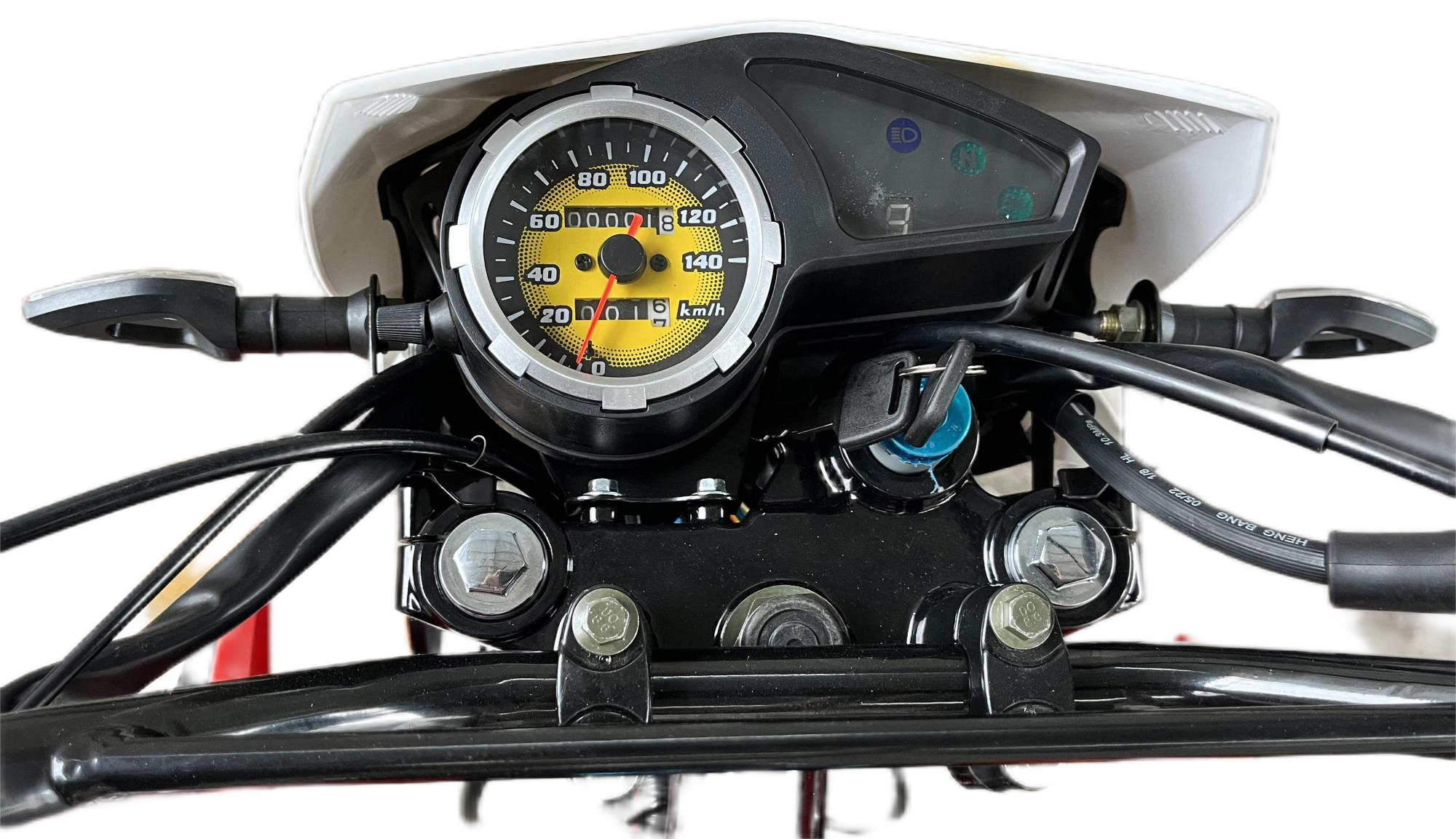

- Digital speedmeter: Delicate digital meter shows the rider accurate riding data, the LCD dashboard displays clearly even under the strong sunshine.

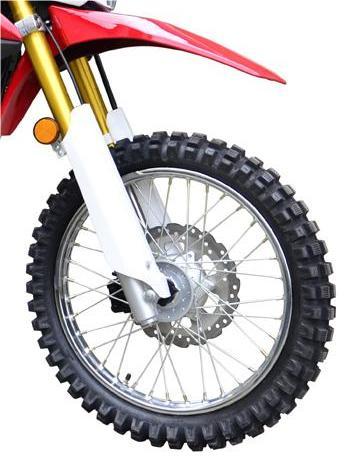

- Upside-down front shocks: The upside-down front shock absorbers and rear nitrogen mono-shock makes you hardly feel any vibration, which greatly increases your riding comfort.

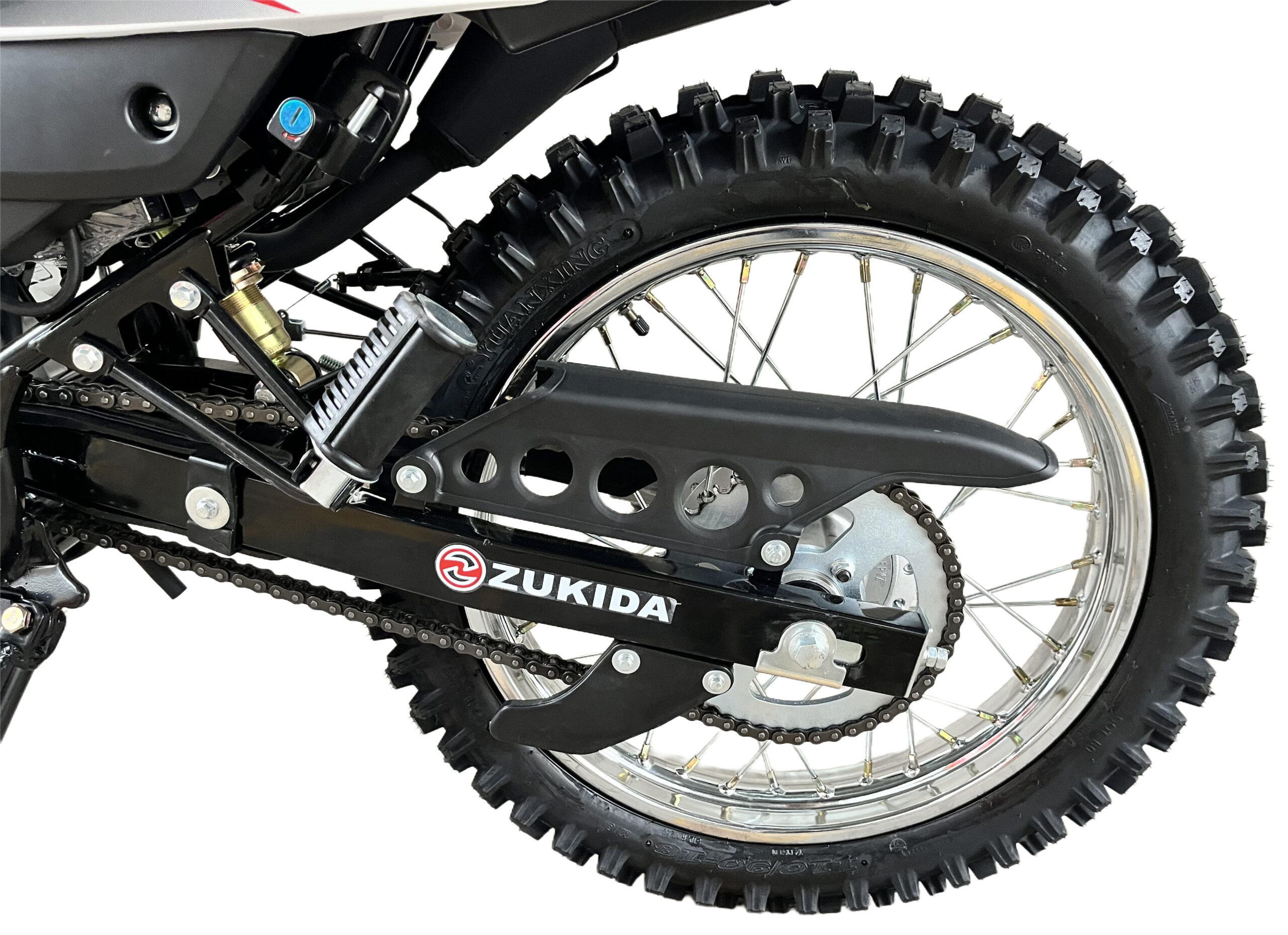

- Front and rear disc brakes: The disc/disc brakes make the vehicle more stable and safer.
Technical Parameter：
| TECHNICAL SPECS OF NEW CROSSER150/200/250 | ||
| Ref. No. | Items | Specs |
| 1 | Model | New CROSSER |
| 2 | Dimension (L*W*H, mm): | 2050×850×1150 |
| 3 | Wheel Base (mm): | 1350 |
| 4 | Ground Clearance (mm): | 260 |
| 5 | Engine Type: | Air-cooled, single cylinder, 4-stroke |
| 6 | Displacement (cc): | 196cc, 223cc |
| 7 | Start Method: | Electric/Kick Start |
| 8 | Max Power (KW/rpm): | 8.5KW/8500r/min;10.5KW/8500r/min; 14.5KW/8500r/min |
| 9 | Max Torque (N.m/rpm): | 10.5N.m/7500r/min;13.5N.m/7500r/min; 16.5N.M/8500r/min |
| 10 | Max Speed (km/h) | ≧95, ≧105, ≧115 |
| 11 | Net Weight (KG): | 136 |
| 12 | Max Payload Mass (KG): | 150 |
| 13 | Brake types (FR/RR) | Disc/ Disc |
| 14 | Tire Type (FR/RR): | 90/100-21; 4.60-19 |
| 15 | Ignition: | CDI |
| 16 | Fuel Tank Capacity (L): | 9 |
| 17 | Container Loading Capacity: | 32 units/20’ (CKD packing)
96 units/40ft HQ (SKD packing) |
Built For
If your work is off-road and trail work, the CROSSER is the right tool. What stands out most is the headlight and digital speedmeter.
Key Specifications
The CROSSER’s full numbers — engine, power, dimensions and packing — are all in the table above.
Frequently Asked Questions
What terrain is the CROSSER designed for?
The CROSSER is built for off-road terrain — trails, dirt roads, farm and ranch tracks, and light enduro. For street registration, confirm local lighting and equipment rules with our team.
Is the CROSSER available in SKD or CKD form for local assembly?
Yes. Both SKD and CKD packaging are supported, with several models in a single container. Send your model list and quantities for a container plan and quote.
What after-sales support comes with the CROSSER?
Each order ships with a spare parts, paperwork and an export warranty. Replacement parts can be supplied on a recurring schedule or as a one-time starter kit.
Where can I see the full specifications?
Key figures (engine, power, torque, dimensions, packing) are in the table above..
