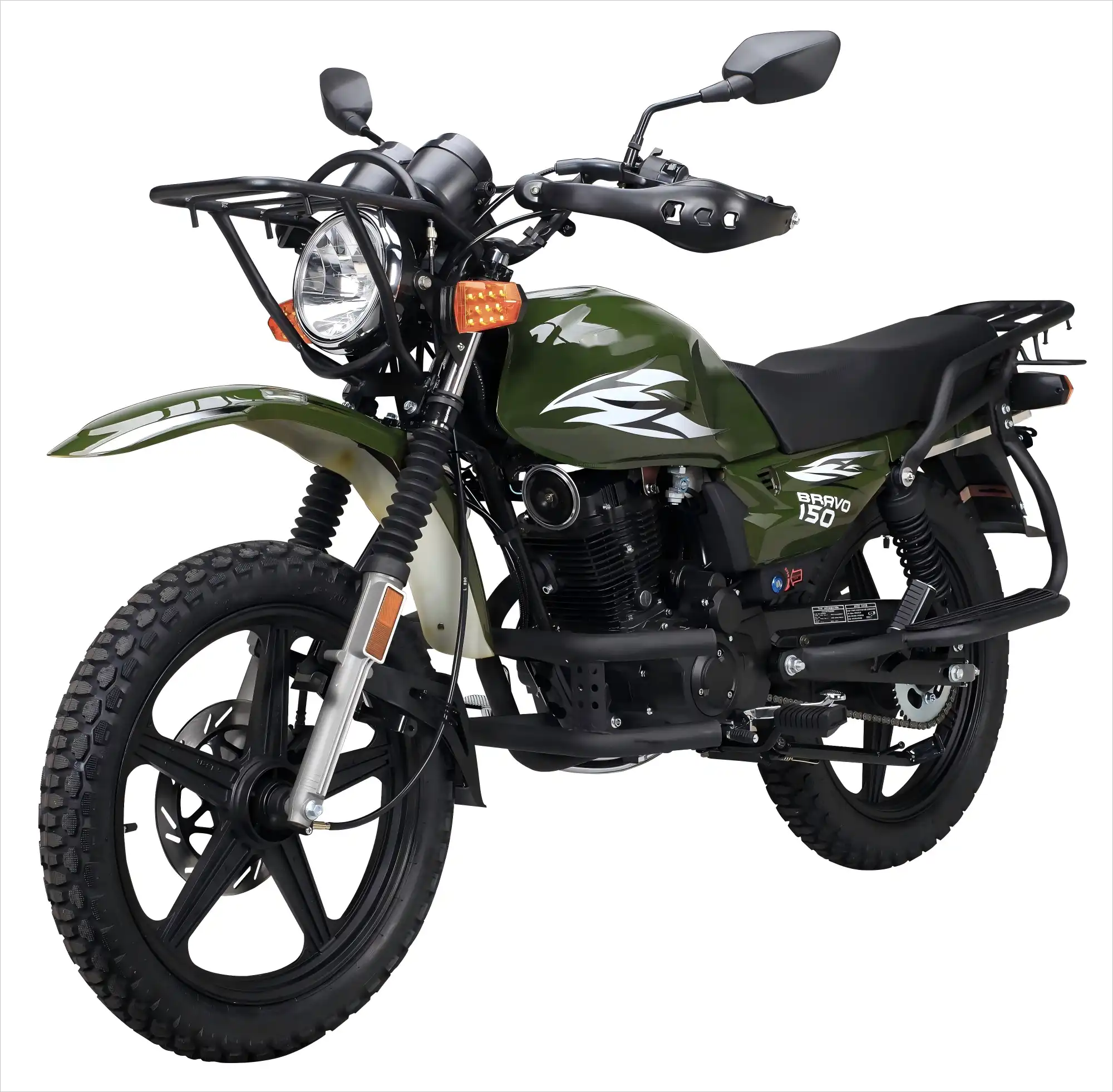

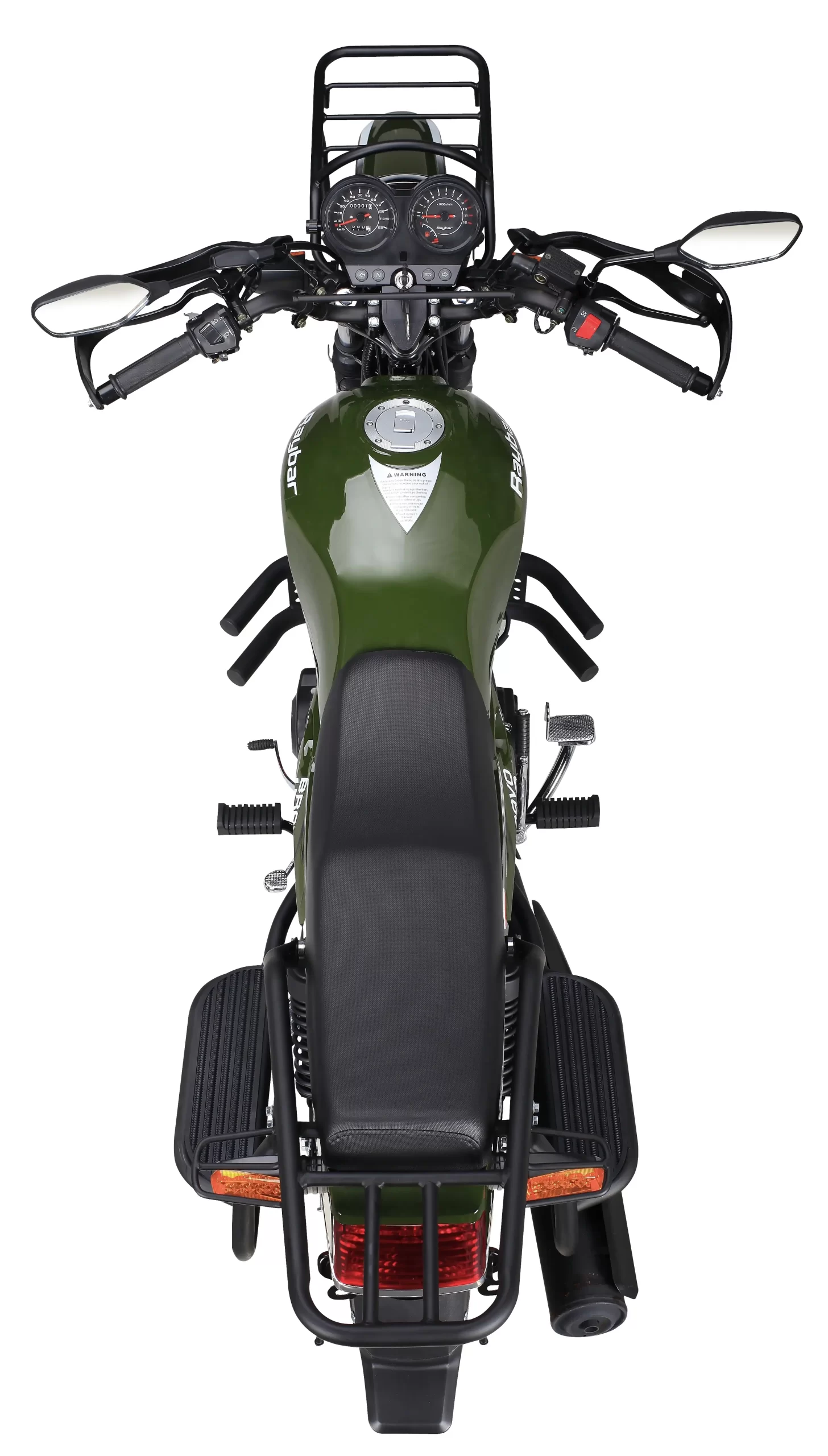

Street motorbike BRAVO 125/150/200
Street motorbike BRAVO with 125/150/200cc CG engine, inspired by HONDA CGL model, one of the most classical models in motorcycle industry. With alloy wheels, disc/drum brakes, colored rear shocks. Optional features: Small rear carrier, front disc brake, front bumper with mud guard and deco-lights, seat with extension cushion, MP3, etc.
Technical Parameter：
| TECHNICAL SPECS OF BRAVO 125/150/200 | ||
| Ref. No. | Items | Specs |
| 1 | Model | BRAVO |
| 2 | Dimension (L*W*H)(mm): | 2080×795×1062 |
| 3 | Wheel Base (mm): | 1230 |
| 4 | Ground Clearance (mm): | 280 |
| 5 | Engine Type: | Air-cooled, single cylinder, 4-stroke |
| 6 | Displacement (cc): | 124/149/189cc |
| 7 | Start Method: | Electric/Kick Start |
| 8 | Max Power (KW/rpm): | 8.0KW/8500rpm; 8.2KW/8500rpm; 10.5KW/8500rpm |
| 9 | Max Torque (N.m/rpm): | 8.5N.m/7500rpm; 9.5N.m/7500rpm; 13.5N.m/7500rpm |
| 10 | Max Speed (km/h) | ≧85Km/h; ≧90Km/h; ≧95Km/h |
| 11 | Net Weight (KG): | 115 |
| 12 | Max Payload Mass (KG): | 124;149;196 |
| 13 | Brake types (FR/RR) | Disc/ Drum |
| 14 | Tire Type (FR/RR): | 2.75-18; 3.25-18 |
| 15 | Ignition: | CDI |
| 16 | Fuel Tank Capacity (L): | 2.2L/ 100km; 2.4L/ 100km; 2.8L/ 100km |
| 17 | Container Loading Capacity: | SKD packing: 32 pcs/ 20’GP; 105 pcs/40’HQ
CKD packing: 60 sets/ 20’GP; 180 sets/40’HQ |
Product advantages:
- Signature mechanical speedometer, square headlight, taillight and turning signals: Favorite of HONDA fans.
- Optional deco-lights on front bumper: Adds more attraction to the motorbike.
- Alloy wheel rims: Makes the bike stronger and endurable.
- Front Disc and rear drum brakes:Ensures the stability and security of your ride.
- Colored rear shocks: Rear shock absorbers with the same colors as motorbike body color, makes the bike more eye-catching.
- Optional 4 rear shock absorbers: Makes the bike more outstanding in heavy-duty carrying.
- Engine under protector: Prevents your engine from hitting and scratching when passing rough road conditions.
- Big rear footrests: Ensures the comfort of the passenger.
Our services:
- As one of the leading manufacturers and exporters of motorcycle products in South China, we engage in the research and development, manufacturing, testing and all motorcycle-related business.
- For all new models we conduct 8000km road test for reliability and durability on different road conditions for each model before launching to the market.
- All parts from top quality suppliers in China.
- 5% sampling inspection for all parts entering to our pre-assembly warehouse.
- 100% test (power, speed, lights, emission, etc.) for each batch after assembly.
- 1 year/10000km warranty for permanent parts (engine, chassis, muffler, carburetor, etc.) of all models.
- OEM/ODM services.
- Spare parts supply for all models.
F & A:
Q: What is the minimum order quantity?
A: The MOQ of this model is 49 units (1*20ft GP)
Q: What is the lead time?
A: First order – approximately 40 days after receiving deposit or confirmed irrevocable L/C;
From 2nd order — approximately 30 days after receiving deposit or confirmed irrevocable L/C.
Q: What are the Packing ways?
A: Usually we provide the following packing ways according to different requirements by buyers from different markets, customized packing ways are negotiable.
(1) SKD – 1. Steel frame + carton (105 units/40’ HQ);
- Plywood box (105 units/40’ HQ);
(2) CKD – 1. Engine in 1 carton, body parts in 1 plywood box (180 sets/40’ HQ);
- Engine in 1 carton, body parts in 1 carton (180sets/40’ HQ)
Q: What are the Payment Terms?
A: We accept 2 payment terms:
- Full T/T— 30% deposit by T/T in advance, the balance by T/T before shipment.
- T/T + L/C— 30% deposit by T/T in advance, the balance by confirmed irrevocable L/C at sight.
