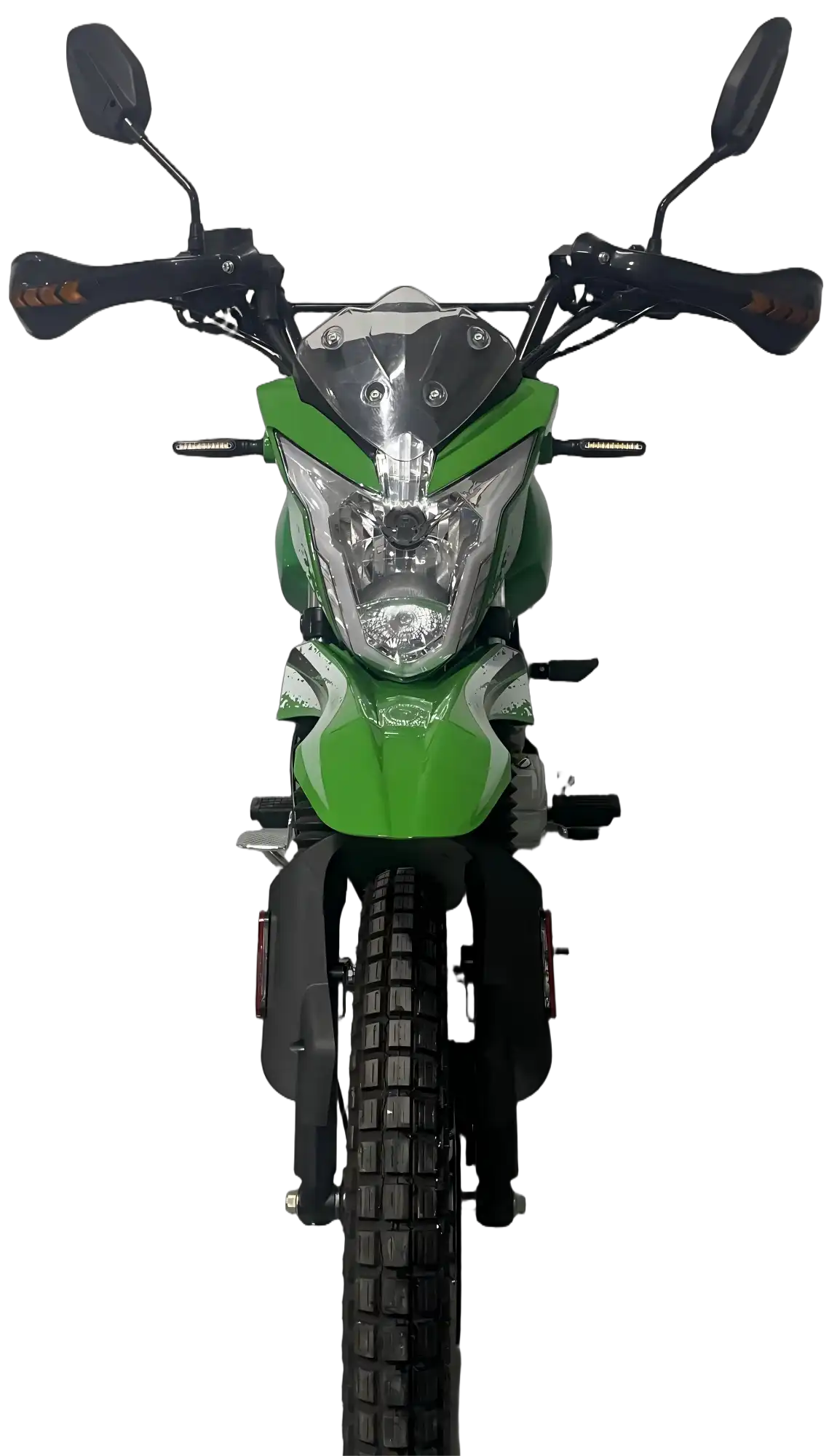

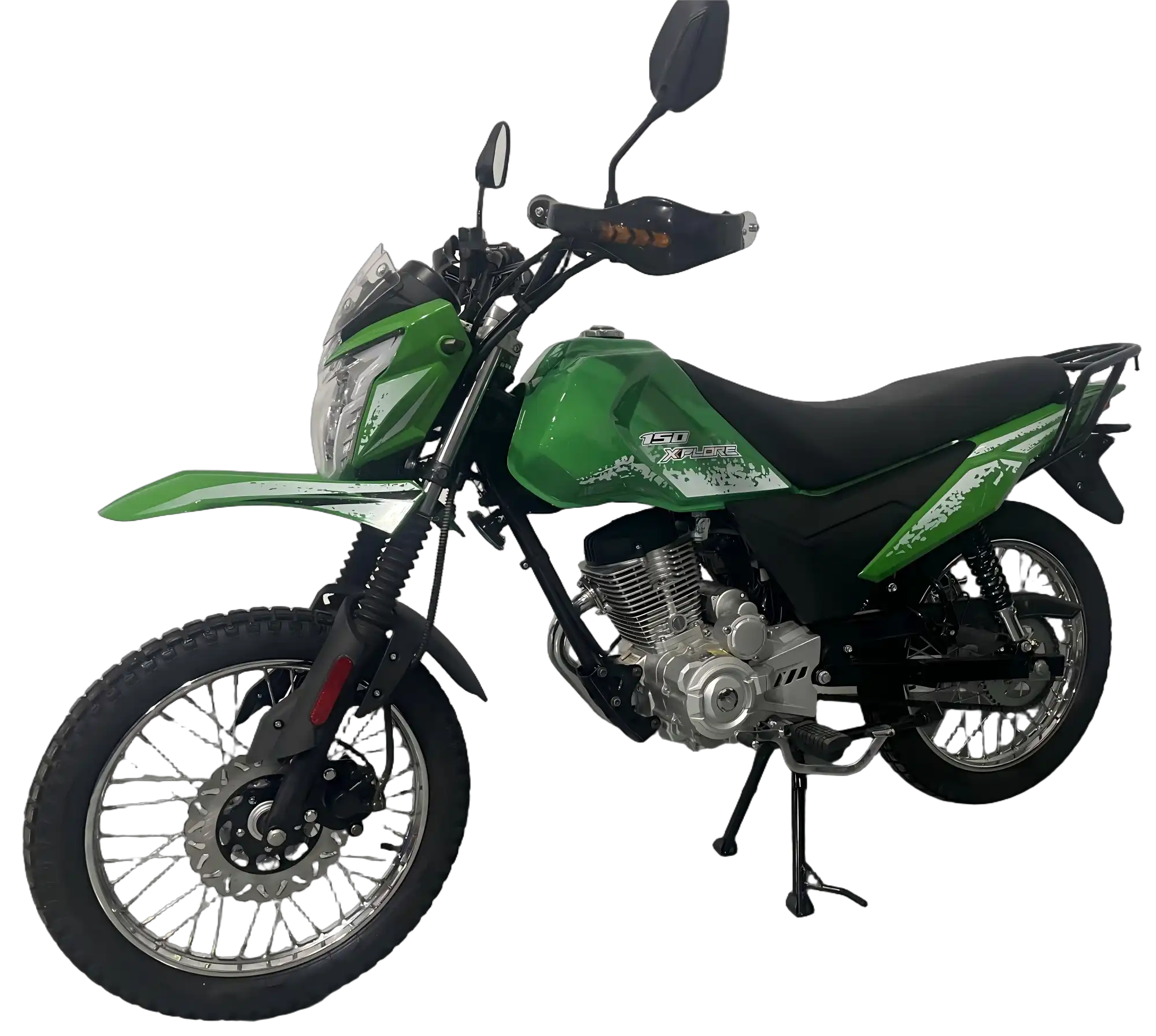

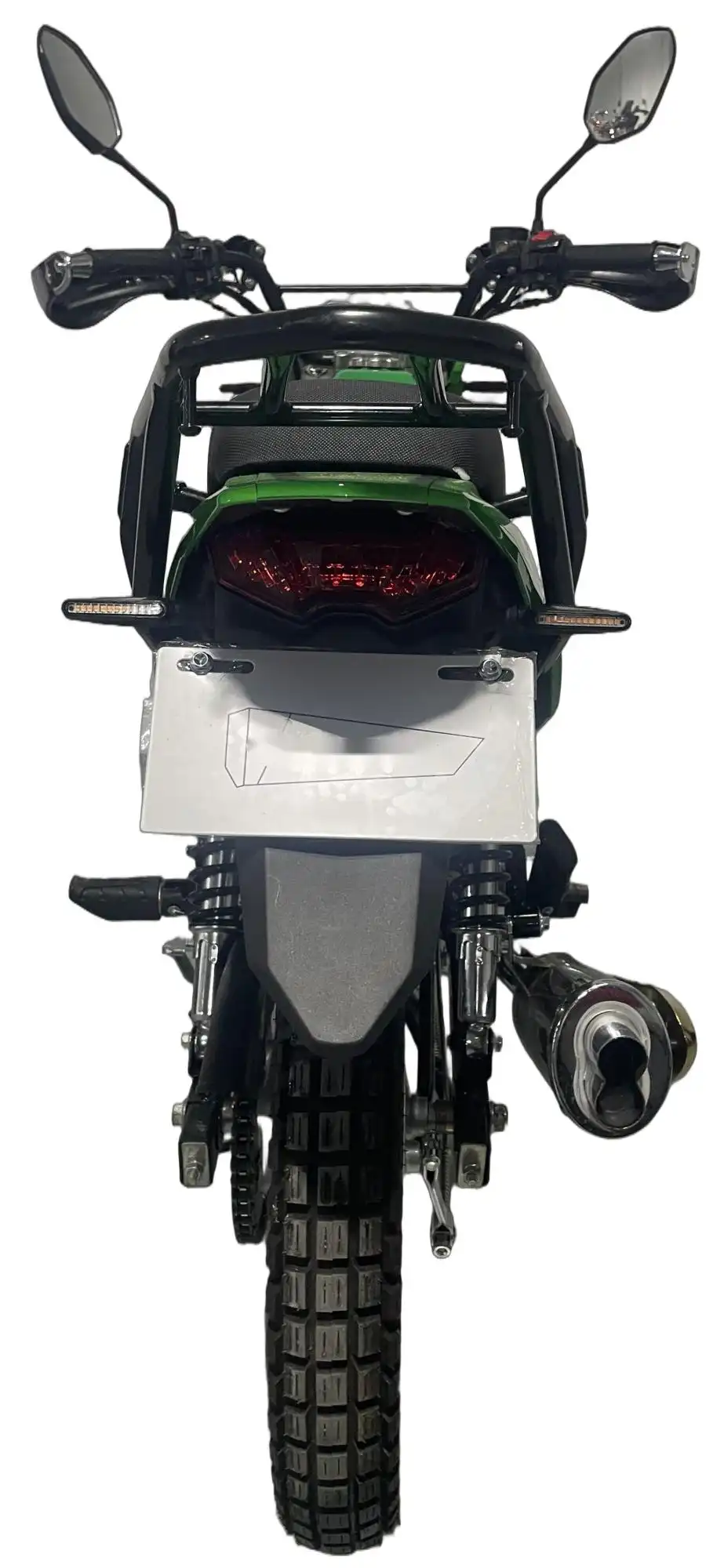

Street motorbike XPLORE 125/150/200
Street motorbike XPLORE with 125/150/200cc CG engine, inspired by HONDA CGL model, one of the most classical models in motorcycle industry. With spoke wheels, drum/drum brakes, colored rear shocks. Optional features: Small rear carrier, front disc brake, front bumper with mud guard and deco-lights, seat with extension cushion, MP3, etc.
Technical Parameter：
| TECHNICAL SPECS OF XPLORE125/ 150/ 200 | ||
| Ref. No. | Items | Specs |
| 1 | Overall dimensions (L×W×H): | 2000×850×1120 (mm) |
| 2 | Wheelbase: | 1350mm |
| 3 | Ground clearance: | 220mm |
| 4 | Seat height: | 830mm |
| 5 | Dry weight: | 115Kg |
| 6 | Max loading capacity: | 150Kg |
| 7 | Brake system (FR/RR): | Disc/drum |
| 8 | Tire sizes (FR; RR): | 2.75-17; 3.00-17 / 2.75-18; 3.00-18 |
| 9 | Fuel tank capacity: | 14.5L |
| 10 | Engine type: | Single-cylinder, air-cooled, 4-stroke |
| 11 | Starting system: | Electric/Kick |
| 12 | Ignition: | CDI |
| 13 | Displacement: | 124cc; 149cc; 196cc |
| 14 | Max power: | 8.0KW/ 8500rpm; 8.2KW/ 8000rpm; 10.0KW/8000rpm |
| 15 | Max torque: | 9.5N.m/ 7500rpm; 9.8N.m/ 7000rpm; 14N.m/6500rpm |
| 16 | Fuel consumption: | 2.2L/ 100km; 2.4L/ 100km; 2.8L/ 100km |
| 17 | Max speed: | ≧85Km/h; ≧90Km/h; ≧105Km/h |
| 18 | Container loading quantity: | SKD packing: 32 pcs/ 20’GP; 105 pcs/40’HQ |
| CKD packing: 60 sets/ 20’GP; 180 sets/40’HQ | ||
Product advantages:
- Signature mechanical speedometer, square headlight, taillight and turning signals: Favorite of HONDA fans.
- Optional deco-lights on front bumper: Adds more attraction to the motorbike.
- Spokewheel rims: Makes the bike stronger and endurable.
- Front and rear drum brakes: Ensures the pricing competitiveness of the motorbike.
- Colored rear shocks: Rear shock absorbers with the same colors as motorbike body color, makes the bike more eye-catching.
- Optional 4 rear shock absorbers: Makes the bike more outstanding in heavy-duty carrying.
- Engine under protector: Prevents your engine from hitting and scratching when passing rough road conditions.
- Big rear footrests: Ensures the comfort of the passenger.
Our services:
- As one of the leading manufacturers and exporters of motorcycle products in South China, we engage in the research and development, manufacturing, testing and all motorcycle-related business.
- For all new models we conduct 8000km road test for reliability and durability on different road conditions for each model before launching to the market.
- All parts from top quality suppliers in China.
- 5% sampling inspection for all parts entering to our pre-assembly warehouse.
- 100% test (power, speed, lights, emission, etc.) for each batch after assembly.
- 1 year/10000km warranty for permanent parts (engine, chassis, muffler, carburetor, etc.) of all models.
- OEM/ODM services.
- Spare parts supply for all models.
F & A:
Q: What is the minimum order quantity?
A: The MOQ of this model is 49 units (1*20ft GP)
Q: What is the lead time?
A: First order – approximately 40 days after receiving deposit or confirmed irrevocable L/C;
From 2nd order — approximately 30 days after receiving deposit or confirmed irrevocable L/C.
Q: What are the Packing ways?
A: Usually we provide the following packing ways according to different requirements by buyers from different markets, customized packing ways are negotiable.
(1) SKD – 1. Steel frame + carton (105 units/40’ HQ);
- Plywood box (105 units/40’ HQ);
(2) CKD – 1. Engine in 1 carton, body parts in 1 plywood box (180 sets/40’ HQ);
- Engine in 1 carton, body parts in 1 carton (180sets/40’ HQ)
Q: What are the Payment Terms?
A: We accept 2 payment terms:
- Full T/T— 30% deposit by T/T in advance, the balance by T/T before shipment.
- T/T + L/C— 30% deposit by T/T in advance, the balance by confirmed irrevocable L/C at sight.
